Water Pump: Description and Operation
WATER PUMPDESCRIPTION

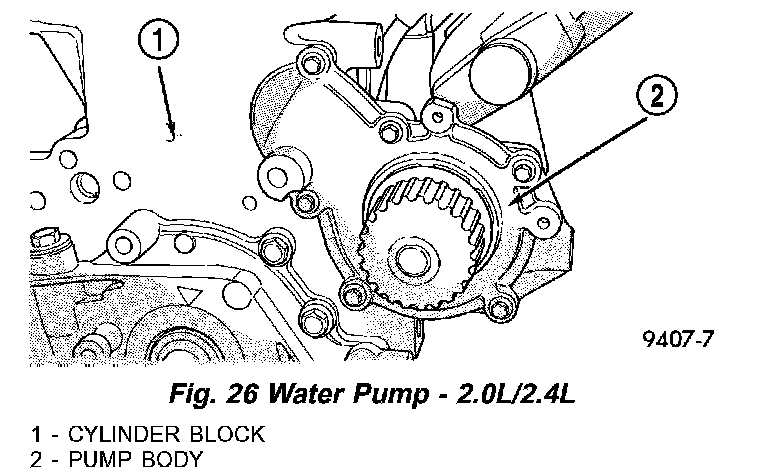

Fig. 26:
The water pump has a diecast aluminum body and housing with a stamped steel impeller. The water pump bolts directly to the block (Fig. 26) and is driven by the timing belt. Cylinder block to water pump sealing is provided by a rubber O-ring.
