Engine Diagnosis - Mechanical

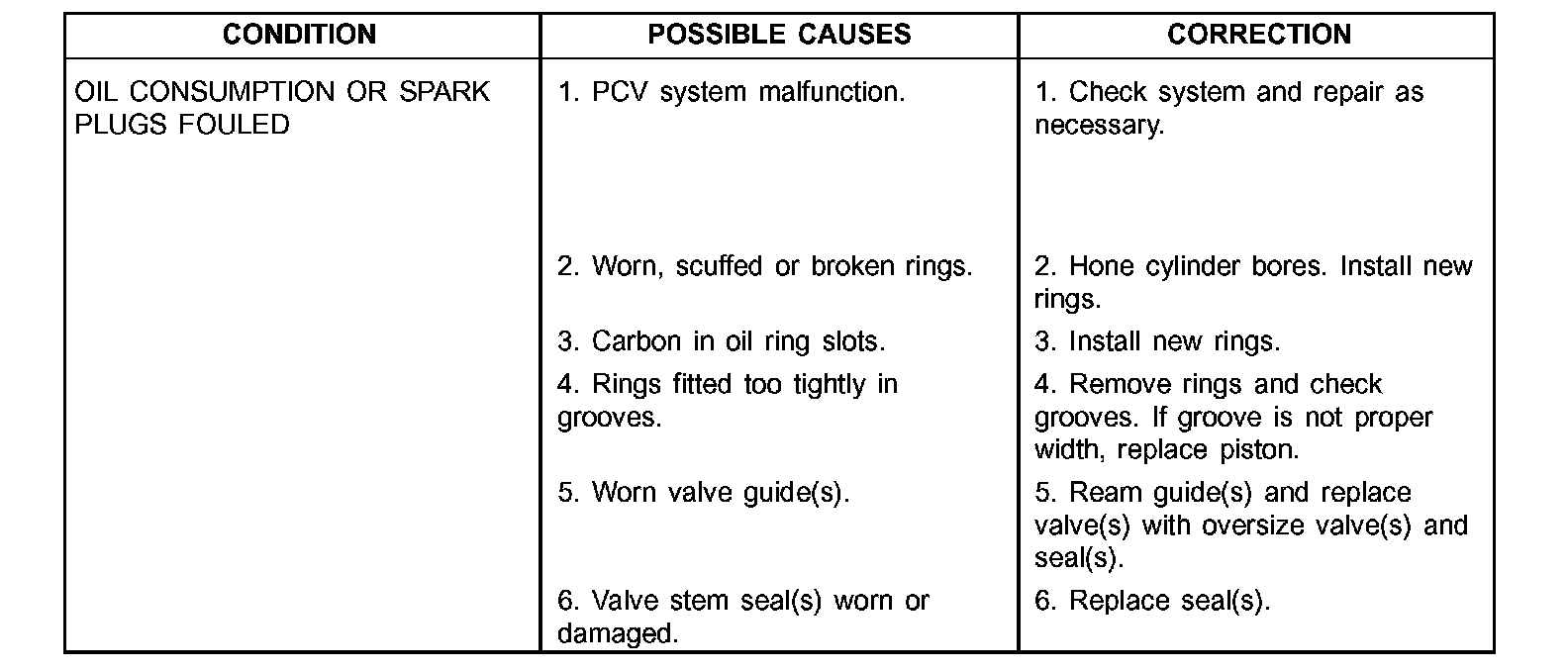

ENGINE DIAGNOSIS - MECHANICAL (part 1):

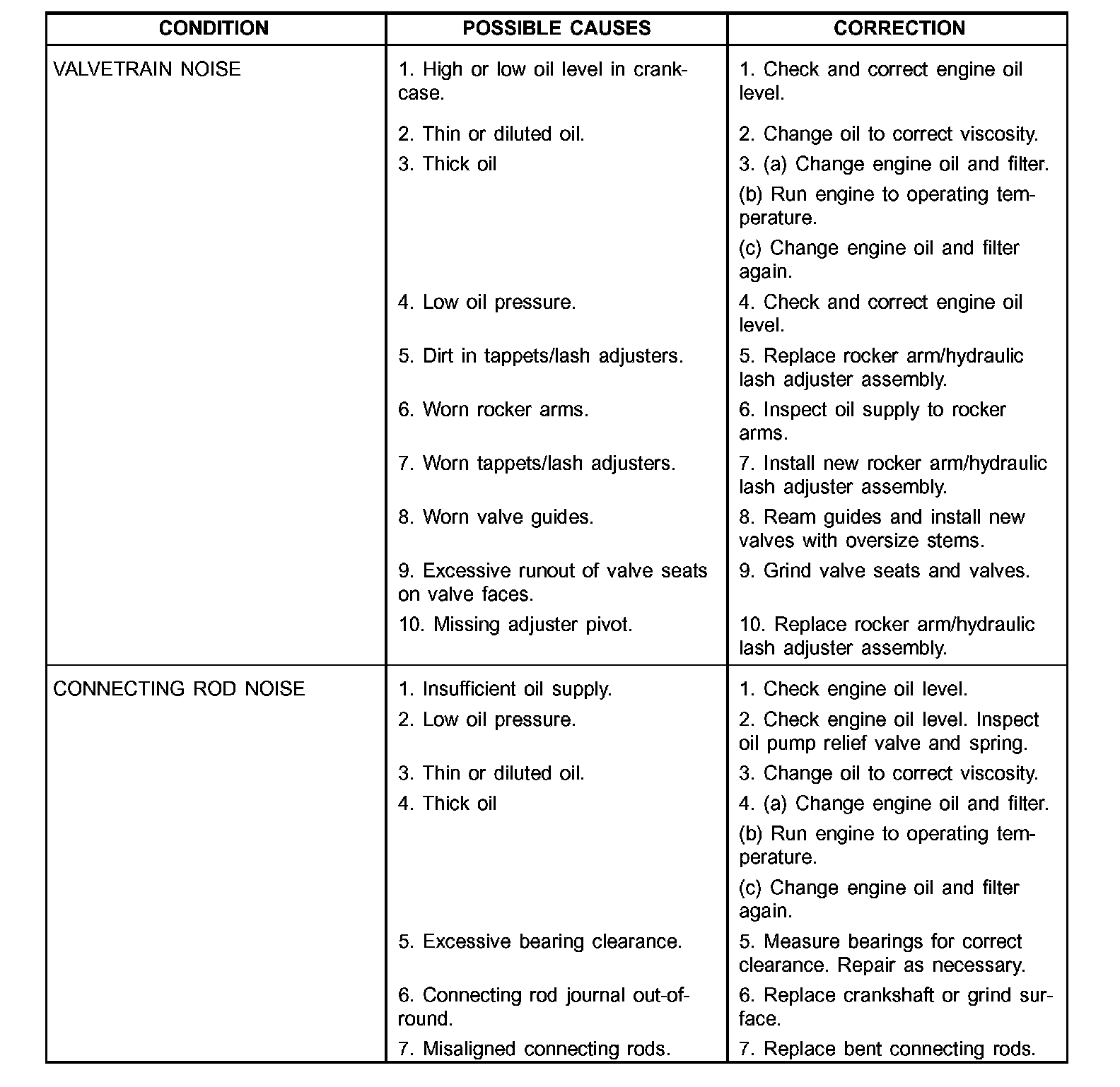

ENGINE DIAGNOSIS - MECHANICAL (part 2):

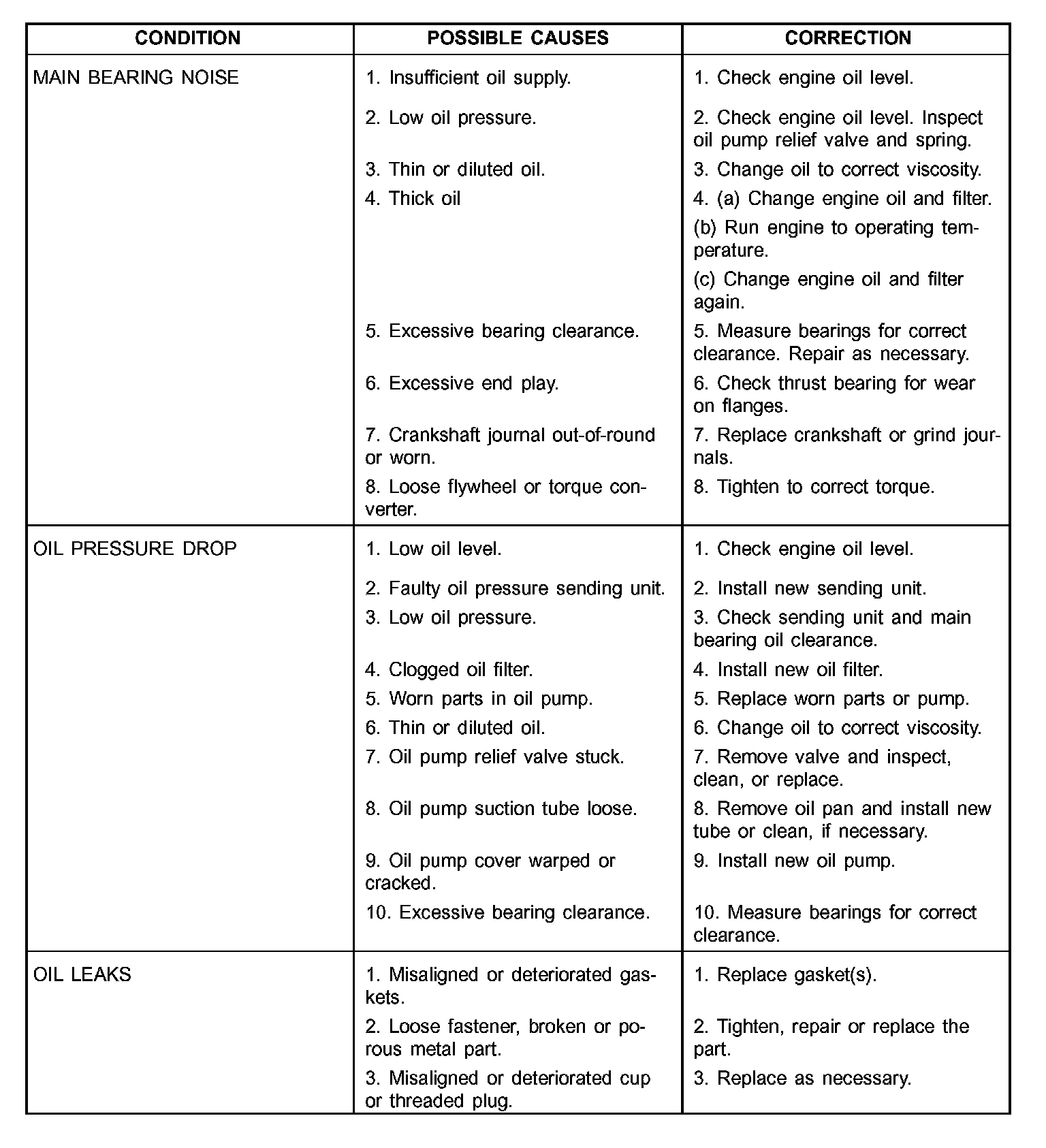

ENGINE DIAGNOSIS - MECHANICAL (part 3):
