Seats

PLEASE NOTE: Some diagrams may appear to be missing because of gaps in the number sequences. These "gaps" are actually for diagrams that do not apply to the vehicle model selected.

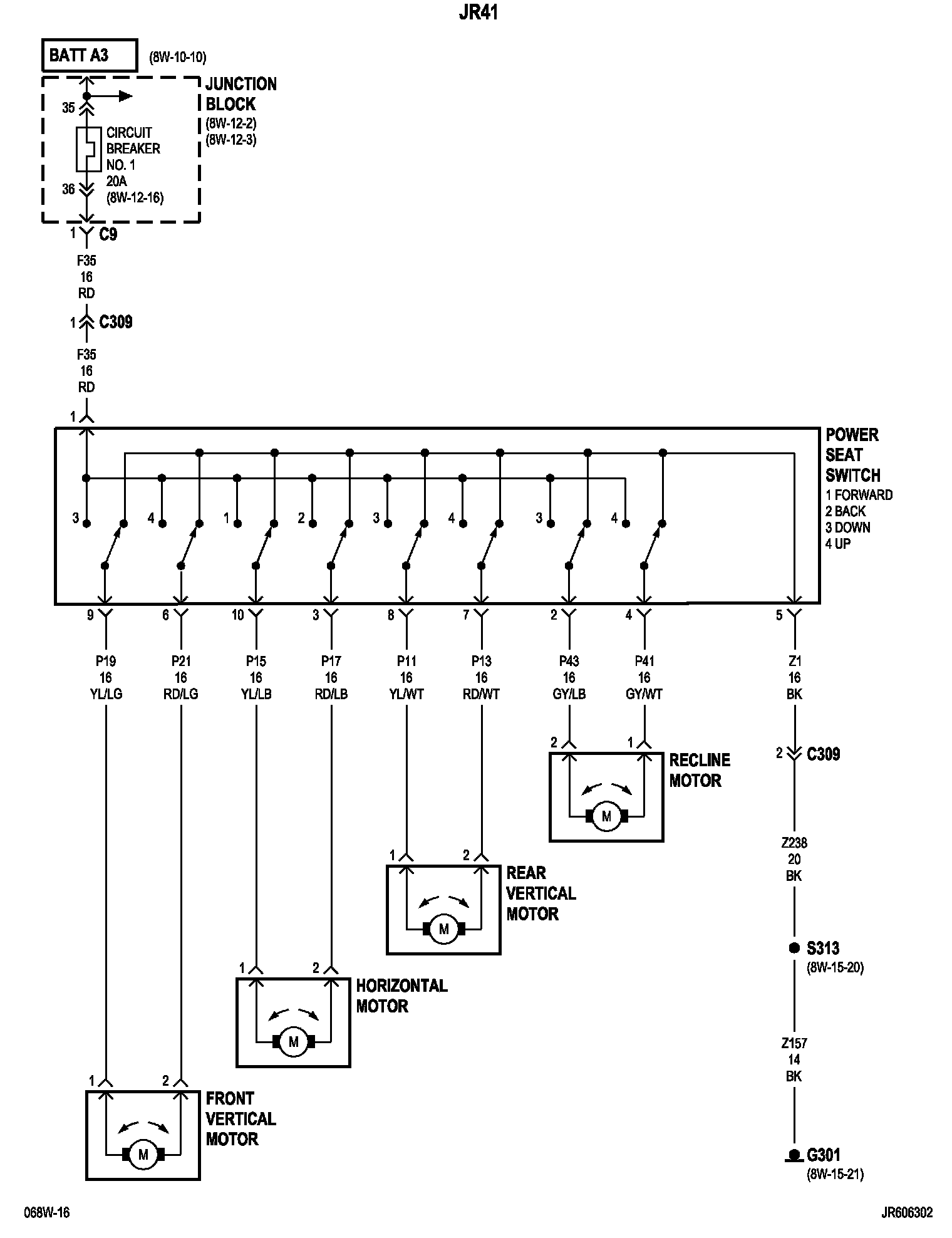

8w-63-2 (JR41):

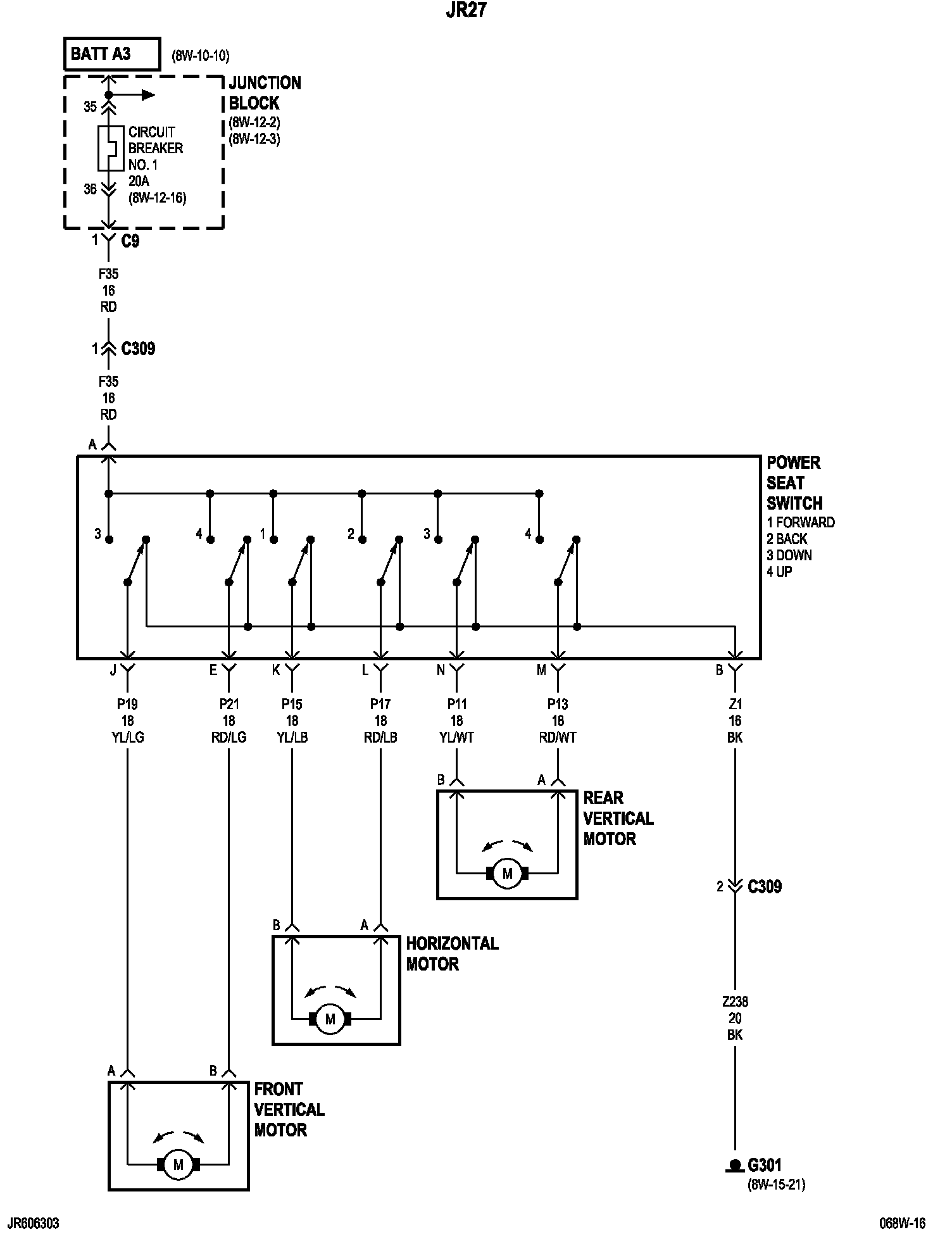

8w-63-3 (JR27):

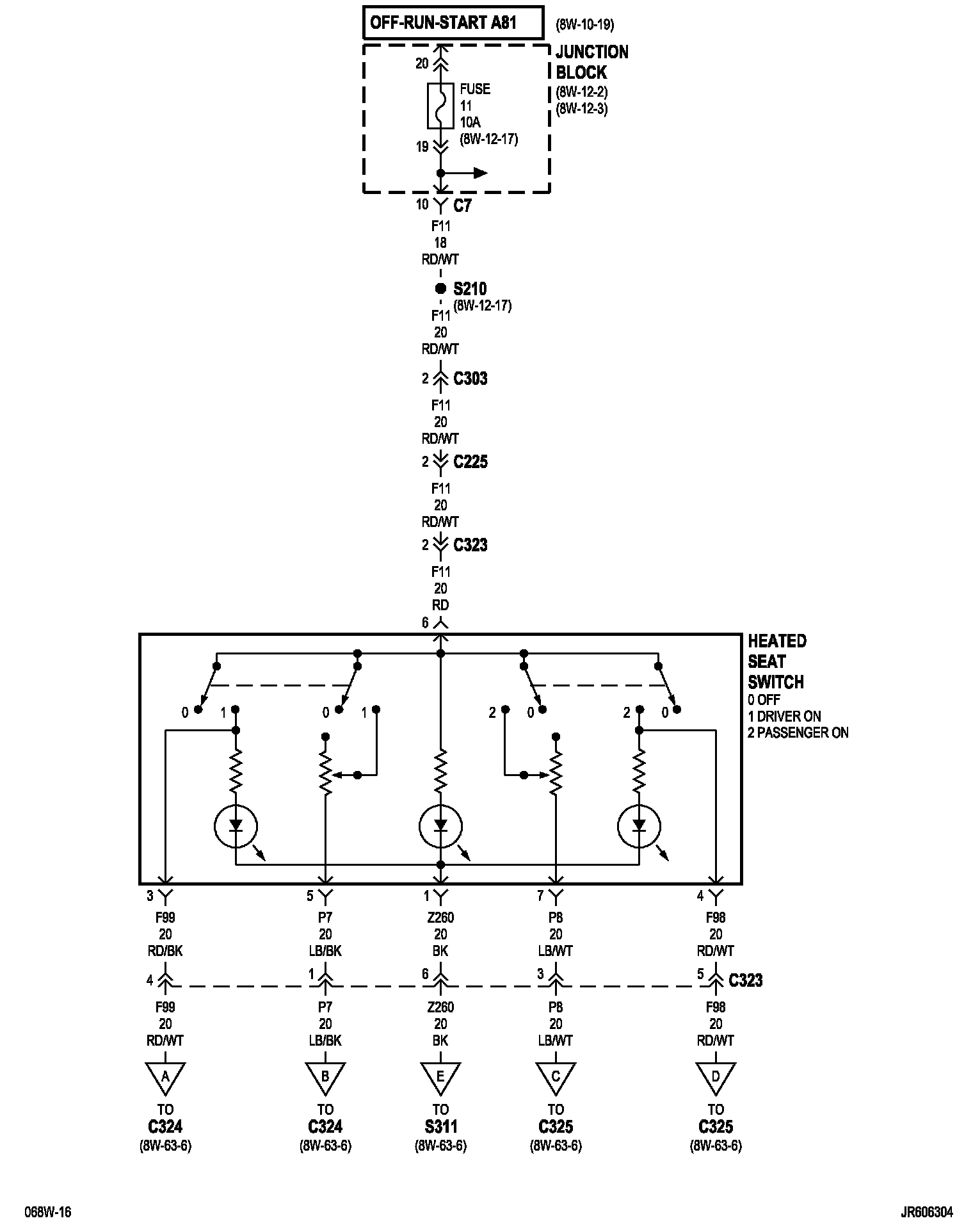

8w-63-4 (Heated Seat):

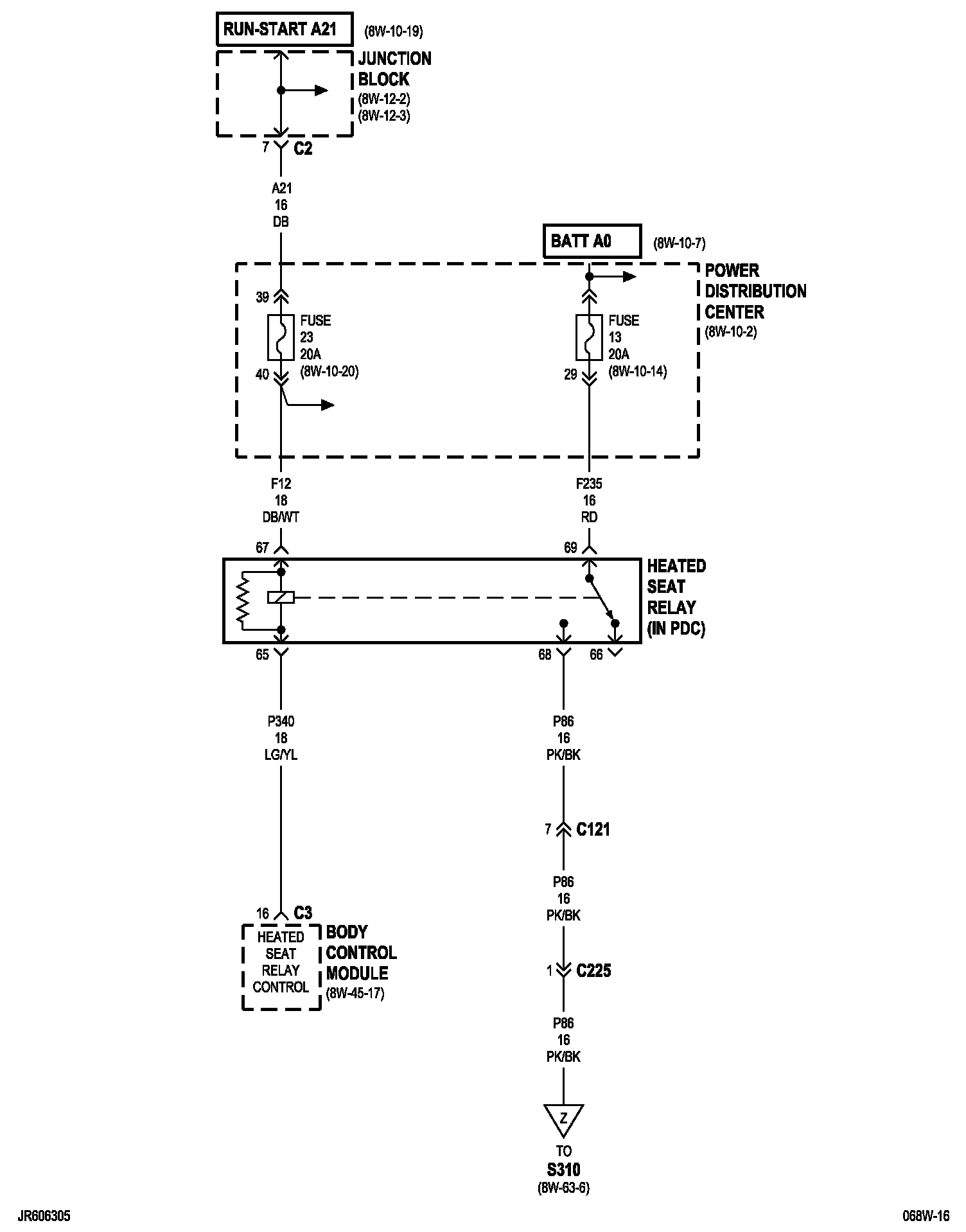

8w-63-5 (Heated Seat):

8w-63-6 (Heated Seat):

Other Diagrams: Other diagrams referred to by number (i.e 8W-70-2, etc.) within these diagrams can be found at the vehicle level under Diagrams by Number. Diagrams By Number
