Home >> Chrysler >> 2006 >> Sebring Convertible L4-2.4L VIN X >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> System Schematics

System Schematics

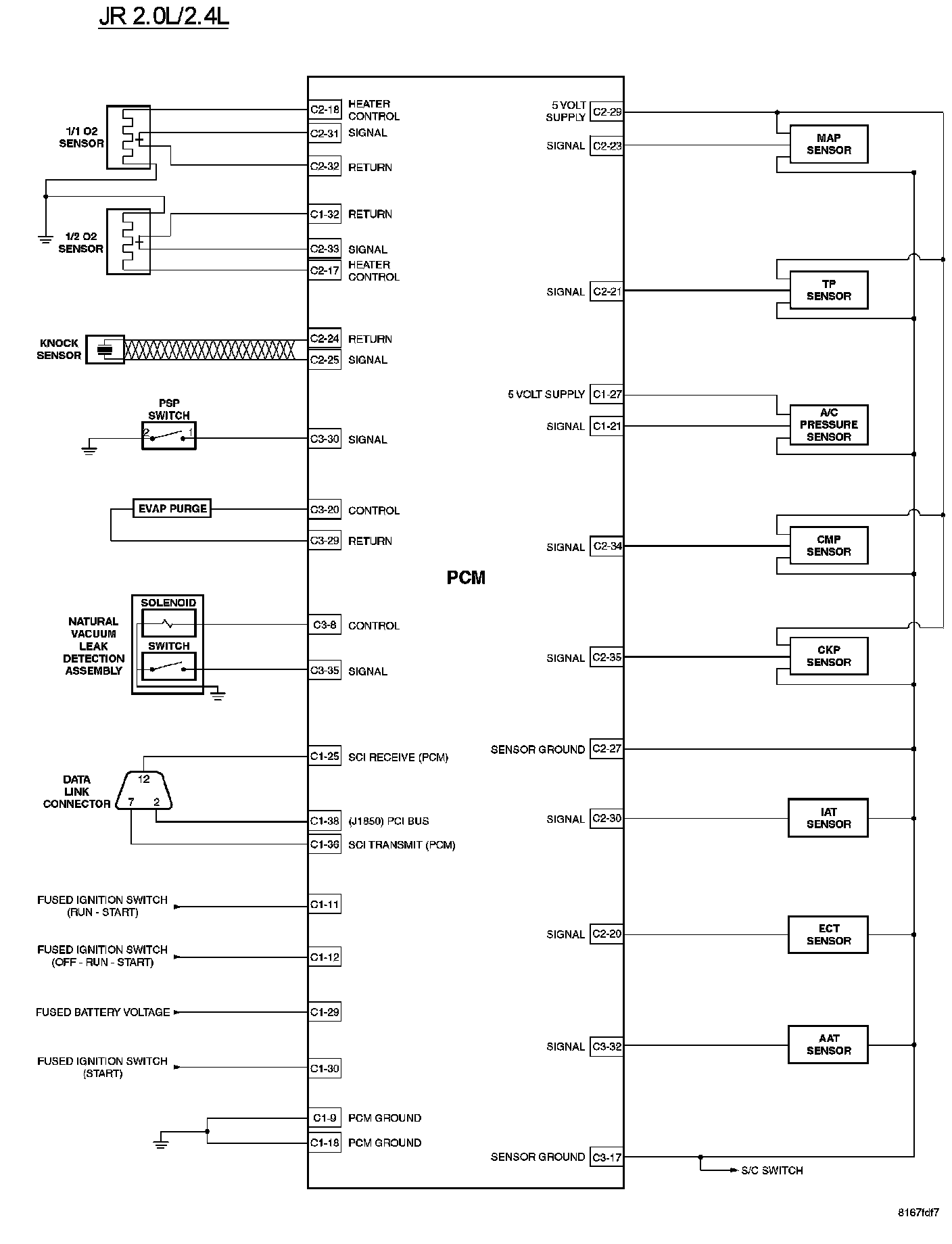

JR 2.0L/2.4L:

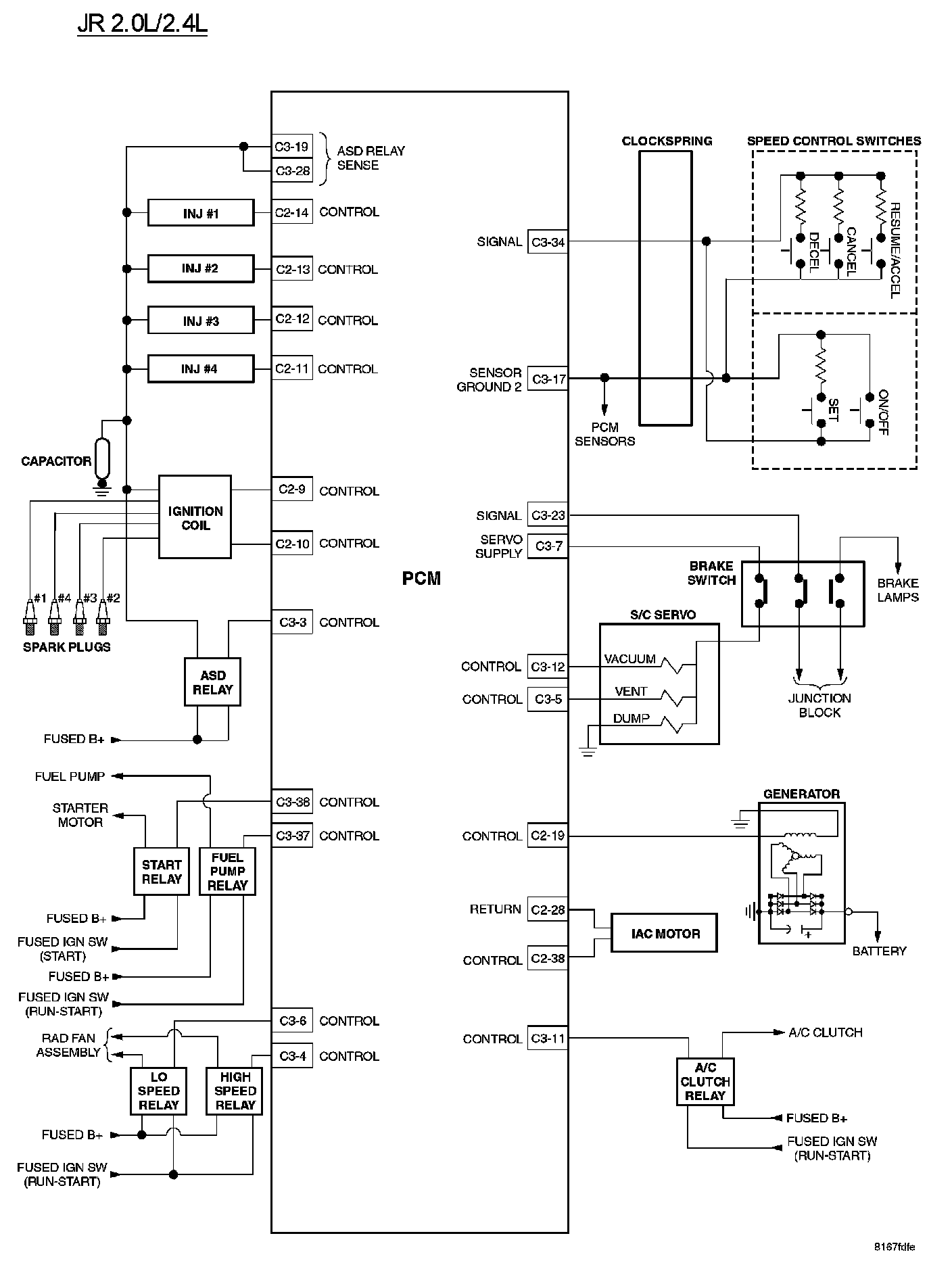

JR 2.0L/2.4L:
