G203

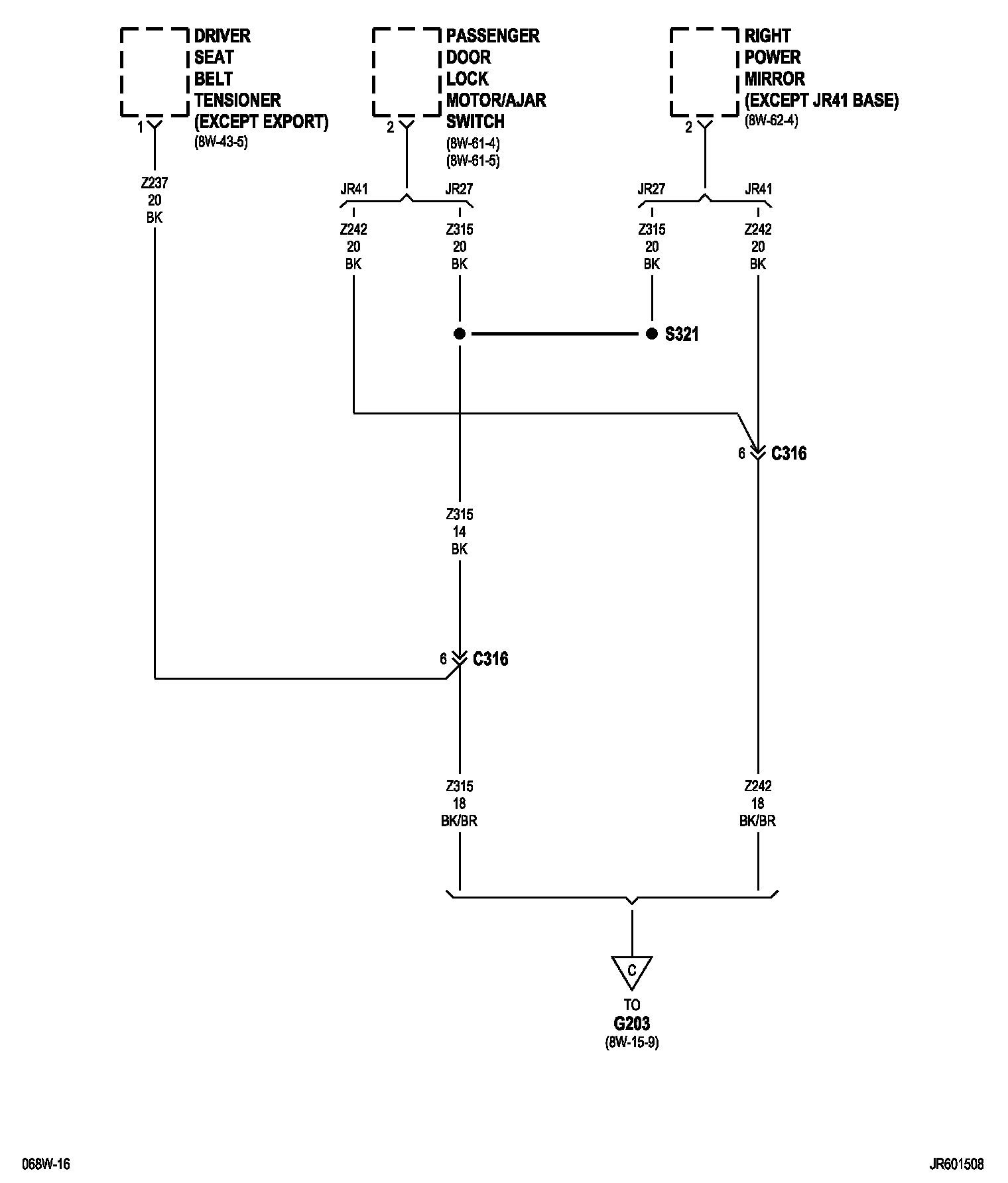

8w-15-8:

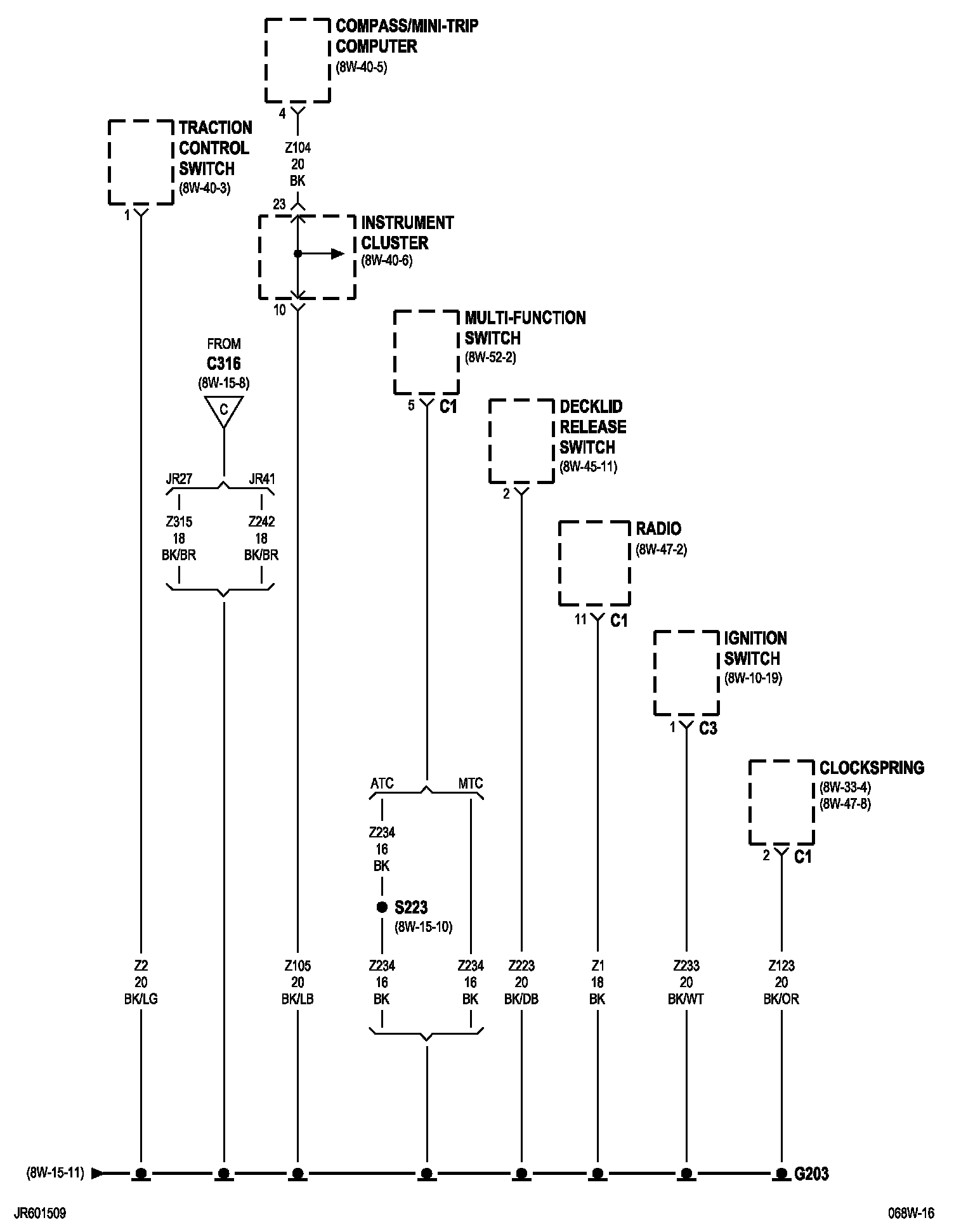

8w-15-9:

8w-15-10 (JR27):

Other Diagram: Other diagrams referred to by number (i.e. 8W-70-2, etc.) within these diagrams can be found at the vehicle level under Diagrams by Number. Diagrams By Number
