Home >> Chrysler >> 2006 >> Sebring Convertible L4-2.4L VIN X >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Group 8W-33 (Vehicle Speed Control System)

Group 8W-33 (Vehicle Speed Control System)

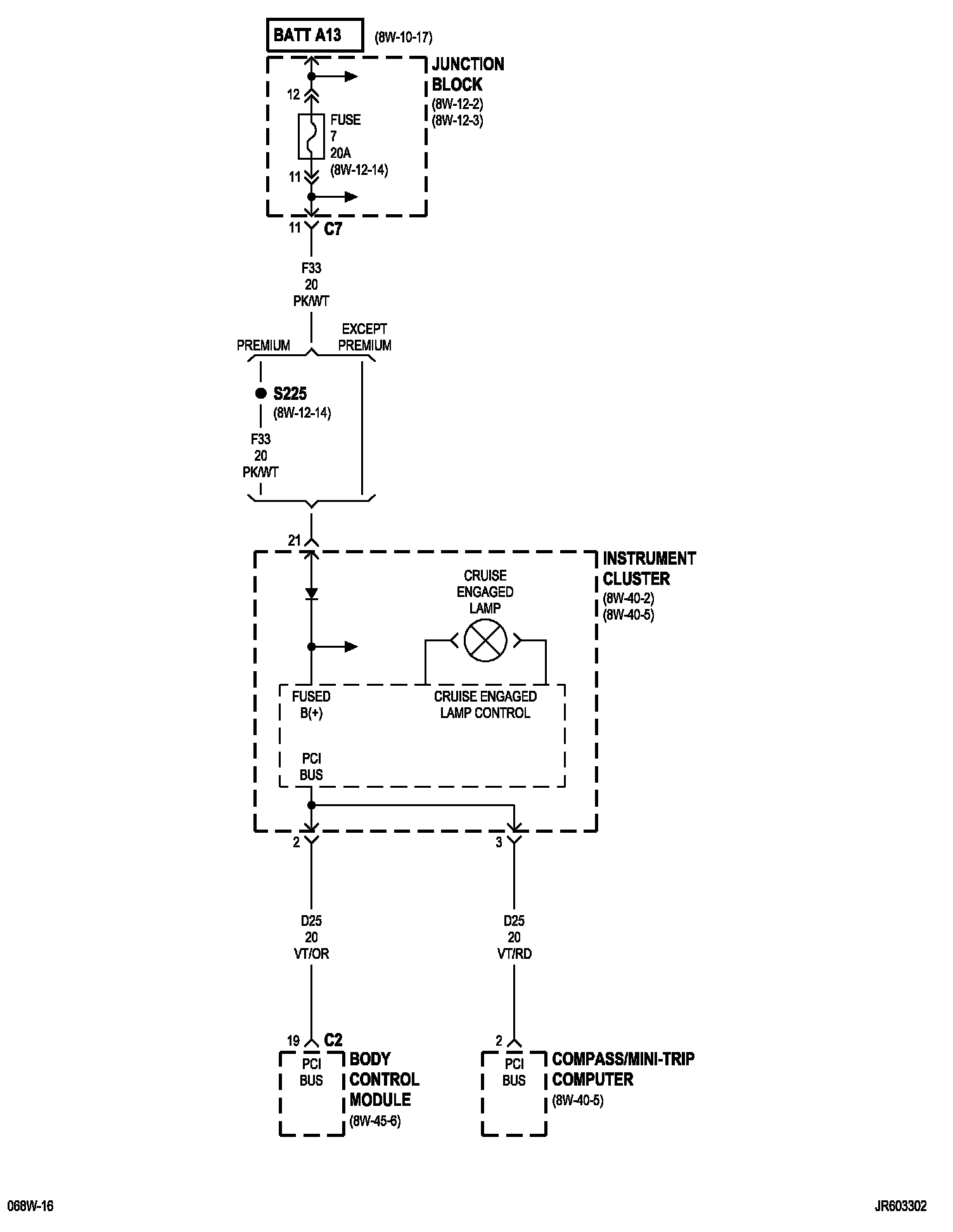

8w-33-2:

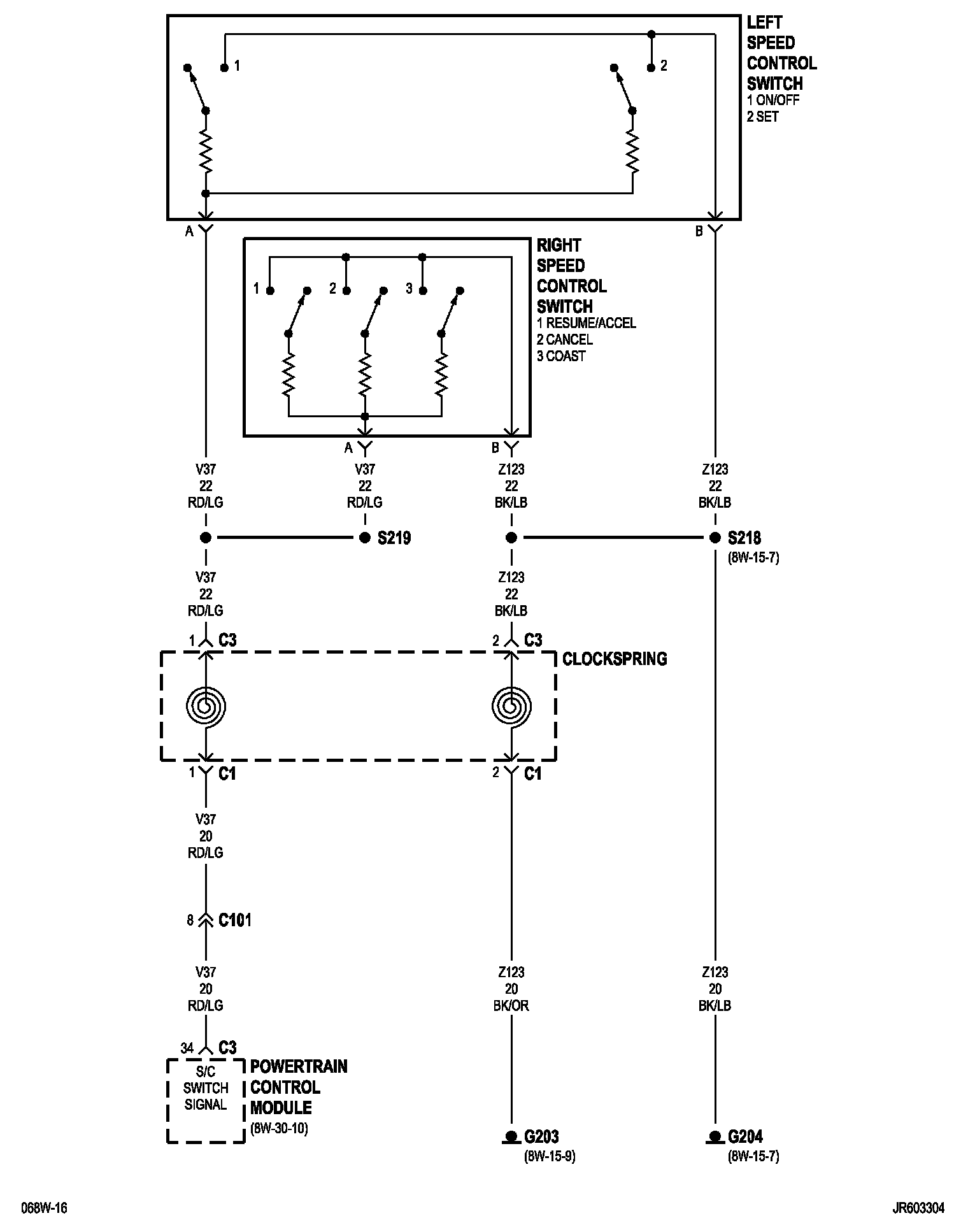

8w-33-3:

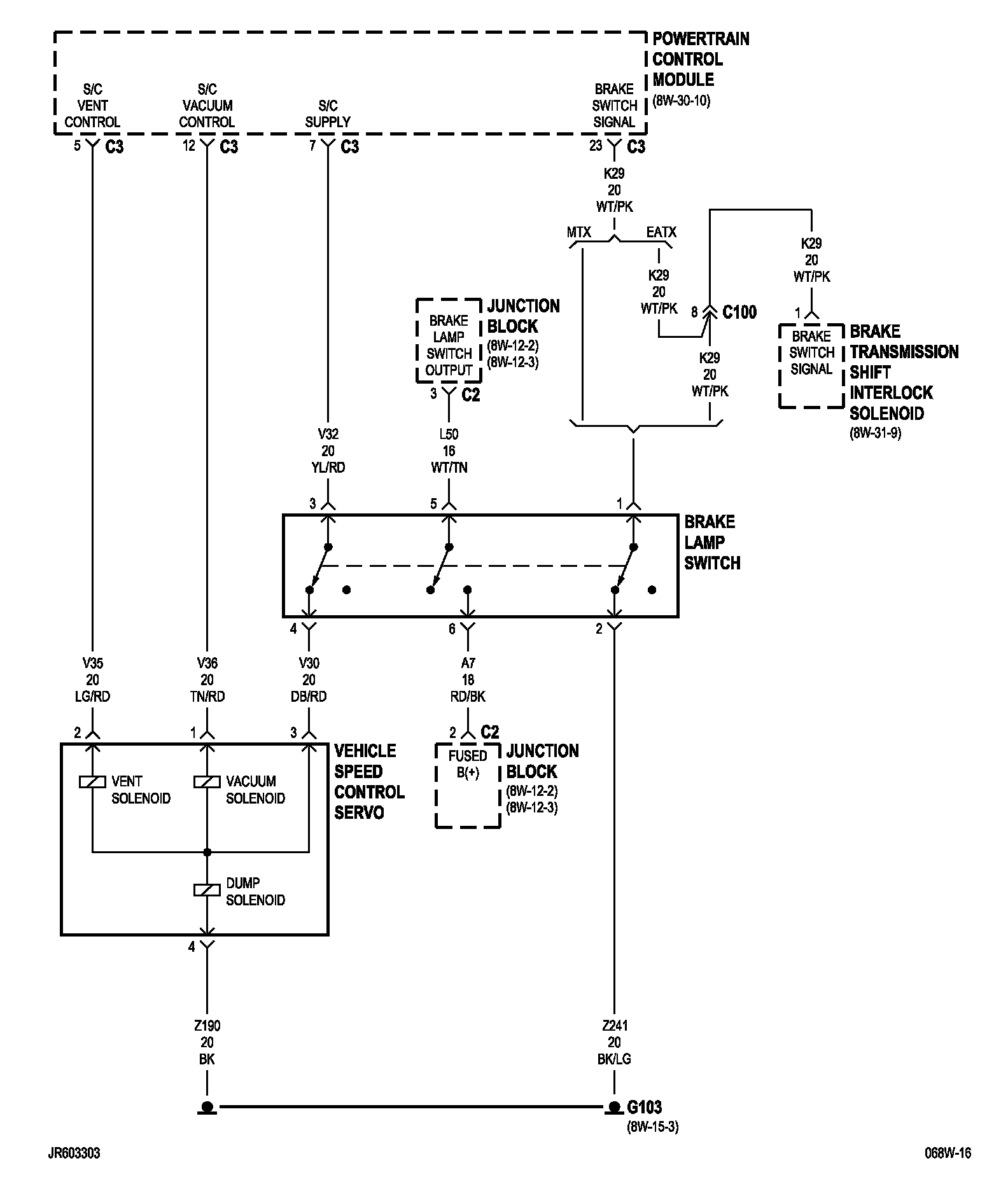

8w-33-4:
