Home >> Chrysler >> 2006 >> Sebring Convertible L4-2.4L VIN X >> Repair and Diagnosis >> Diagrams >> Connector Views >> Trunk / Liftgate Switch

Trunk / Liftgate Switch

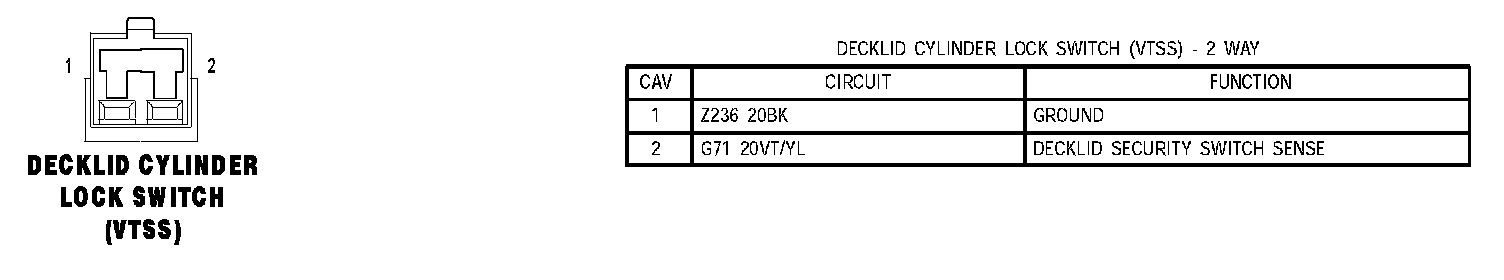

Decklid Cylinder Lock Switch (VTSS):



Decklid Release Switch:
