Home >> Chrysler >> 2006 >> Sebring Convertible L4-2.4L VIN X >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module HVAC

Control Module HVAC

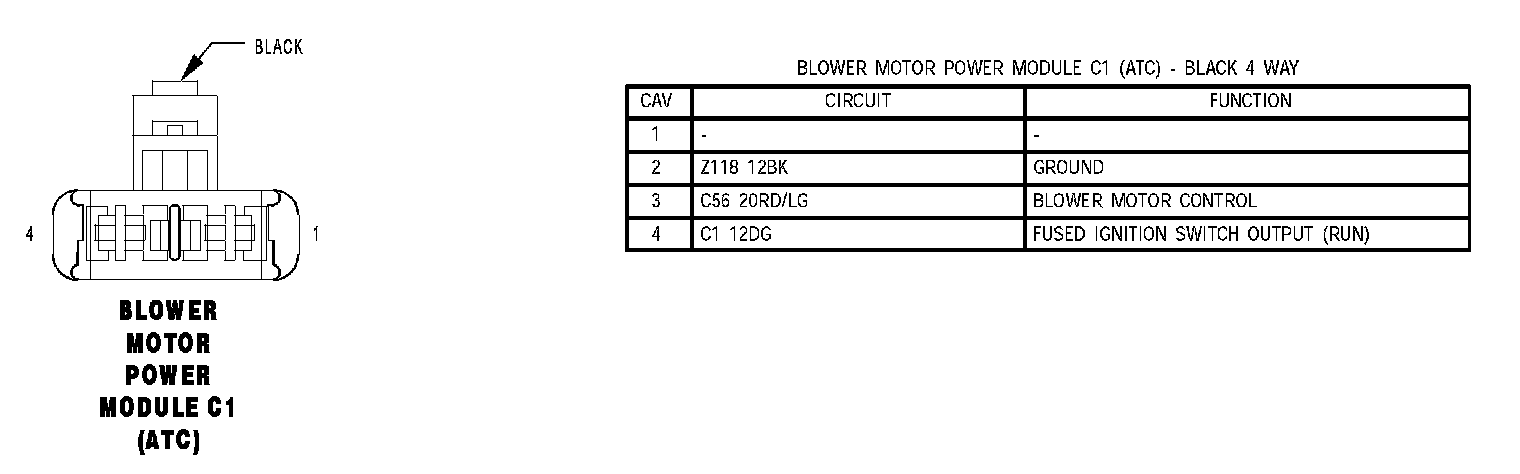

Blower Motor Power Module C1 (ATC):

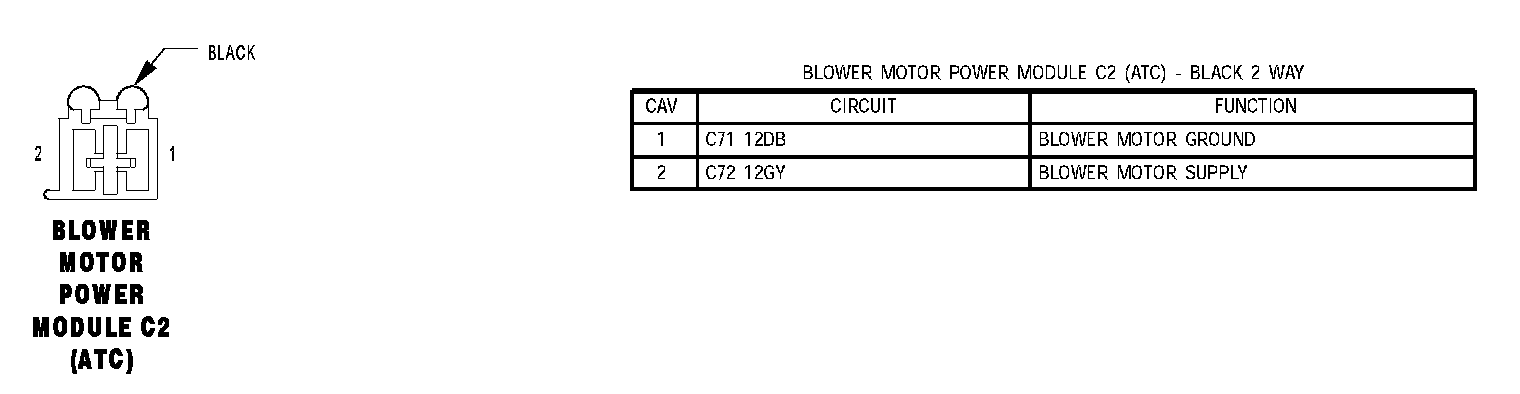

Blower Motor Power Module C2 (ATC):
