Home >> Chrysler >> 2006 >> Sebring Convertible L4-2.4L VIN X >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Specifications

Antilock Brakes / Traction Control Systems: Specifications

SPECIFICATIONS

BRAKE FASTENER TORQUE:





ABS FASTENER TORQUE

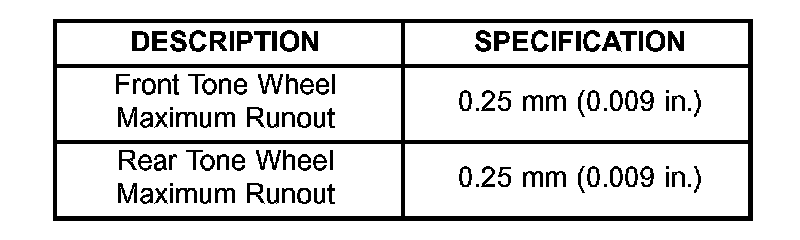

TONE WHEEL RUNOUT:





TONE WHEEL RUNOUT

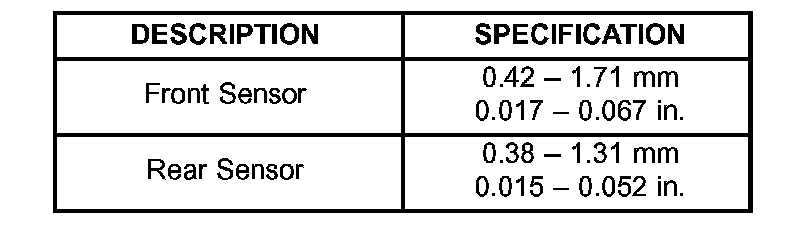

WHEEL SPEED SENSOR AIR GAP:





WHEEL SPEED SENSOR AIR GAP
