Door Lock Inhibit Inoperative

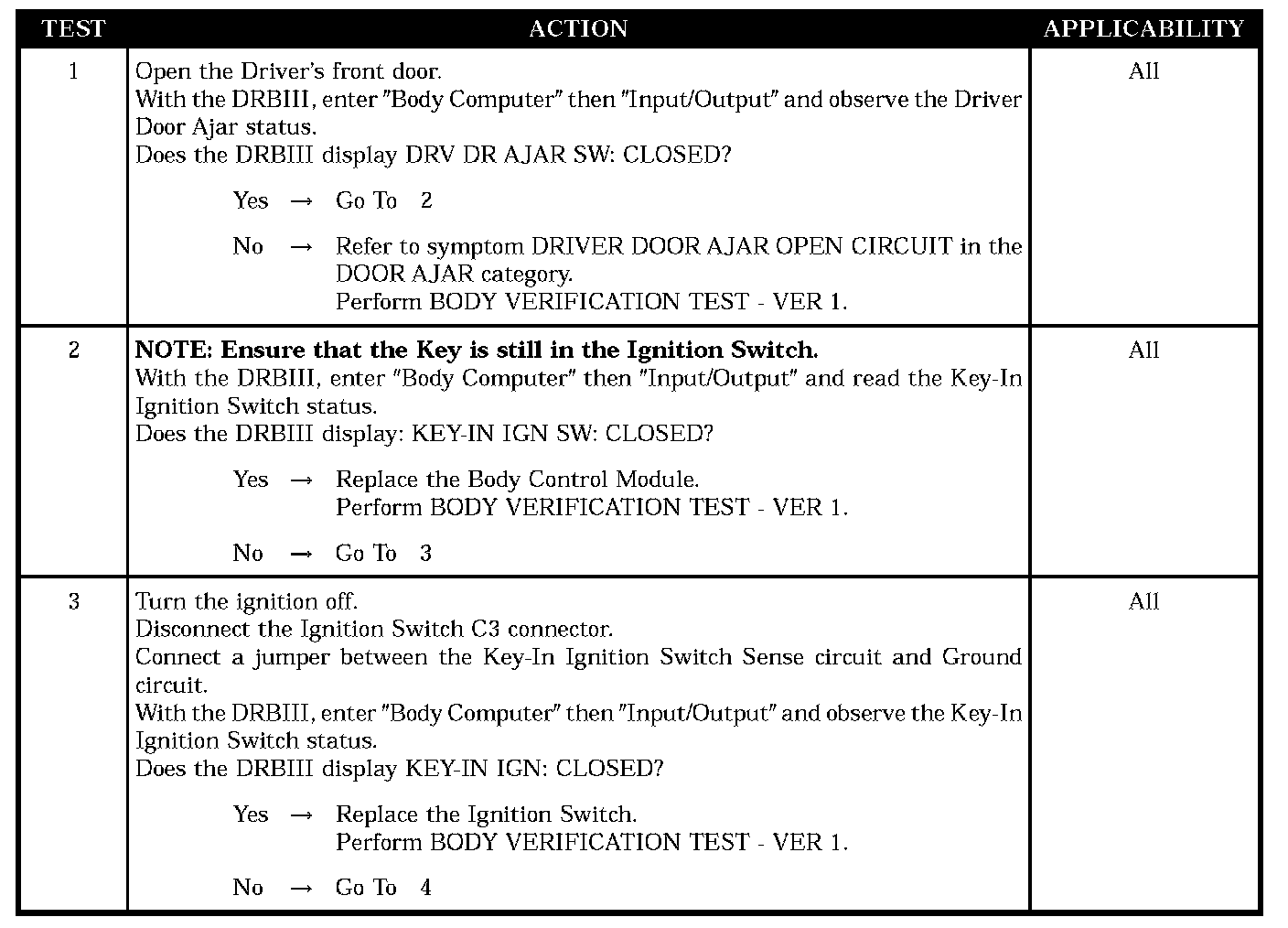

Test 1 - Test 3:

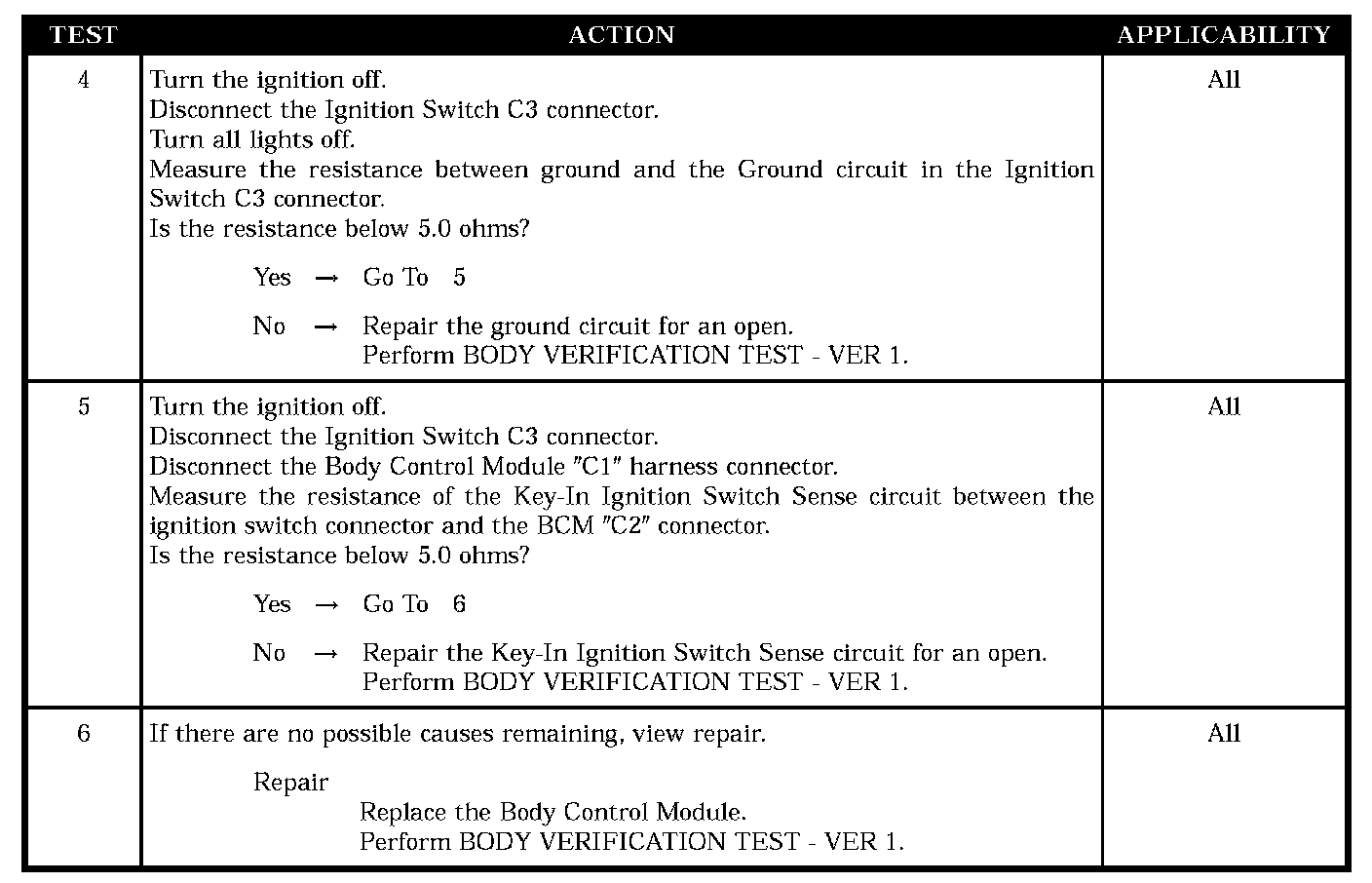

Test 4 - Test 6:

SYMPTOM
DOOR LOCK INHIBIT INOPERATIVE

POSSIBLE CAUSES
- Check the driver door ajar switch status
- Observe the key-in ignition switch status
- Ignition switch open
- KEY-IN ignition switch ground circuit open
- KEY-IN ignition switch sense circuit open
- BCM - incorrect KEY-IN ignition switch status
