All Doors Except Driver Failing to Unlock From Any Switch

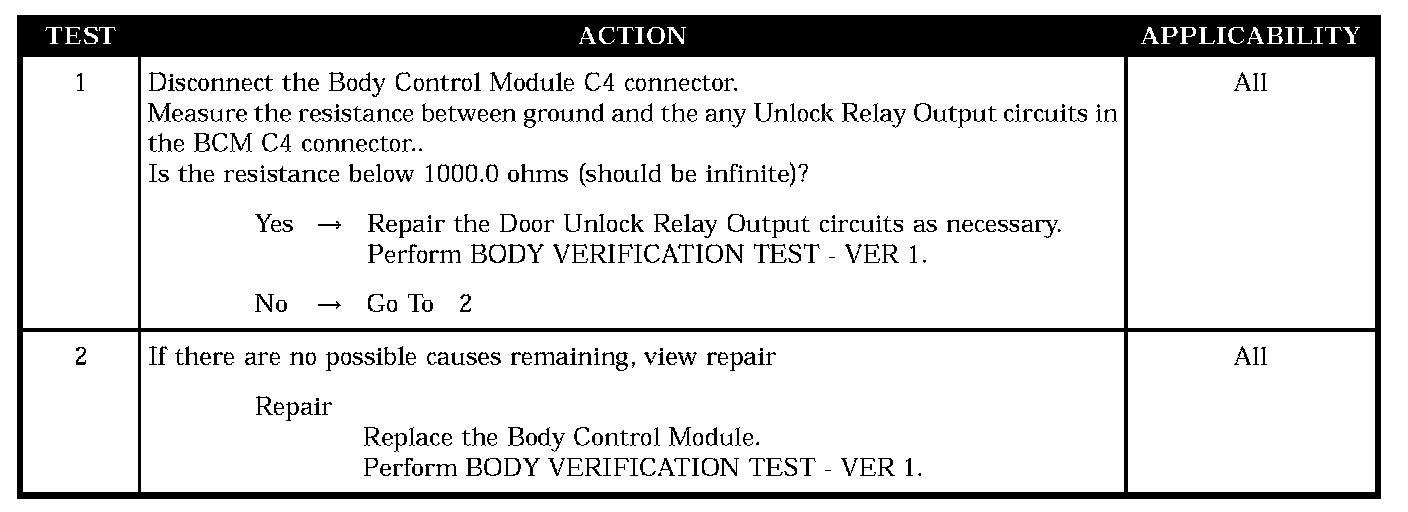

Test 1 - Test 2:






SYMPTOM
ALL DOORS EXCEPT DRIVER FAILING TO UNLOCK FROM ANY SWITCH

POSSIBLE CAUSES
- Door unlock relay output circuit short to ground
- Body control module - Unlock relay
