Right Lower Silencer Panel Replacement

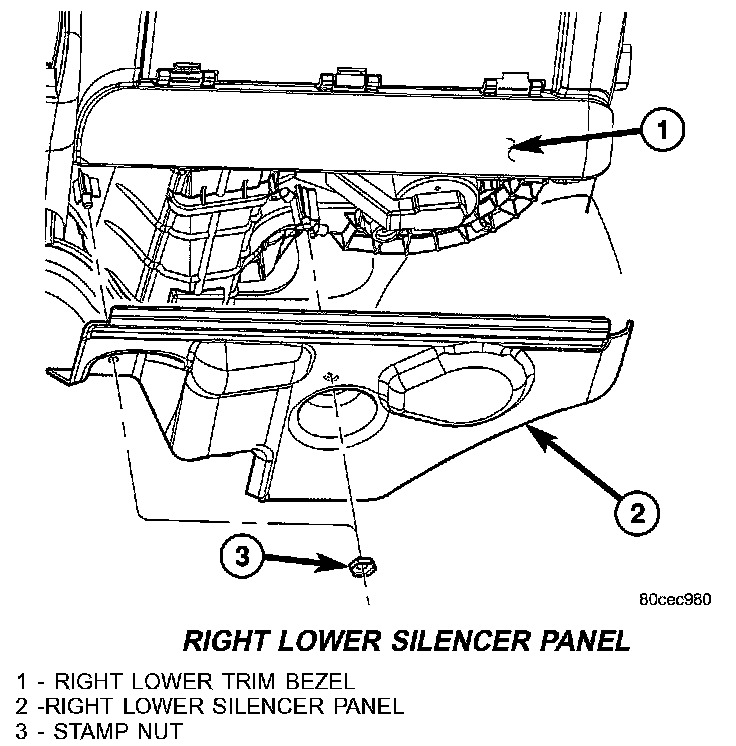

RIGHT LOWER SILENCER PANEL

REMOVAL

Right Lower Silencer Panel:

1. Remove the attaching stamp nut.
2. Using a trim stick gently pry out silencer panel from lower right trim bezel.
3. Remove panel from the instrument panel.

INSTALLATION
1. Place right lower silencer panel into position.
2. Push firmly into place.
3. Install attaching stamp nut.
