Left Lower Silencer Panel Replacement

LEFT LOWER INSTRUMENT SILENCER PANEL

REMOVAL
1. Remove end cap.
2. Remove power mirror switch bezel.
3. Disconnect wirer connector from power mirror switch.
4. Remove five screws to the left lower instrument panel trim and disconnect wire connector.

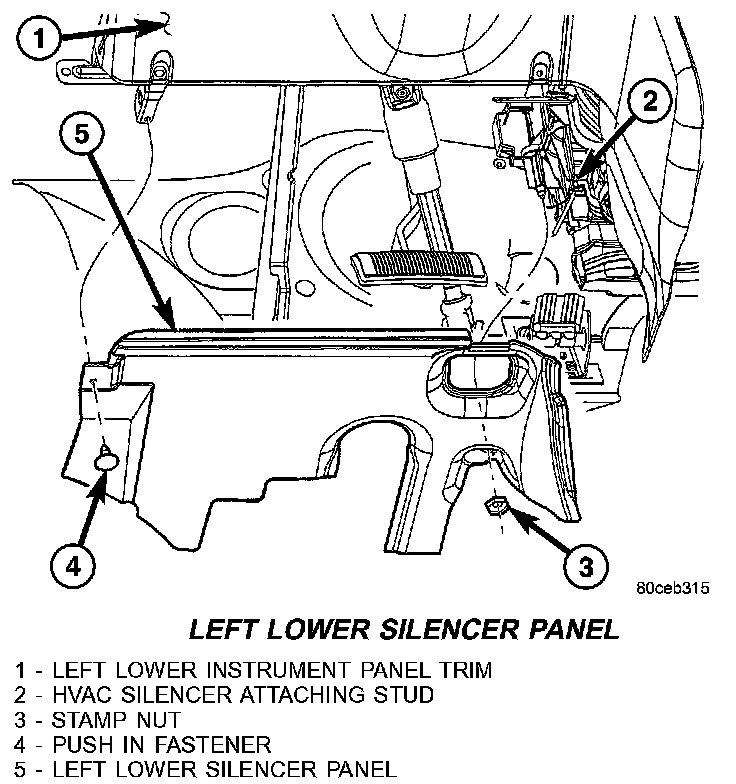

Left Lower Silencer Panel:

5. Remove push in fastener and stamp nut.
6. Using rearward motion pull the left lower silencer panel from the instrument panel and remove.

INSTALLATION
1. Position silencer panel over HVAC stud.
2. Install stamp nut and install push in fastener.
3. Connect deck lid release wire connector.
4. Position the left lower instrument panel trim over the retaining slots and firmly push into place.
5. Install five screws attaching left lower instrument panel trim.
6. Connect power mirror switch wire connector.
7. Install instrument panel bezel.
8. Install end cap.
