Rear Door

SPEAKER

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Using a trim stick, pry the speaker grill from the trim panel.

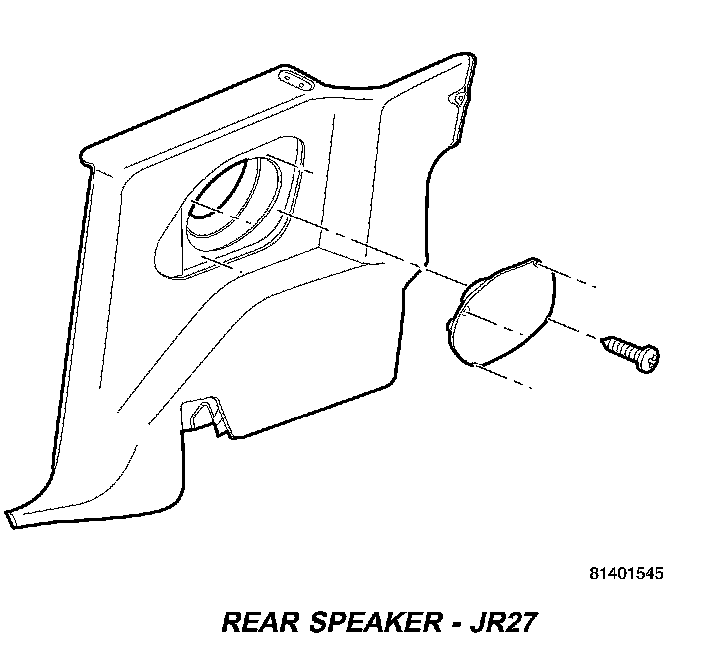

Rear Speaker - JR27:

3. Remove speaker mounting screws.
4. Remove speaker from trim panel.
5. Disconnect wire harness connector from speaker.

INSTALLATION
1. Connect wire harness connector to speaker.
2. Position speaker into trim panel.
3. Install speaker mounting screws.
4. Press speaker grill into position.
5. Connect battery negative cable.
