Home >> Chrysler >> 2006 >> Sebring Convertible L4-2.4L VIN X >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> VTSS Will Not Arm

VTSS Will Not Arm

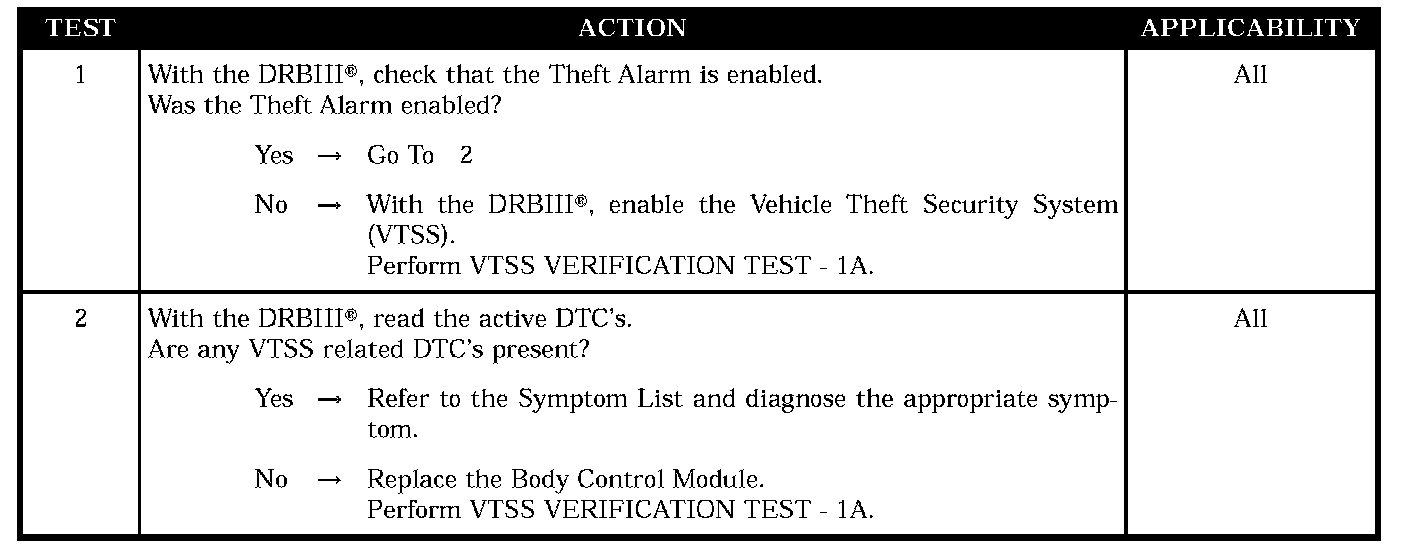

Test 1 - Test 2:






SYMPTOM
VTSS WILL NOT ARM

POSSIBLE CAUSES
- Check the VTSS status
- Check the BCM for DTCS
- Body control module internal malfunction
