VTSS Does Not Trip From Right Rear Door
VTSS Does Not Trip From Right Rear Door

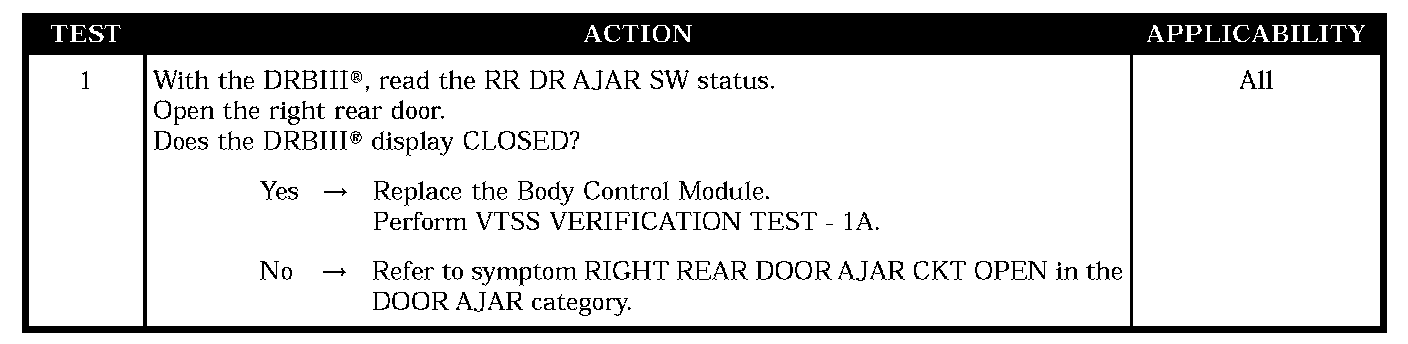

Test 1:
SYMPTOM
VTSS DOES NOT TRIP FROM RIGHT REAR DOOR
POSSIBLE CAUSES
-
Invalid door ajar input
-
Body control module
