U110C

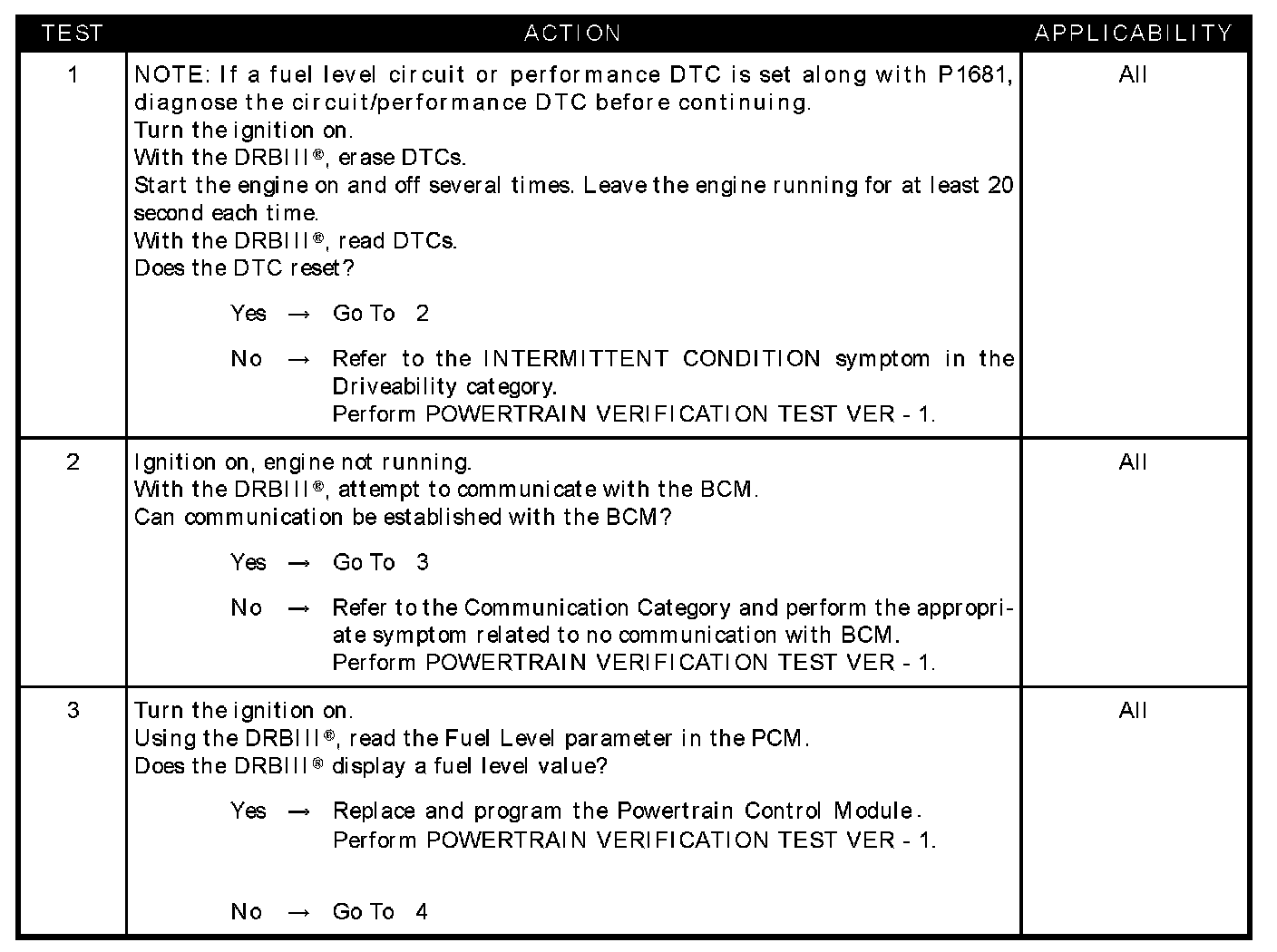

Test 1 - Test 3:

Test 4:

SYMPTOM
U110C-NO FUEL LEVEL BUS MESSAGE

WHEN MONITORED
Ignition on.

SET CONDITION
No fuel level BUS messages received by the PCM for 20 seconds.

POSSIBLE CAUSES
- DTC reset
- Communicate with BCM
- Fuel level BUS message
- PCI BUS circuit open from PCM to BCM
- BCM
