P1775

Symptom: P1775-SOLENOID SWITCH VALVE LATCHED IN TCC POSITION

When Monitored and Set Condition:

When Monitored: During an attempted shift into 1st gear.

Set Condition: This DTC is set if three unsuccessful attempts are made to get into 1st gear in one given ignition start.

POSSIBLE CAUSES
- RELATED DTC P0841 PRESENT
- INTERMITTENT WIRING AND CONNECTORS
- L/R PRESSURE SWITCH SENSE CIRCUIT OPEN
- TRANSMISSION CONTROL RELAY OUTPUT CIRCUIT OPEN
- L/R PRESSURE SWITCH SENSE CIRCUIT SHORT TO GROUND
- L/R PRESSURE SWITCH SENSE CIRCUIT SHORT TO VOLTAGE
- INTERNAL TRANSMISSION
- POWERTRAIN CONTROL MODULE

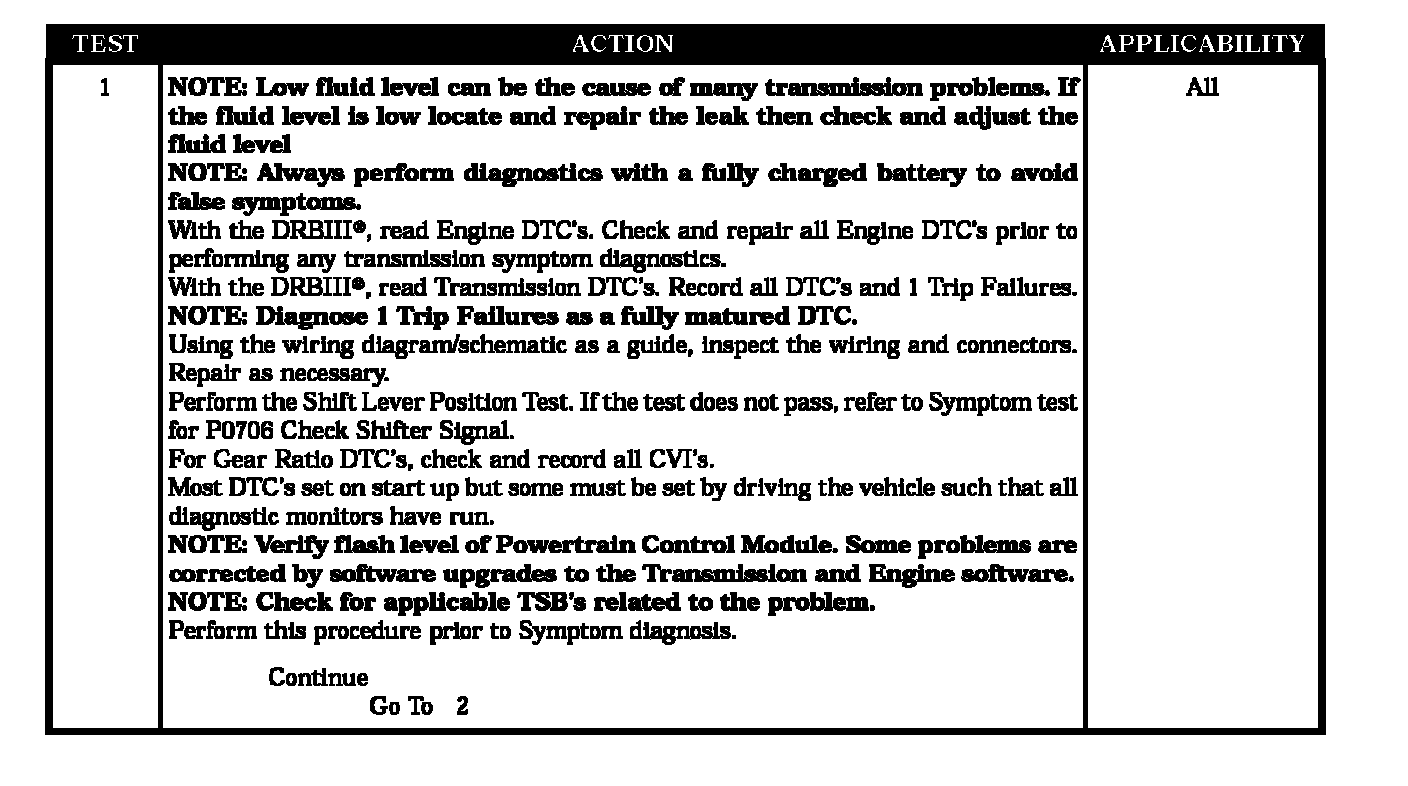

Test 1:

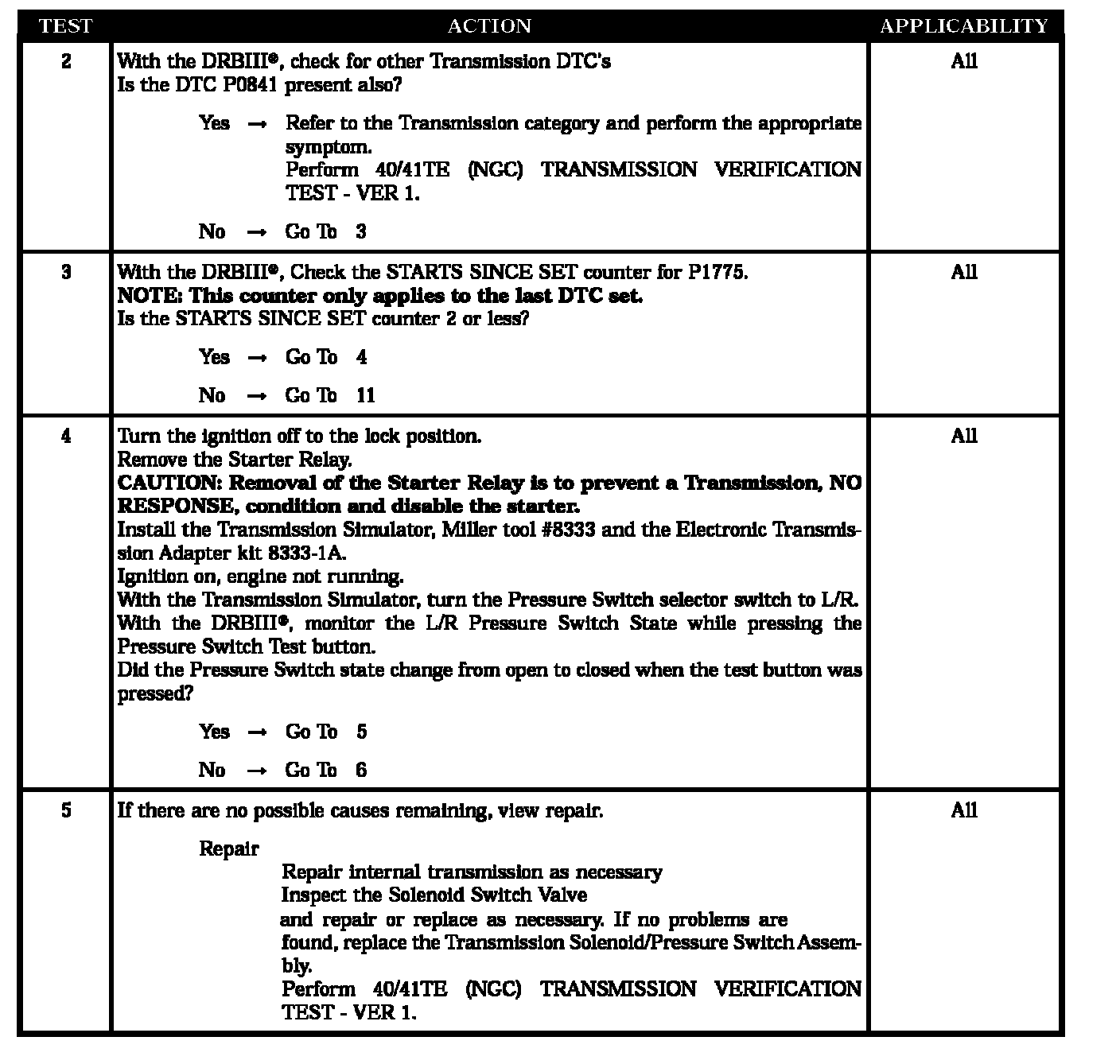

Test 2 - Test 5:

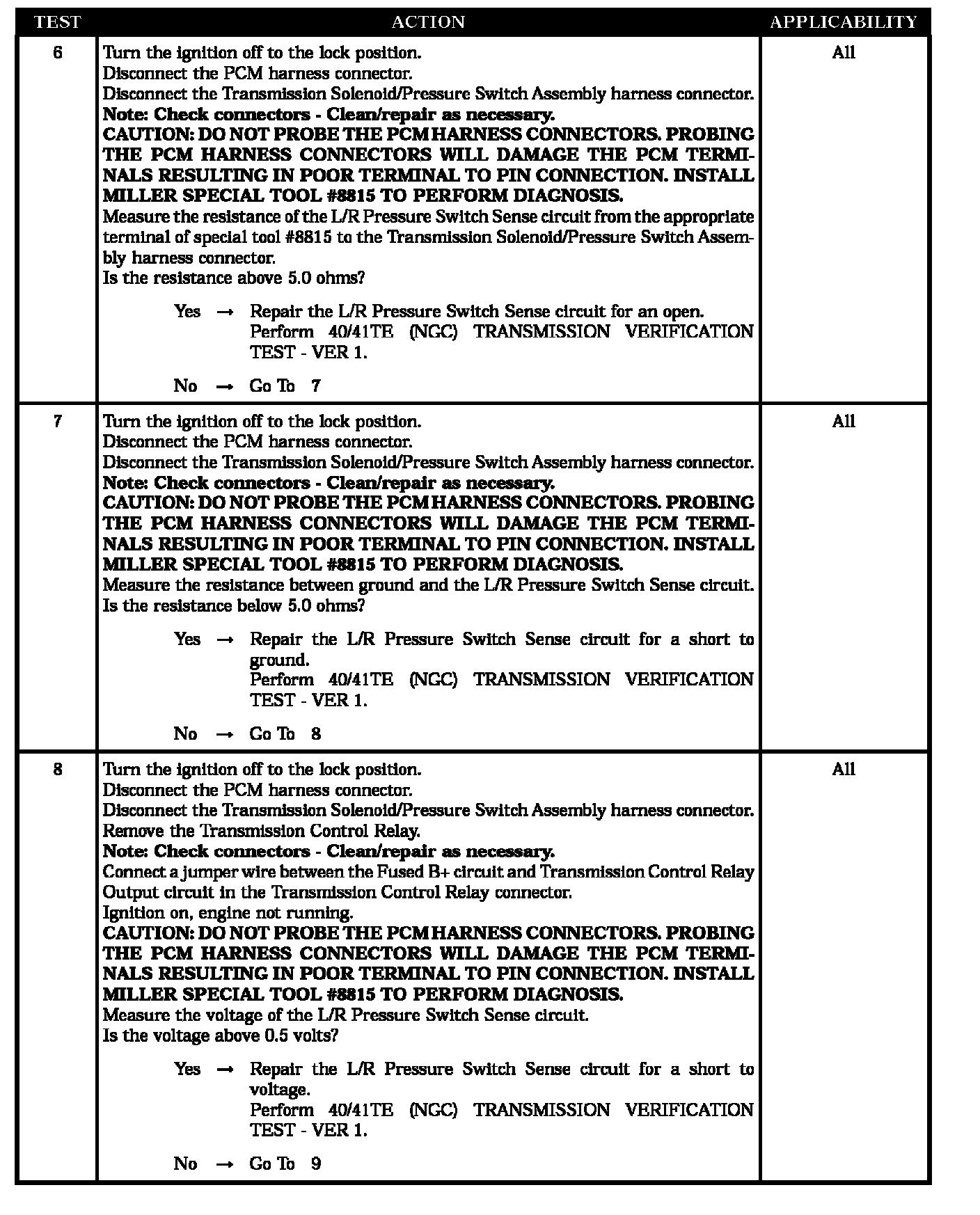

Test 6 - Test 8:

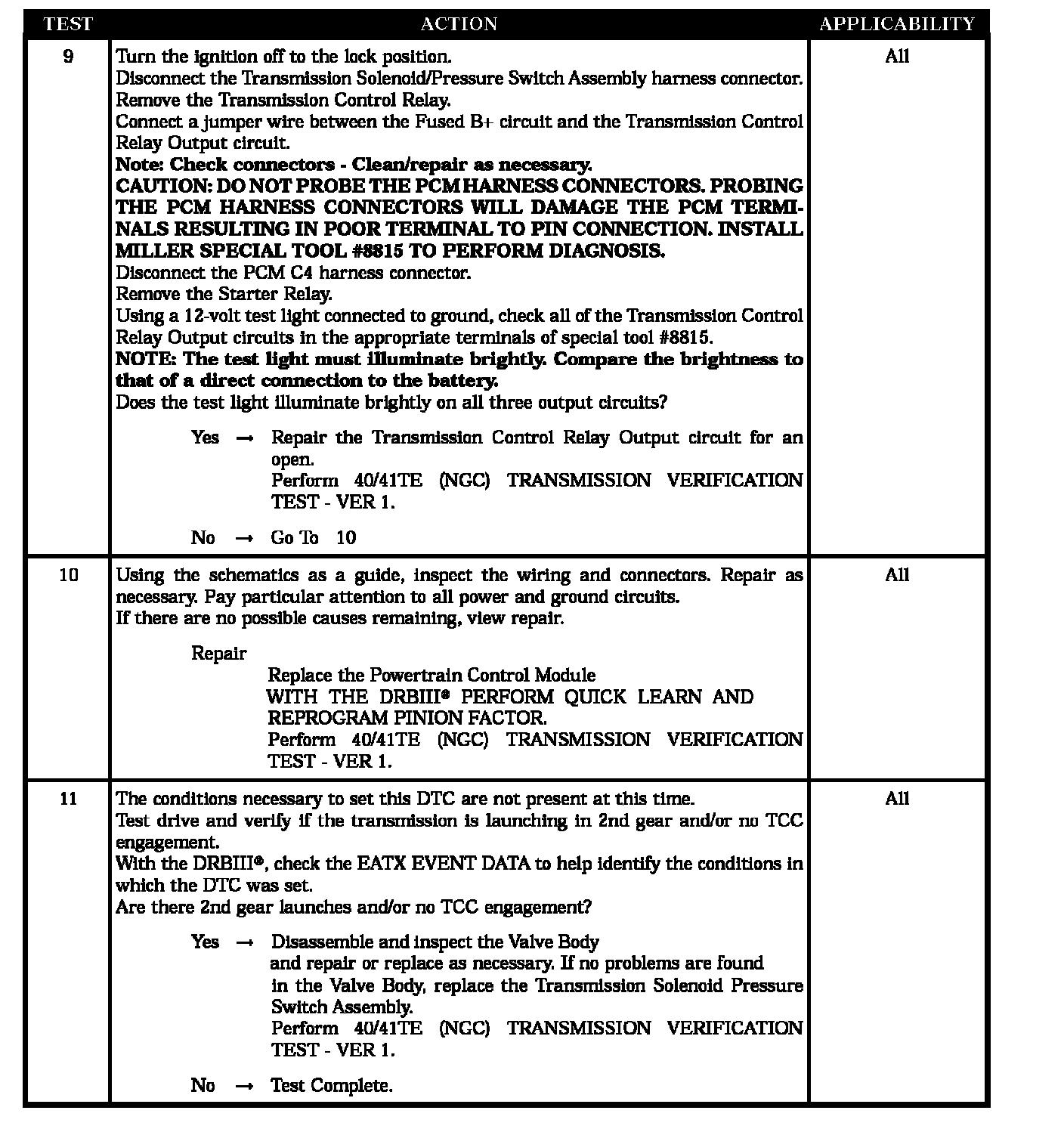

Test 9 - Test 11:
