P0952

Symptom: P0952-AUTOSTICK INPUT CIRCUIT LOW

When Monitored and Set Condition:

When Monitored: Whenever the engine is running.

Set Condition: The transmission is not in the Autostick position and the upshift or downshift is reporting closed - below 0.3 volts or if both switches are reported closed at the same time.

POSSIBLE CAUSES
- AUTOSTICK SWITCH
- AUTOSTICK DOWNSHIFT SENSE CIRCUIT SHORT TO GROUND
- AUTOSTICK UPSHIFT SENSE CIRCUIT SHORT TO GROUND
- POWERTRAIN CONTROL MODULE
- INTERMITTENT WIRING AND CONNECTORS

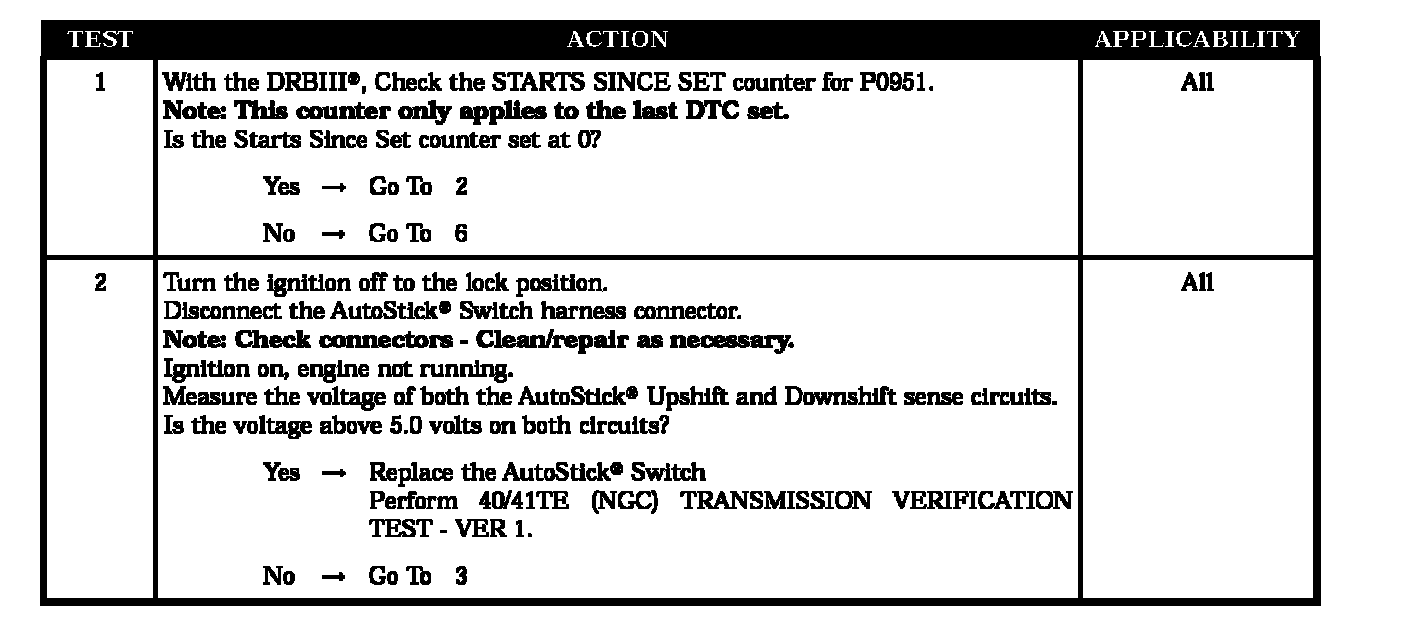

Test 1 - Test 2:

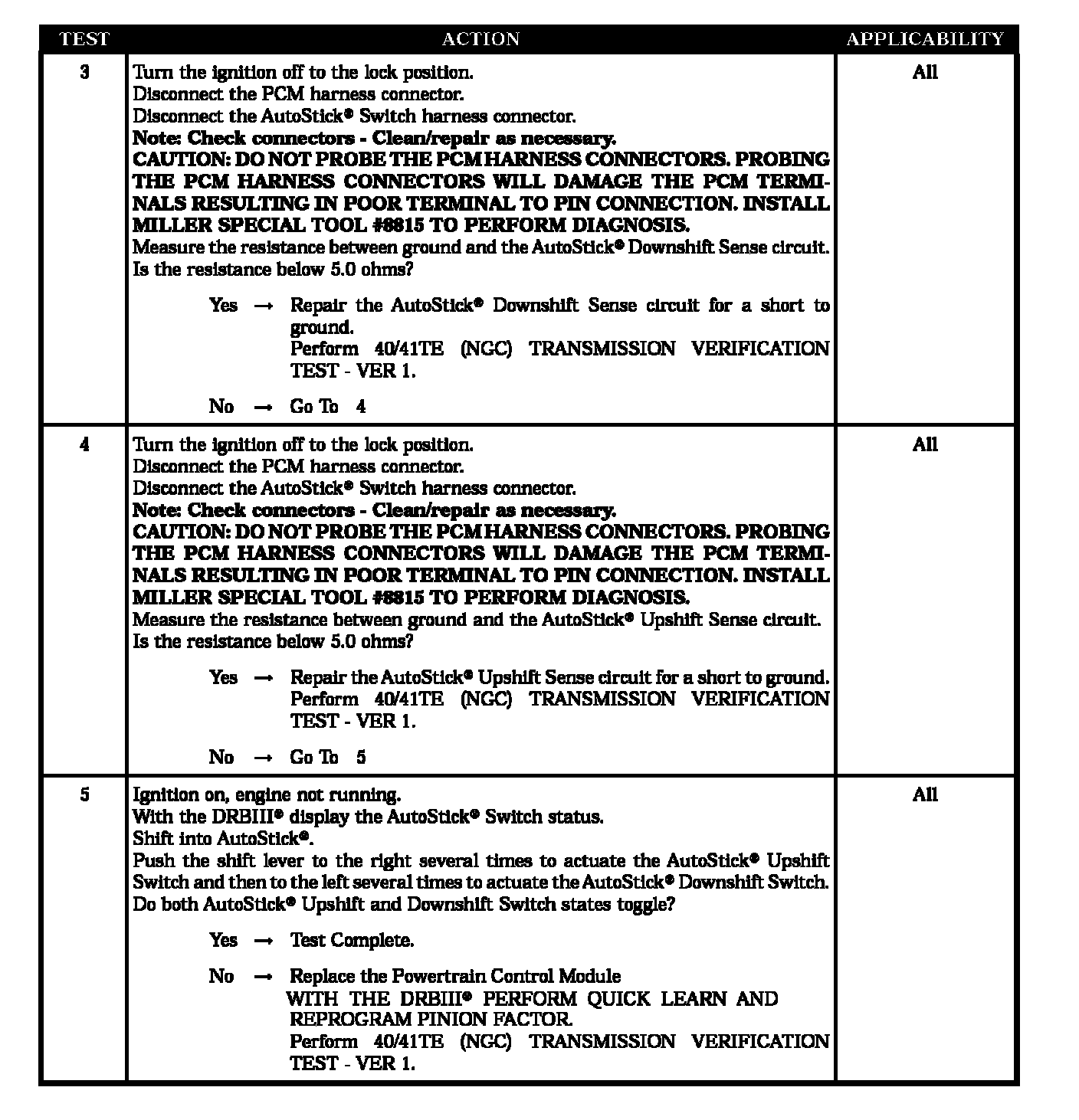

Test 3 - Test 5:

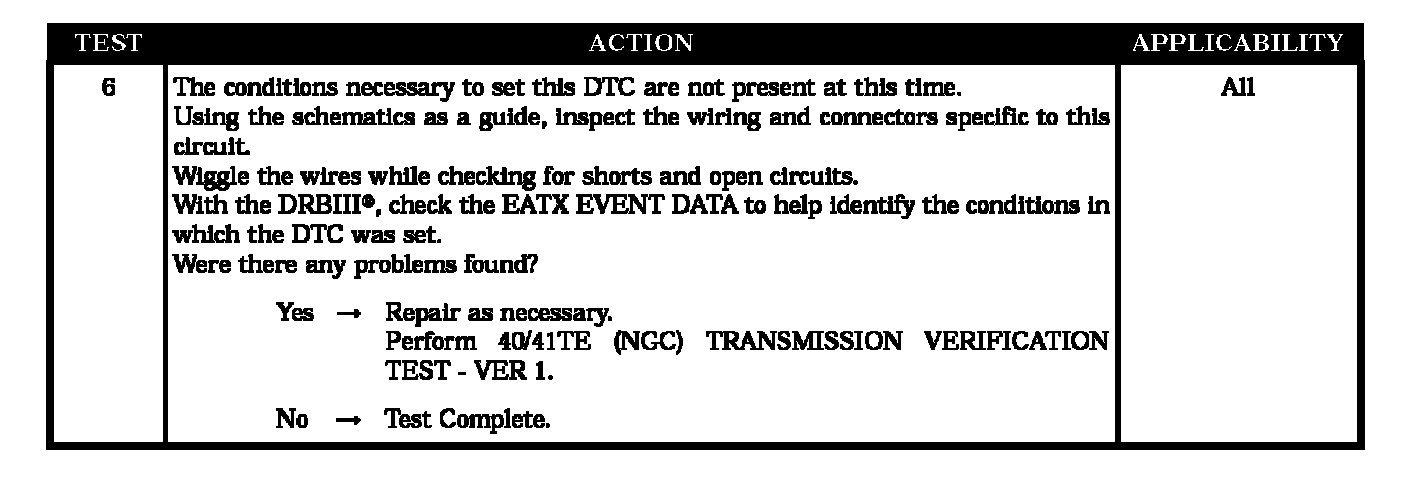

Test 6:
