P0890

Symptom: P0890-SWITCHED BATTERY

When Monitored and Set Condition:

When Monitored: When the ignition is turned from the "off" position to the "run" position and/or the ignition is turned from the "crank" position to the "run" position.

Set Condition: This DTC is set if the Transmission Control Module (TCM) senses voltage on any of the pressure switch inputs prior to the TCM energizing the relay. Note: Due to the integration of the Powertrain and Transmission Control Modules, the transmission part of the PCM has its own specific power and ground circuits.

POSSIBLE CAUSES
- 2/4 PRESSURE SWITCH SENSE CIRCUIT SHORT TO VOLTAGE
- L/R PRESSURE SWITCH SENSE CIRCUIT SHORT TO VOLTAGE
- OD PRESSURE SWITCH SENSE CIRCUIT SHORT TO VOLTAGE
- POWERTRAIN CONTROL MODULE
- INTERMITTENT WIRING AND CONNECTORS

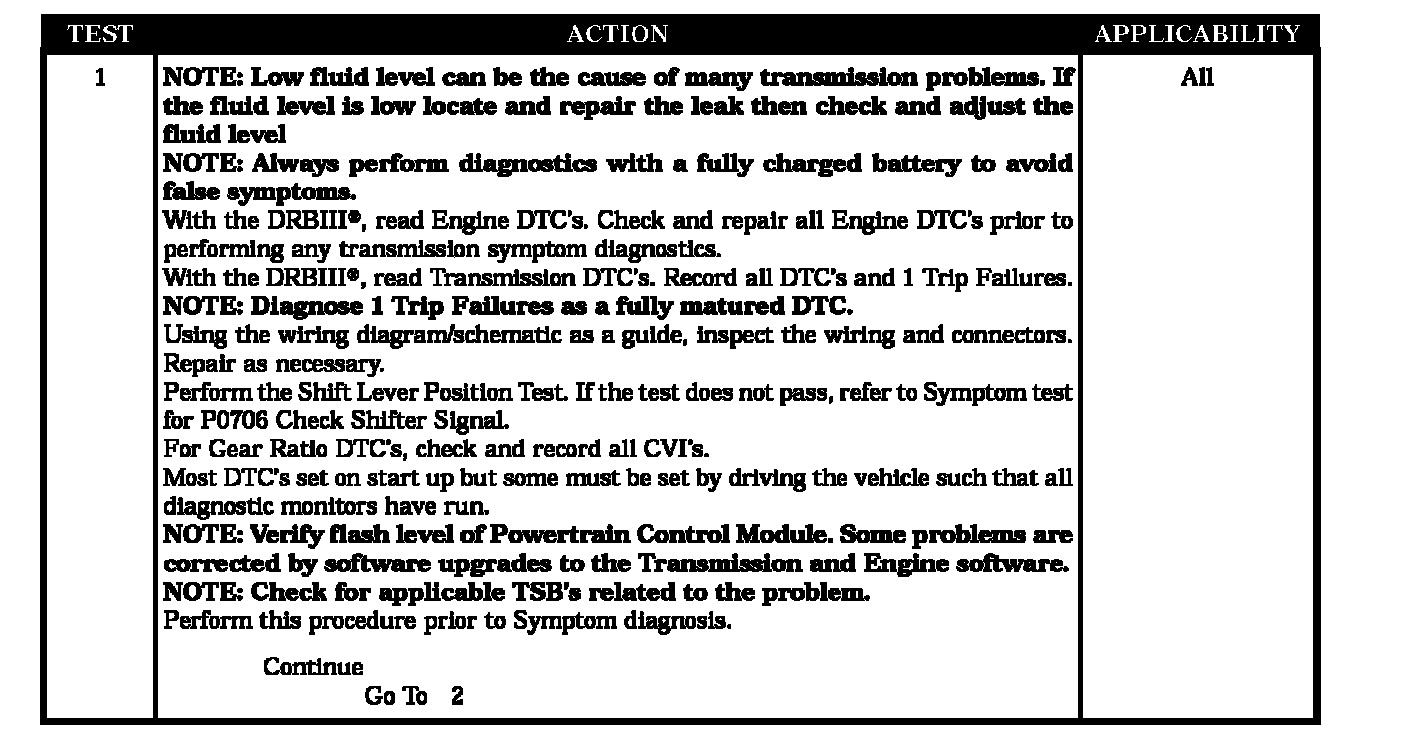

Test 1:

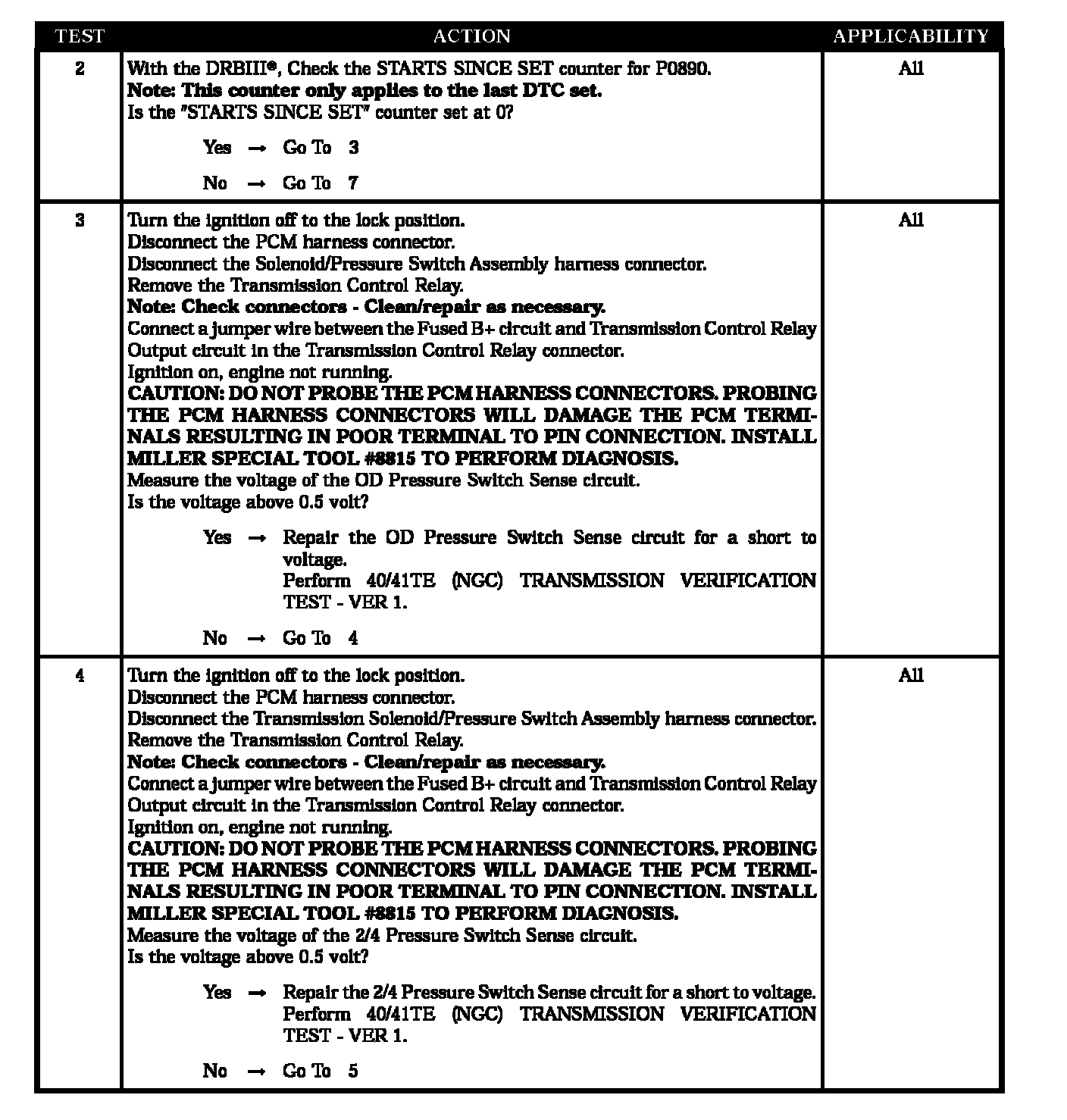

Test 2 - Test 4:

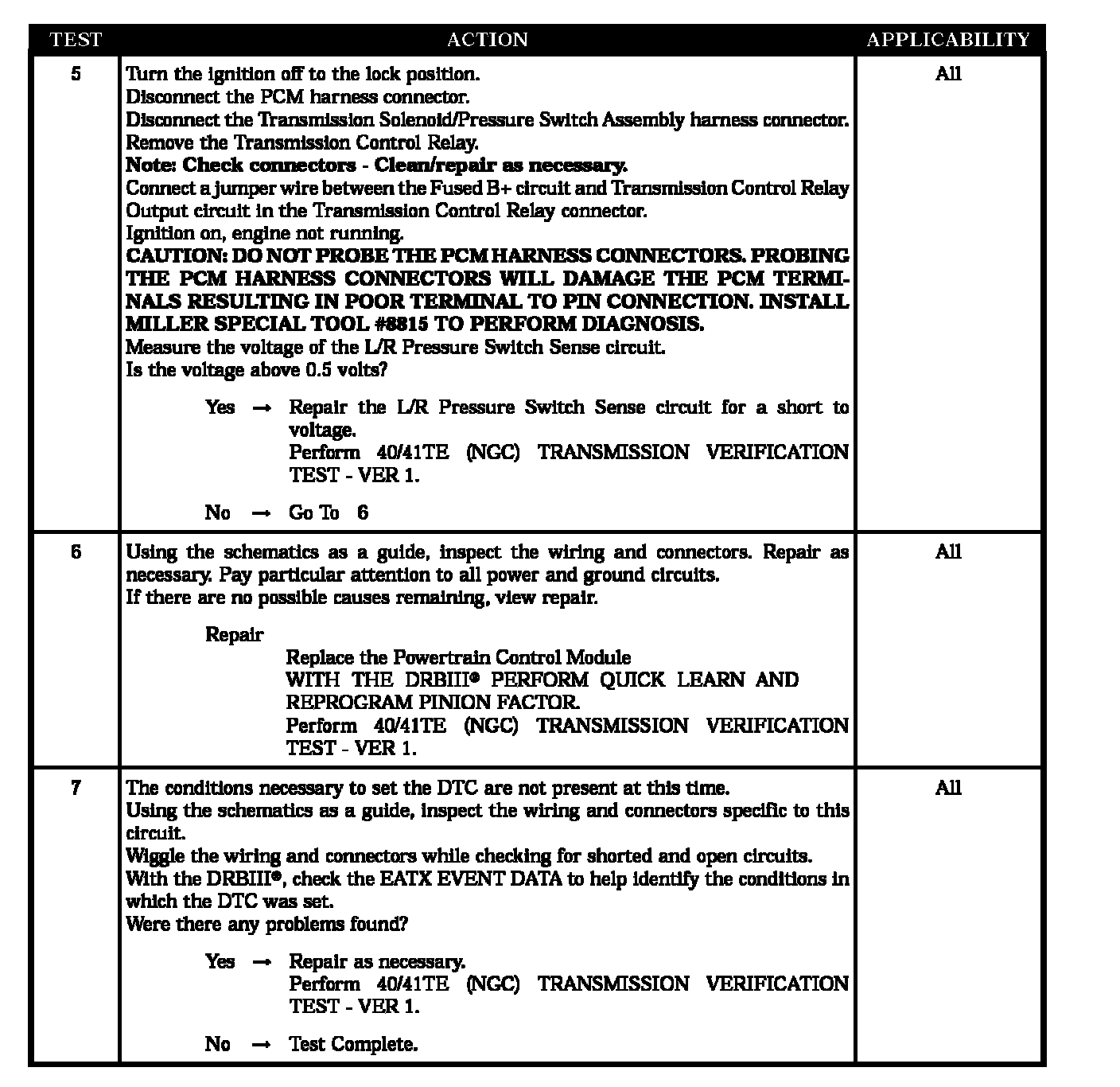

Test 5 - Test 7:
