P0841

Symptom: P0841-LR PRESSURE SWITCH SENSE CIRCUIT

When Monitored and Set Condition:

When Monitored: Whenever the engine is running.

Set Condition: The DTC is set if one of the pressure switches are open or closed at the wrong time in a given gear.

POSSIBLE CAUSES
- RELATED RELAY DTC's PRESENT
- LOSS OF PRIME P0944 PRESENT
- L/R PRESSURE SWITCH SENSE CIRCUIT OPEN
- TRANSMISSION CONTROL RELAY OUTPUT CIRCUIT OPEN
- L/R PRESSURE SWITCH SENSE CIRCUIT SHORT TO GROUND
- L/R PRESSURE SWITCH SENSE CIRCUIT SHORT TO VOLTAGE
- L/R PRESSURE SWITCH
- POWERTRAIN CONTROL MODULE
- INTERMITTENT WIRING AND CONNECTORS

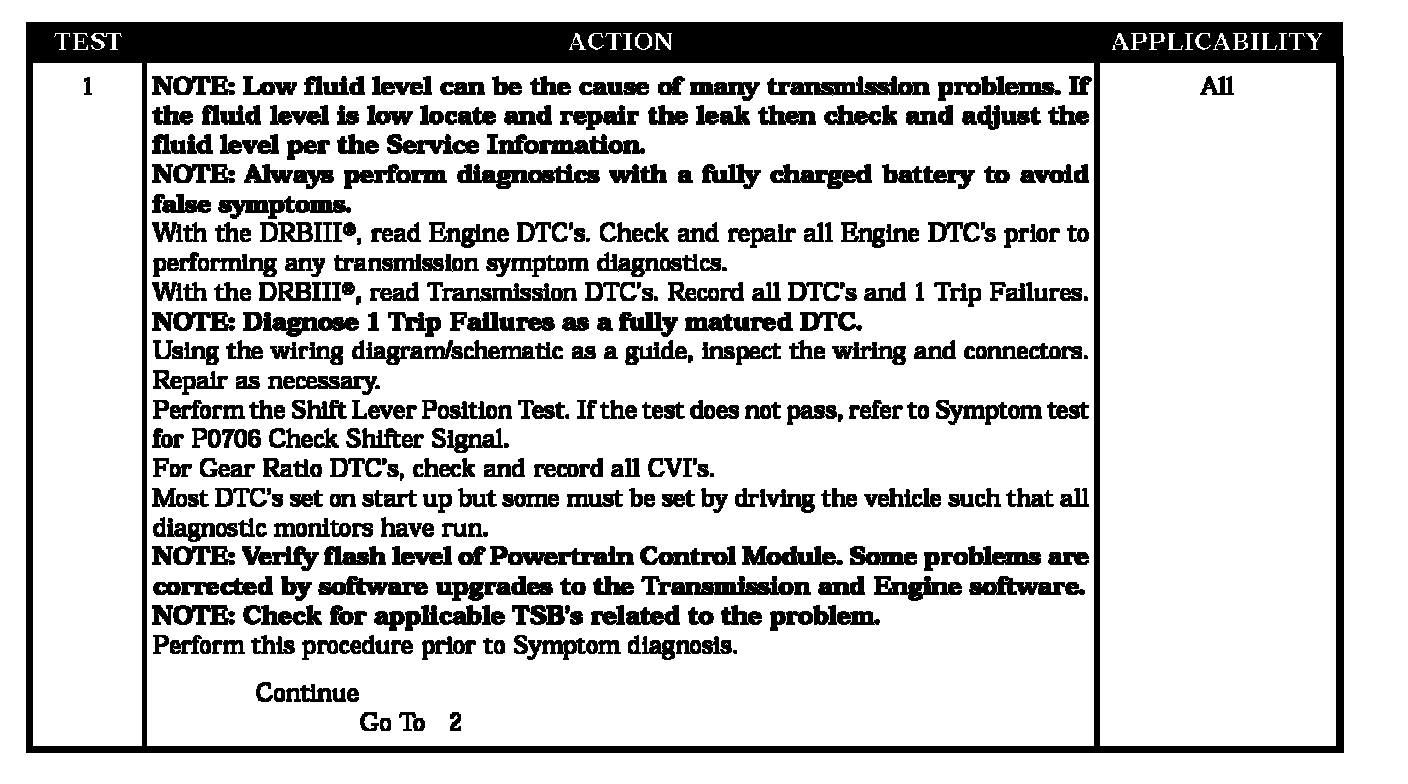

Test 1:

Test 2 - Test 6:

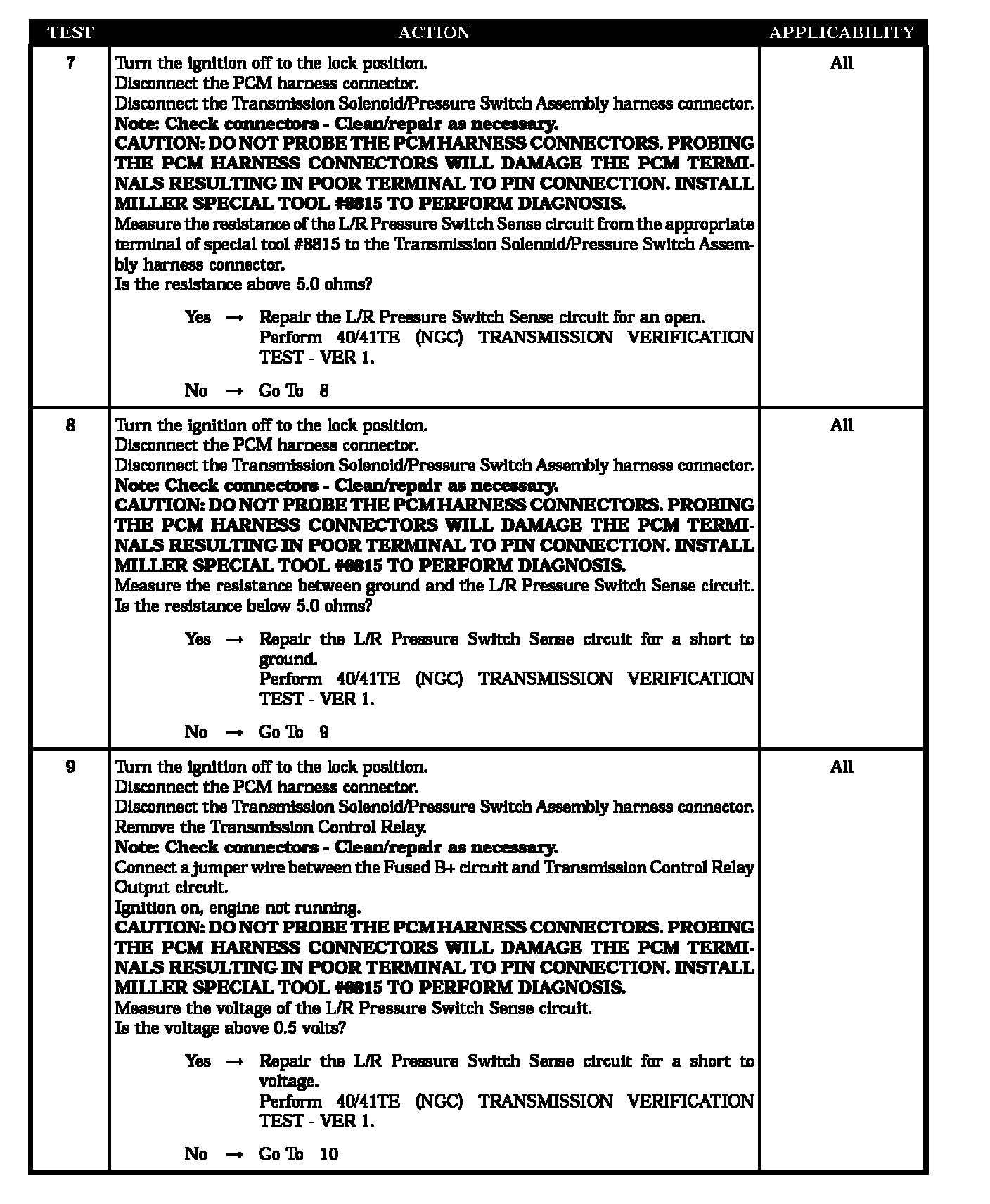

Test 7 - Test 9:

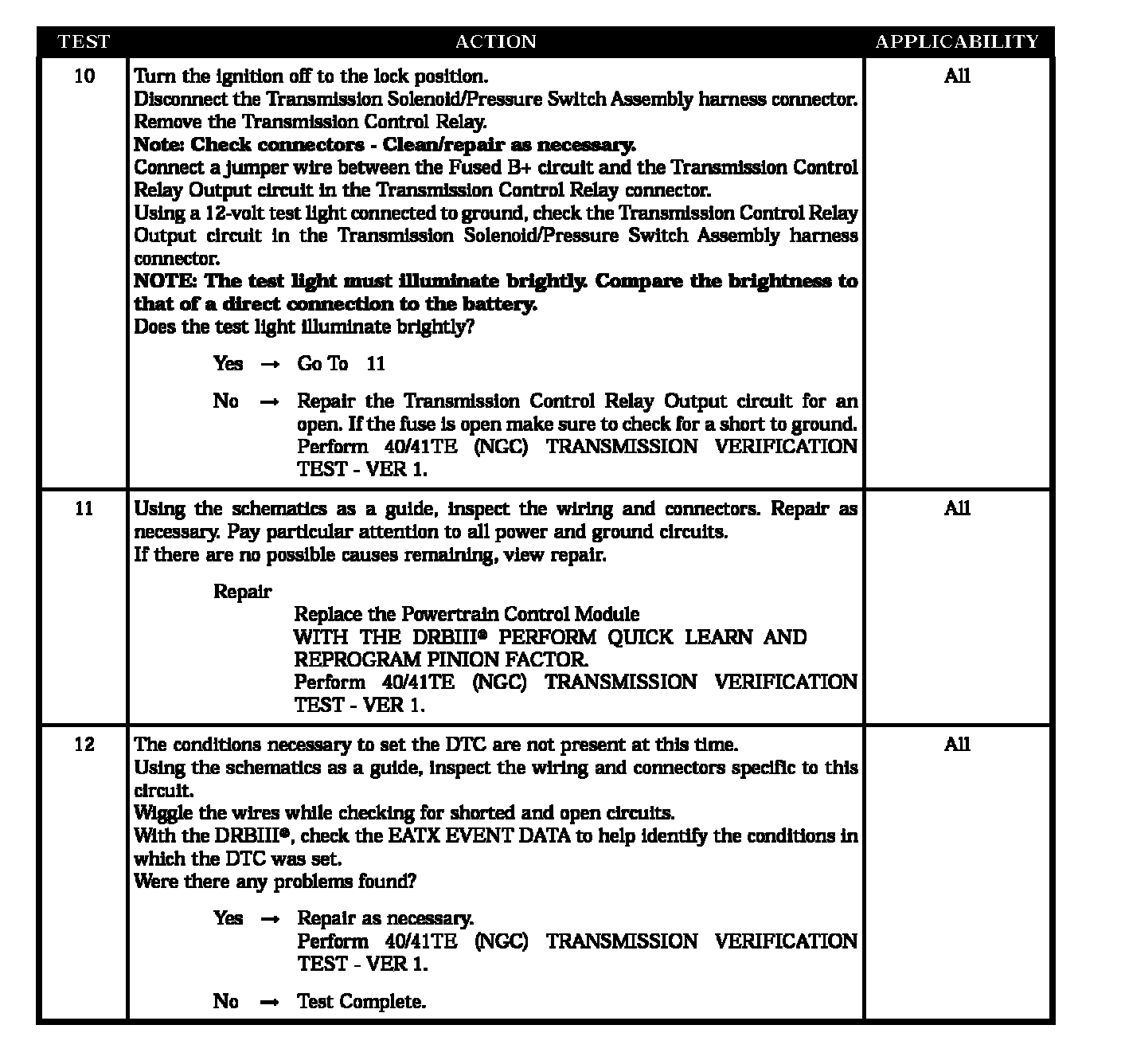

Test 10 - Test 12:
