P0736

Symptom: P0736-GEAR RATIO ERROR IN REVERSE

When Monitored and Set Condition:

When Monitored: The Transmission gear ratio is monitored continuously while the Transmission is in gear.

Set Condition: If the ratio of the Input RPM to the Output RPM does not match the current gear ratio.

POSSIBLE CAUSES
- RELATED DTC's PRESENT
- INTERNAL TRANSMISSION
- INTERMITTENT GEAR RATIO ERRORS

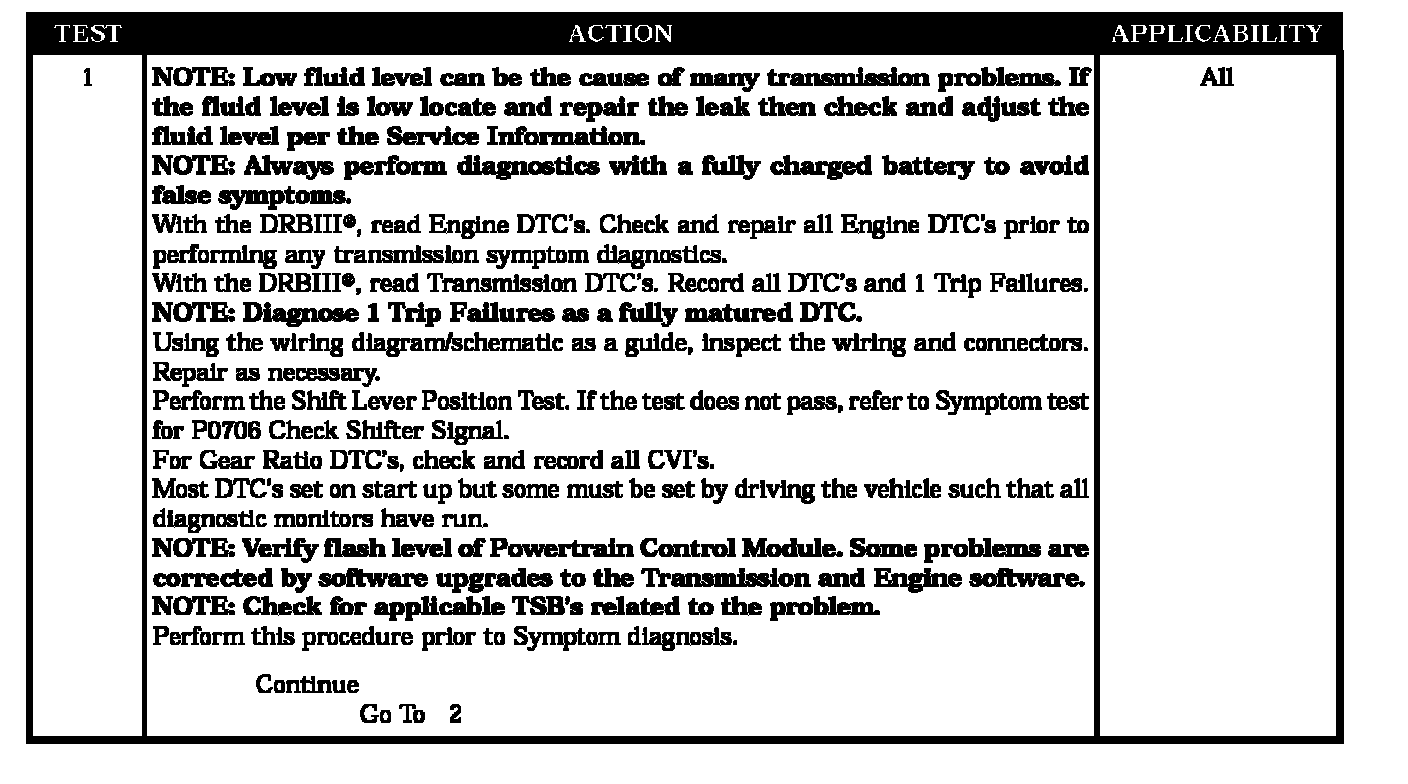

Test 1:

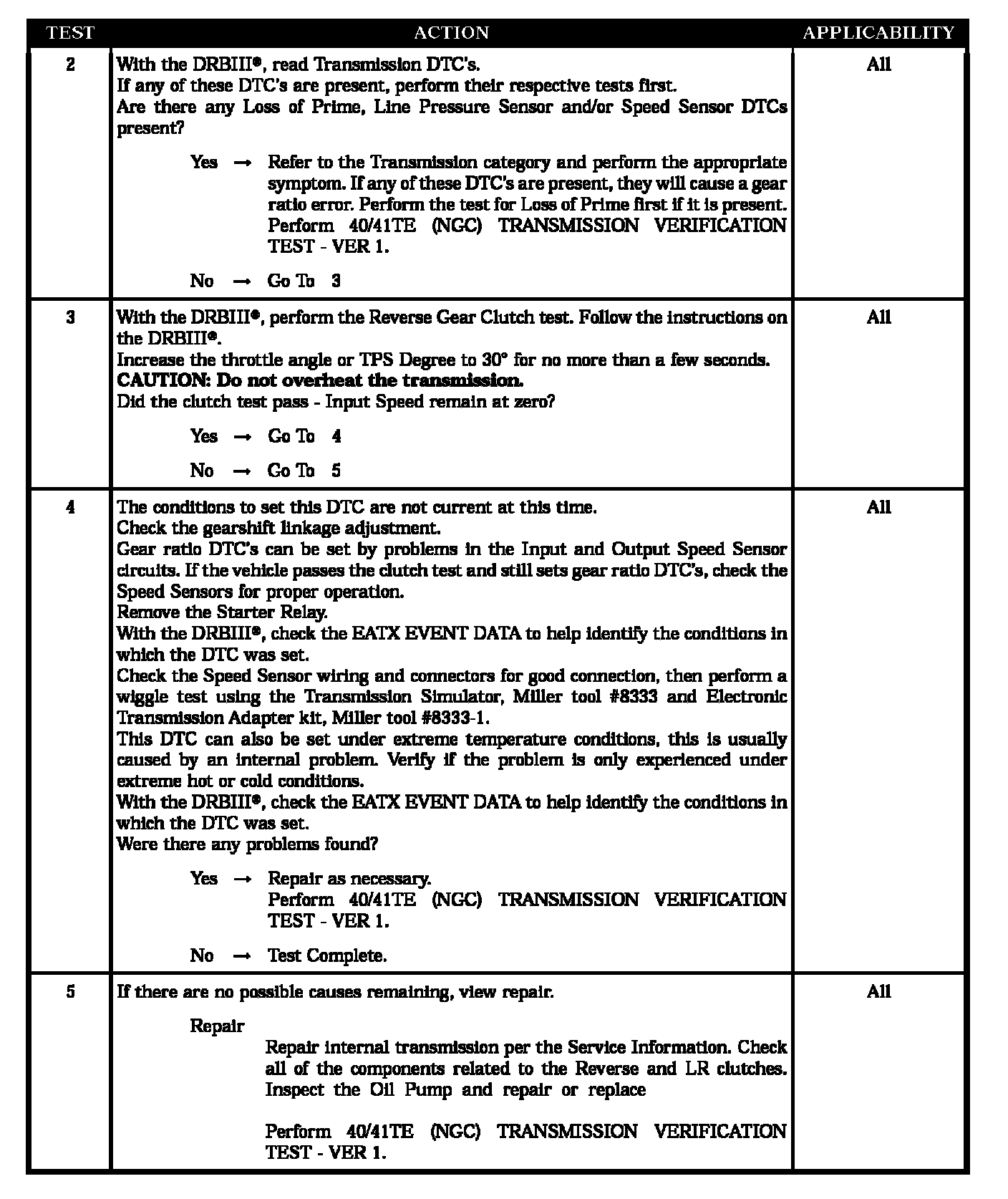

Test 2 - Test 5:
