P0712

Symptom: P0712-TRANSMISSION TEMPERATURE SENSOR LOW

When Monitored and Set Condition:

When Monitored: Continuously with the ignition on and engine running.

Set Condition: The DTC will set when the monitored Temperature Sensor voltage drops below 0.078 volts for the period of 0.45 seconds.

POSSIBLE CAUSES
- RELATED DTC's PRESENT
- TRANSMISSION TEMPERATURE SENSOR SIGNAL CIRCUIT SHORT TO GROUND
- TRANSMISSION TEMPERATURE SENSOR
- POWERTRAIN CONTROL MODULE
- INTERMITTENT WIRING AND CONNECTORS

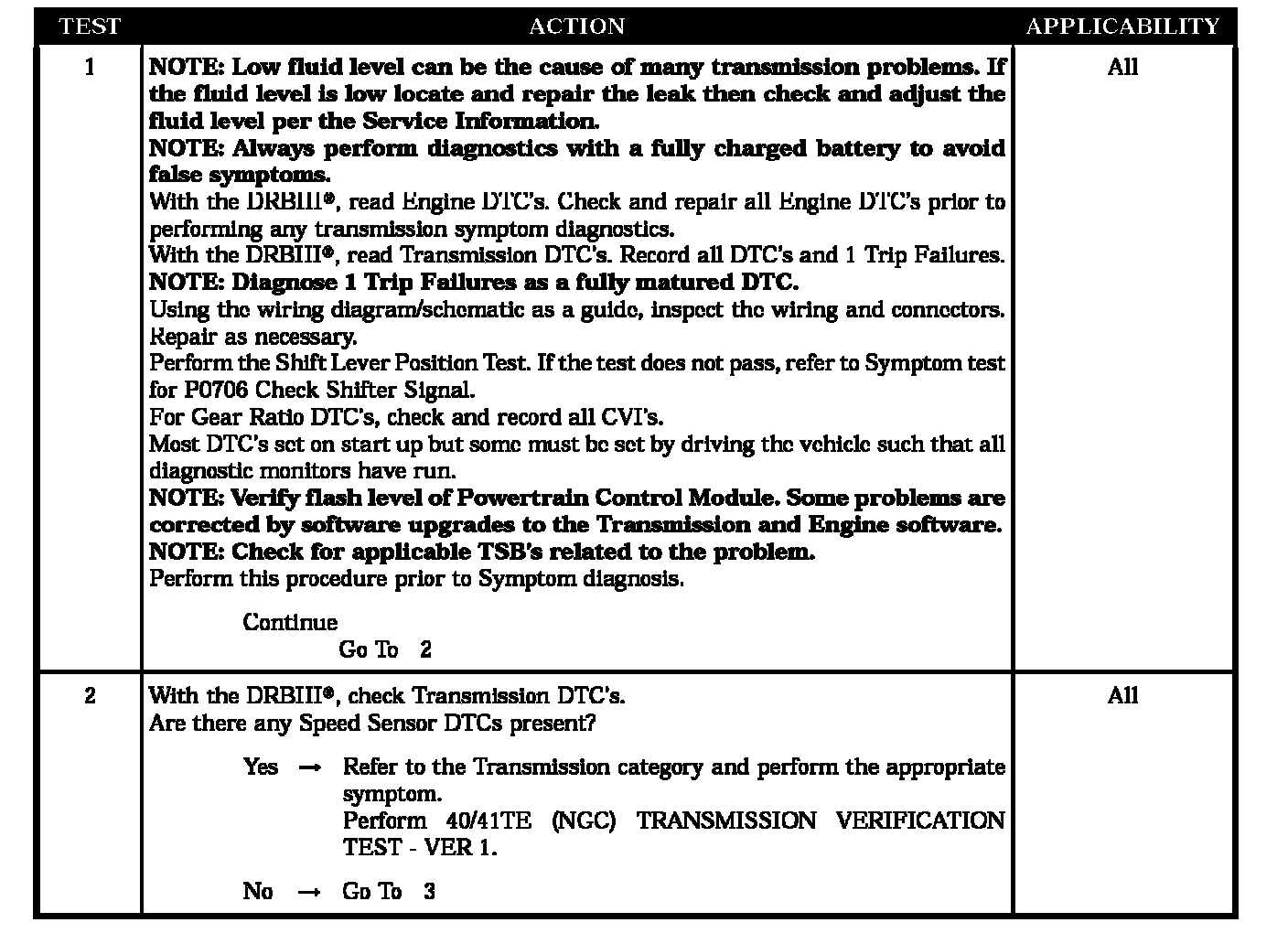

Test 1 - Test 2:

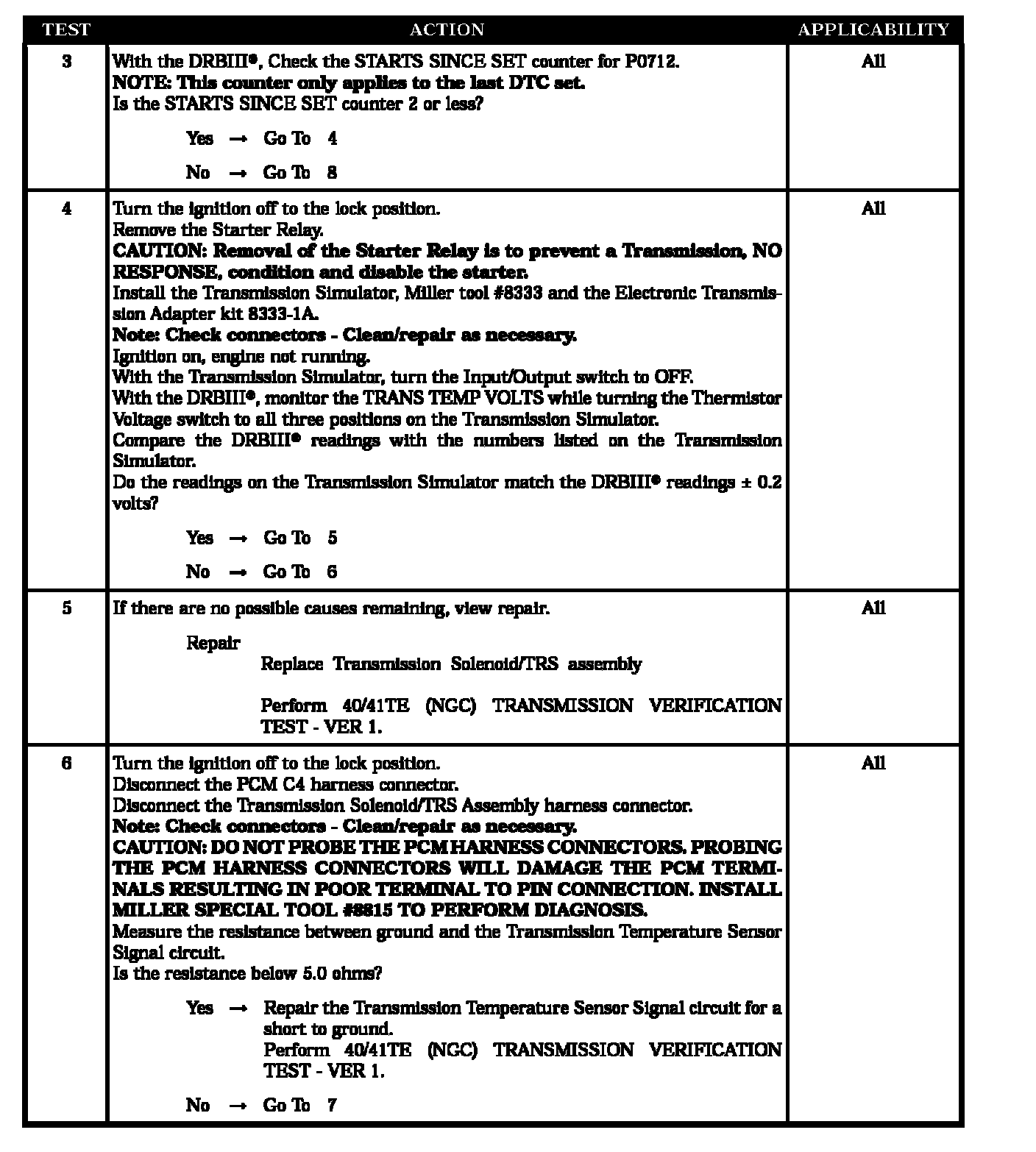

Test 3 - Test 6:

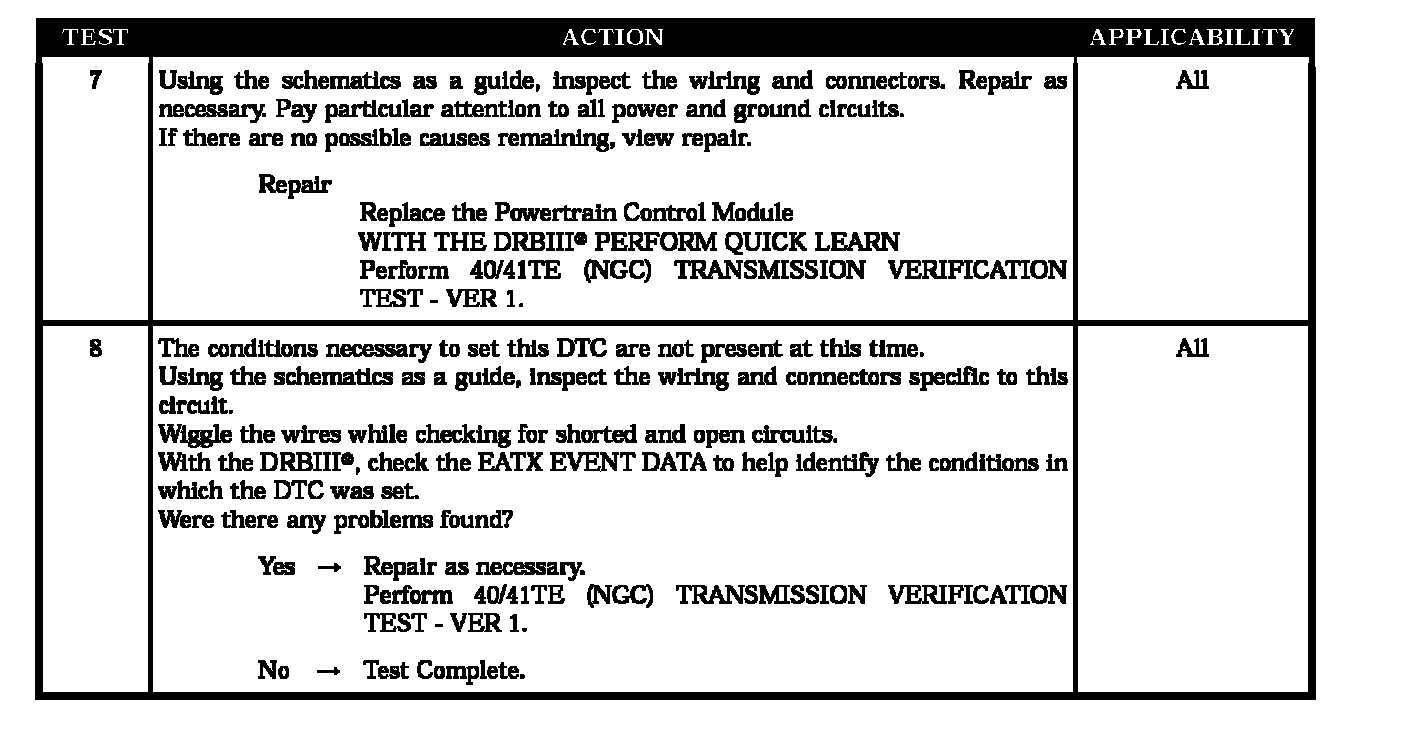

Test 7 - Test 8:
