P0711

Symptom: P0711-TRANSMISSION TEMPERATURE SENSOR PERFORMANCE
When Monitored and Set Condition:

When Monitored: Continuously with the ignition on and engine running.

Set Condition: This DTC will set when the desired transmission temperature does not reach a normal operating temperature within a given time frame. Time is variable due to ambient temperature. Approximate times are starting temperature to warm up time: (-40° F / -40° C - 35 min) (-20° F / -28° C - 25 min) (20° F / -6.6° C - 20 min) (60° F / 15.5° C - 10 min)

POSSIBLE CAUSES
- RELATED DTC's PRESENT
- TRANSMISSION TEMPERATURE SENSOR
- POWERTRAIN CONTROL MODULE
- INTERMITTENT WIRING AND CONNECTORS

Test 1:

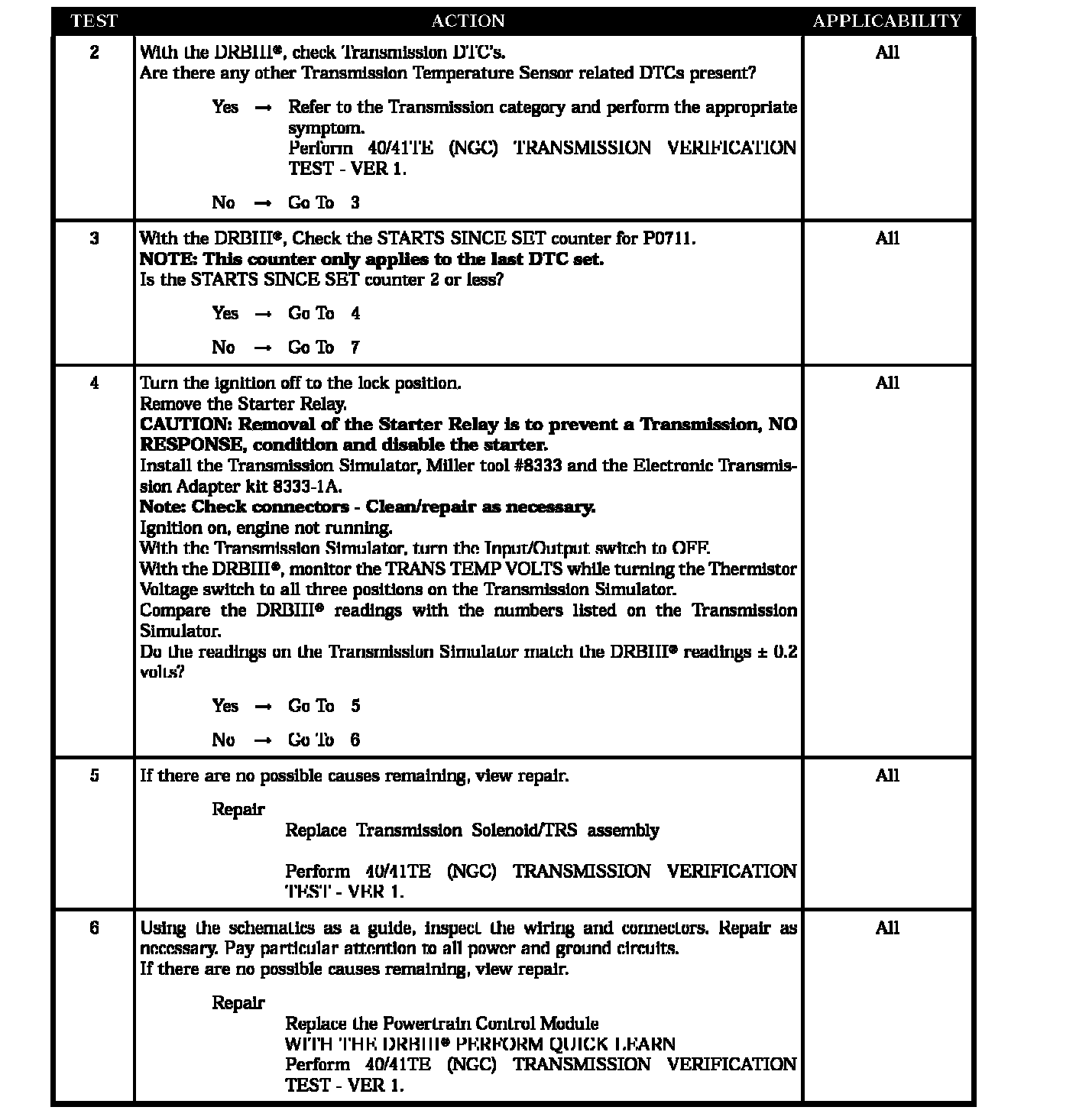

Test 2 - Test 6:

Test 7:
