P0513

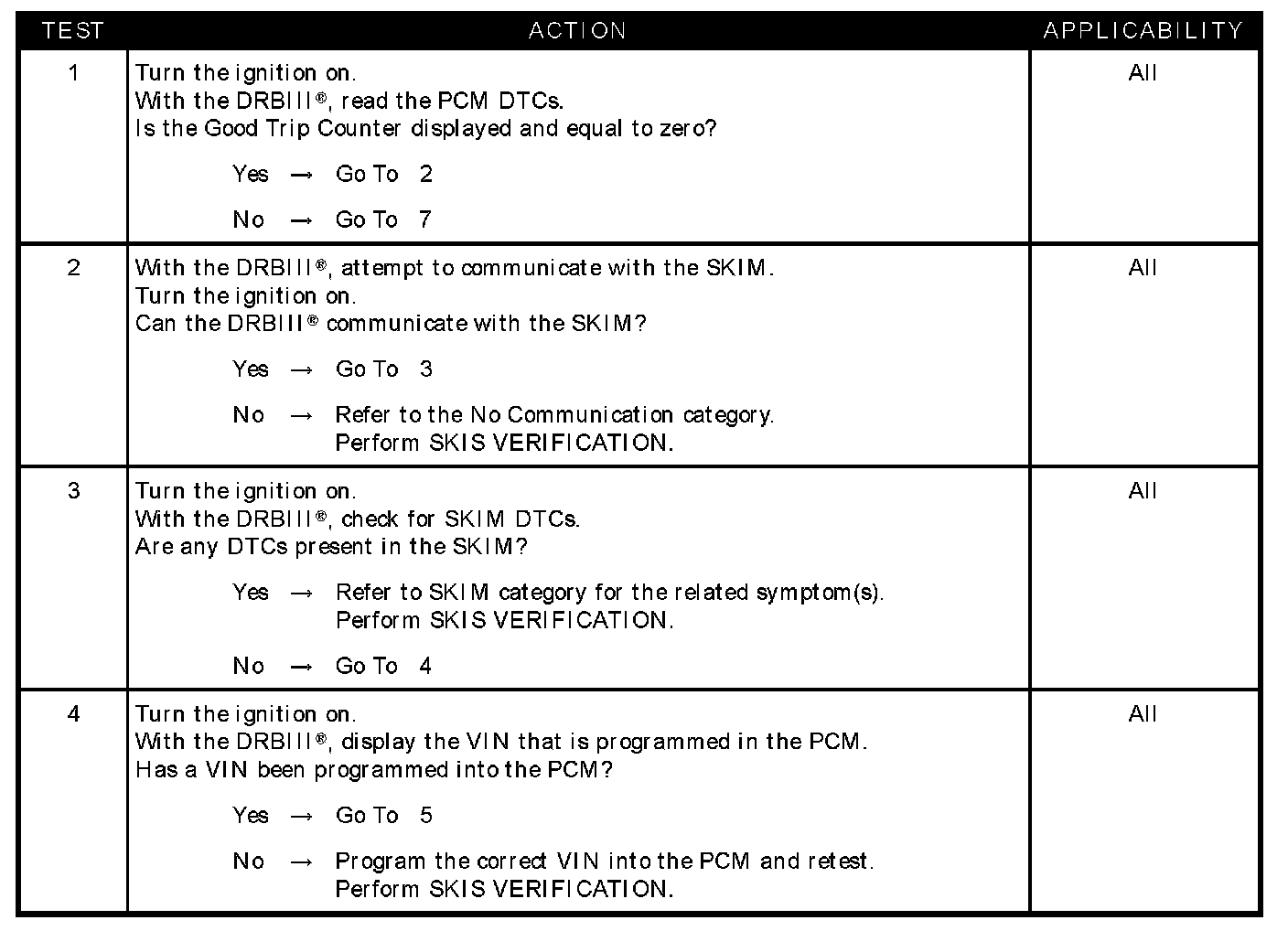

Test 1 - Test 4:

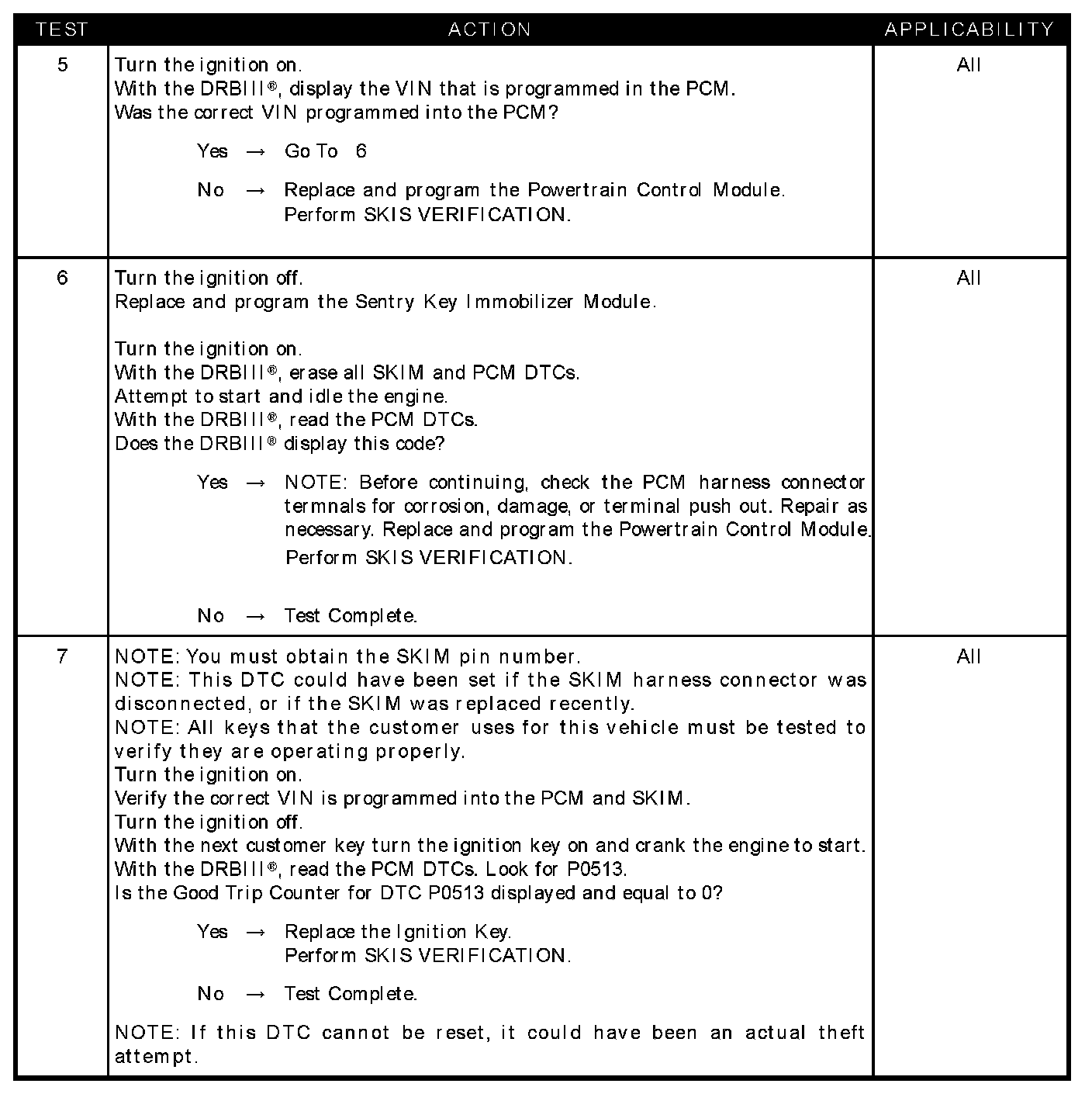

Test 5 - Test 7:

SYMPTOM
P0513-INVALID SKIM KEY

WHEN MONITORED
Ignition on.

SET CONDITION
The PCM detects an invalid SKIM key.

POSSIBLE CAUSES
- Incorrect VIN in PCM
- Invalid skim key not present
- No communication with skim
- No VIN programmed in the PCM
- PCM
- SKIM trouble codes set
