P0498

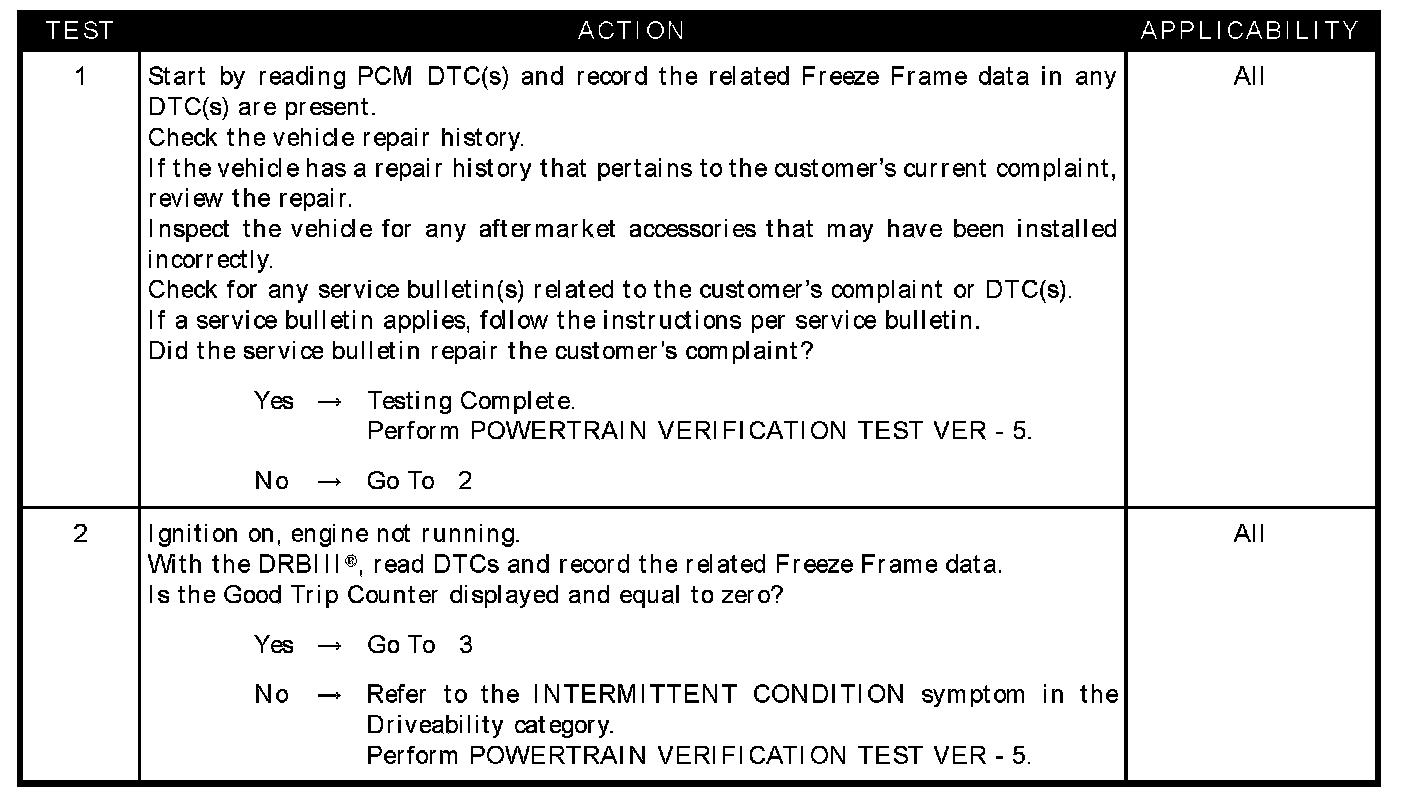

Test 1 - Test 2:

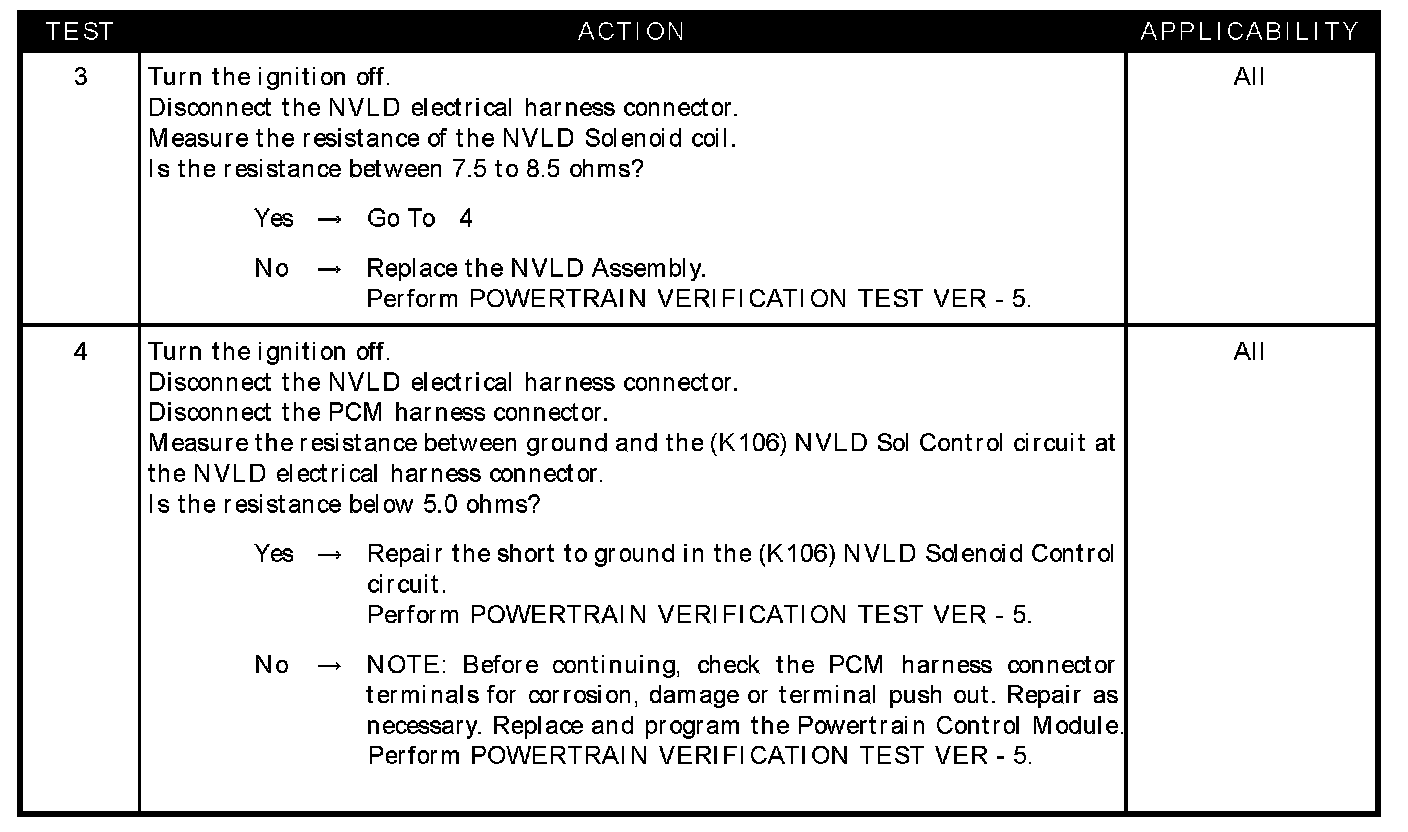

Test 3 - Test 4:

SYMPTOM
P0498-NVLD CANISTER VENT VALVE SOLENOID CIRCUIT LOW

WHEN MONITORED
Engine Running.

SET CONDITION
The PCM detects a short in the NVLD Canister vent solenoid circuits. One trip Fault.

POSSIBLE CAUSES
- Vehicle history and service bulletin investigation
- Good trip equal to zero
- NVLD solenoid
- (K106) NVLD solenoid control circuit short to ground
- PCM
