P0404

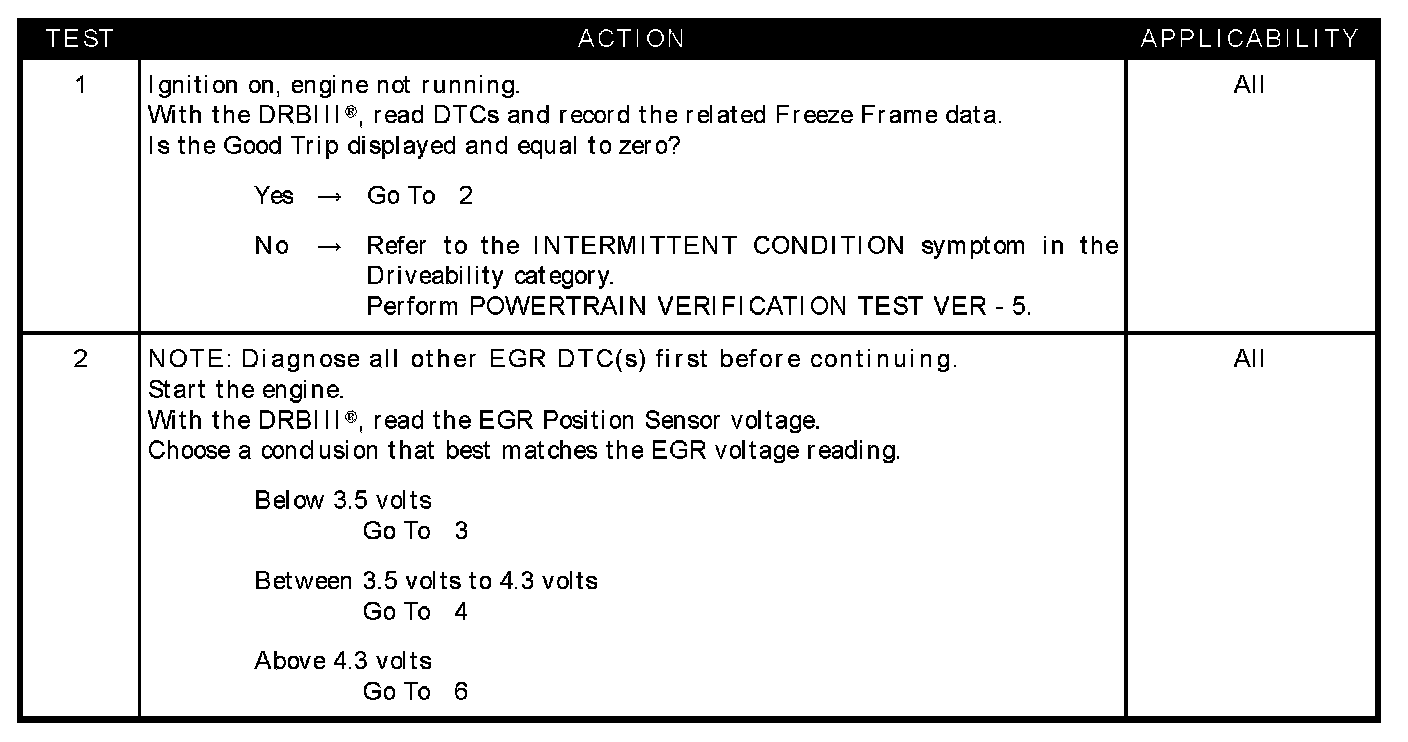

Test 1 - Test 2:

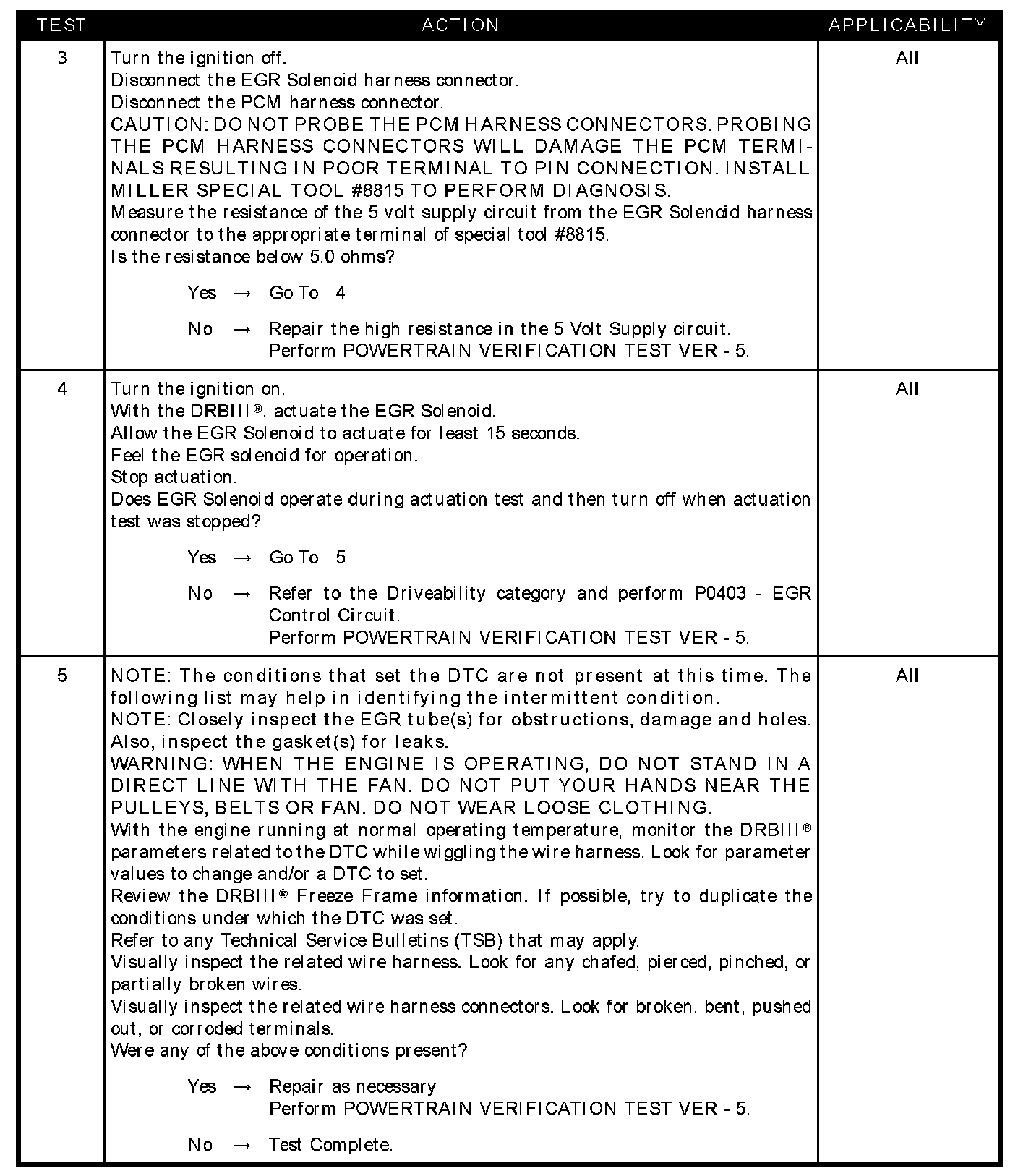

Test 3 - Test 5:

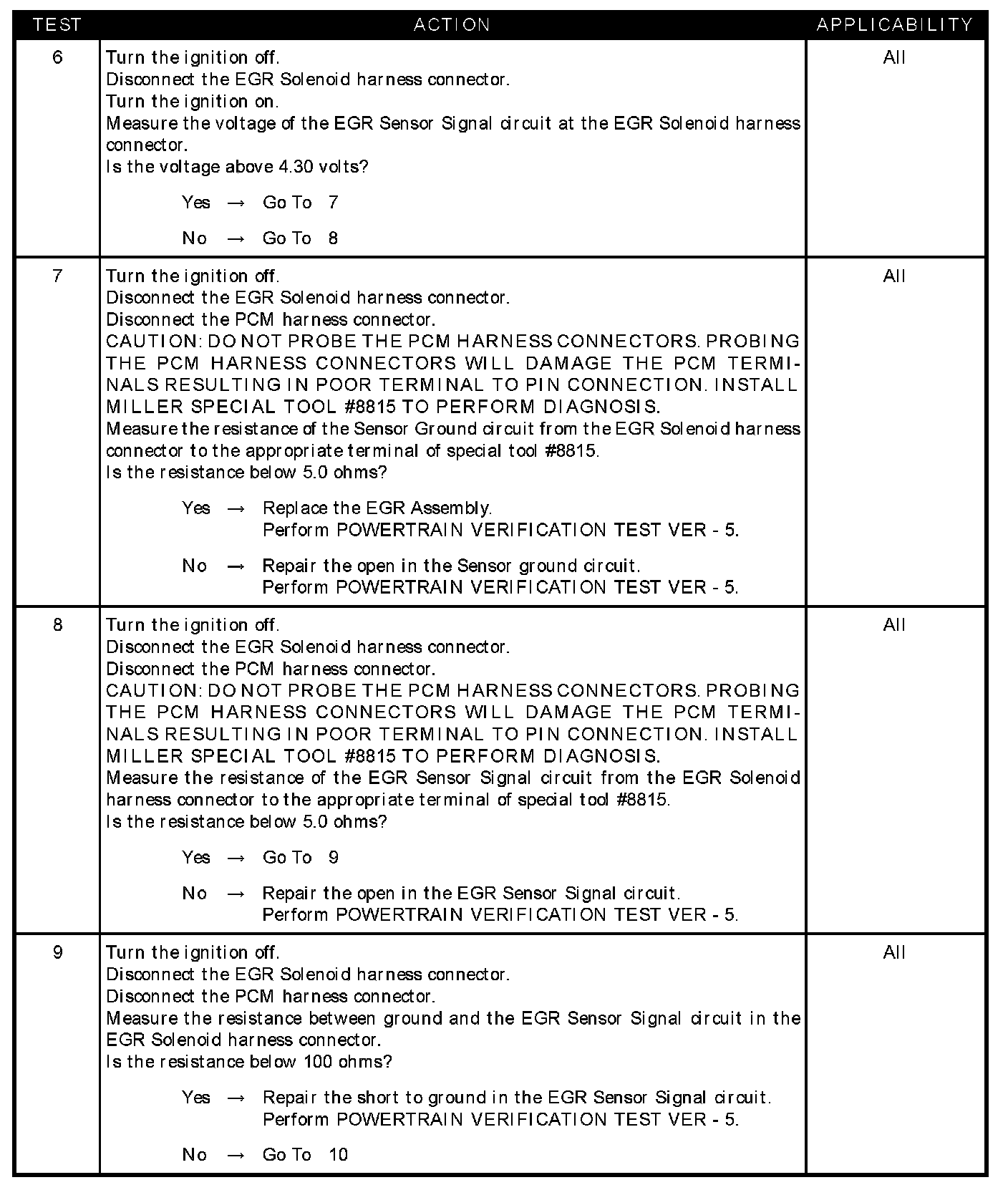

Test 6 - Test 9:

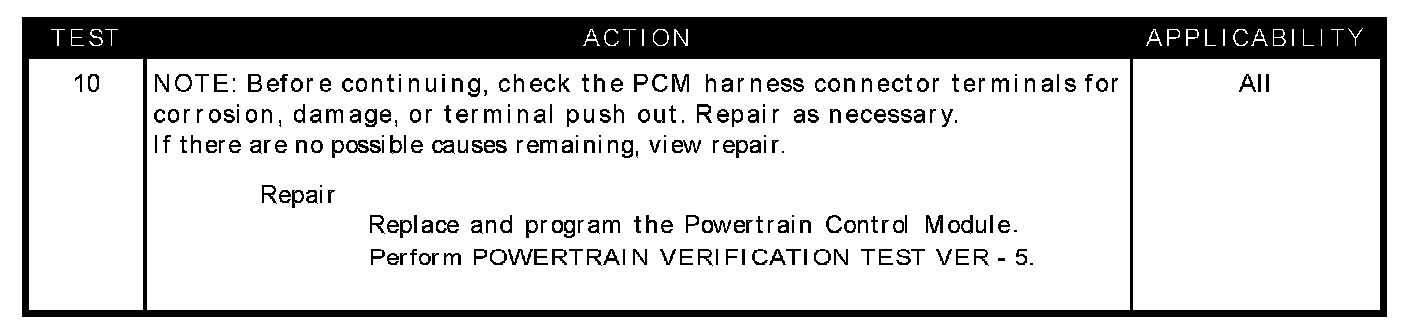

Test 10:

SYMPTOM
P0404 - EGR POSITION SENSOR PERFORMANCE

SET CONDITION
The EGR flow or valve movement is not what is expected.

POSSIBLE CAUSES
- Good trip equal to zero
- High resistance in 5 volt supply
- EGR solenoid control CKT
- Intermittent condition
- EGR sensor signal circuit open
- EGR sensor signal circuit shorted to ground
- Sensor ground circuit open
- EGR assembly (GROUND)
- PCM
