P0335

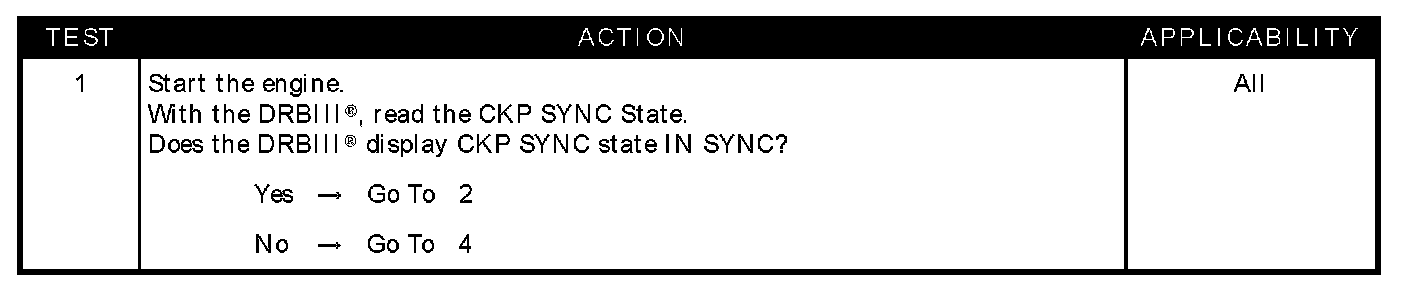

Test 1:

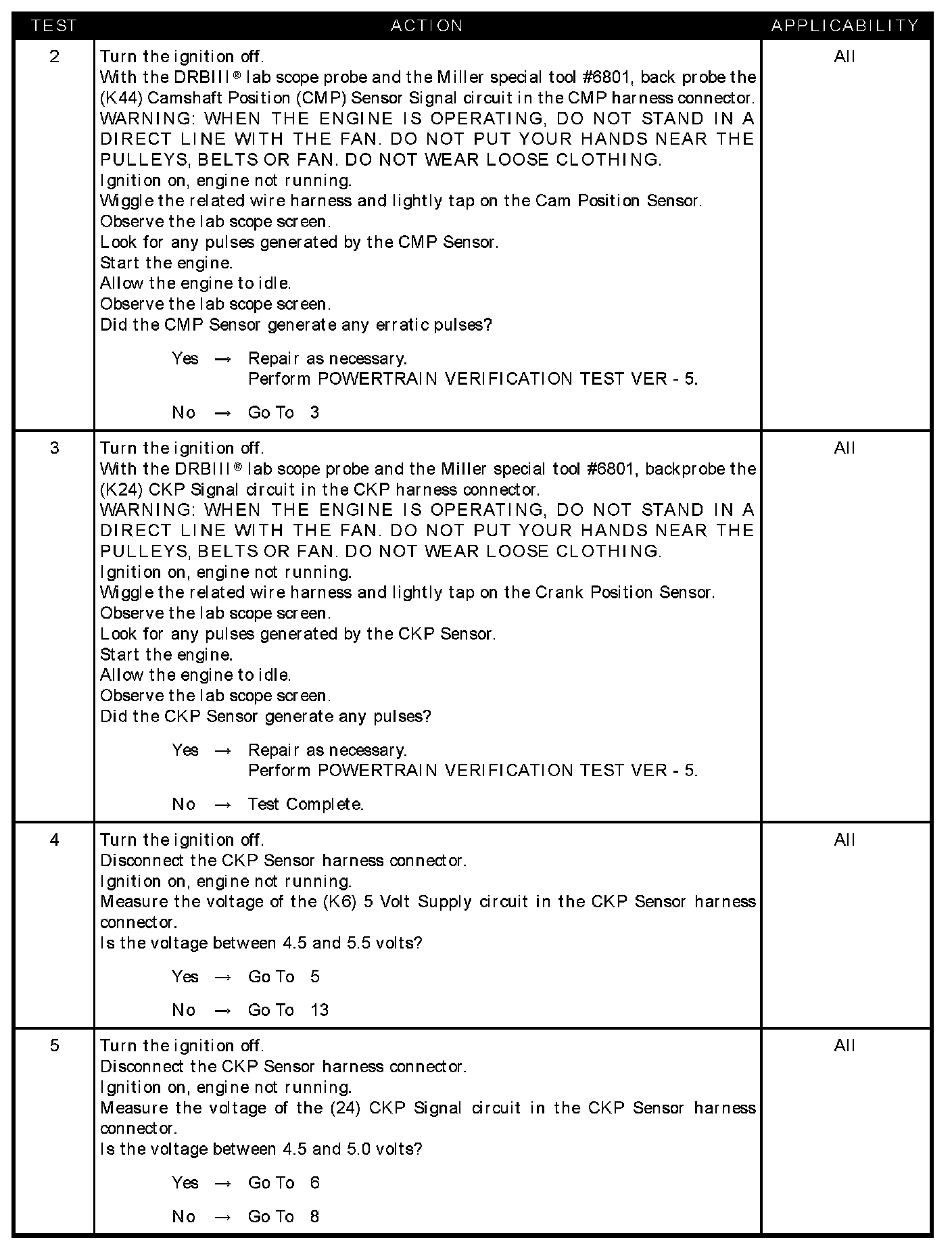

Test 2 - Test 5:

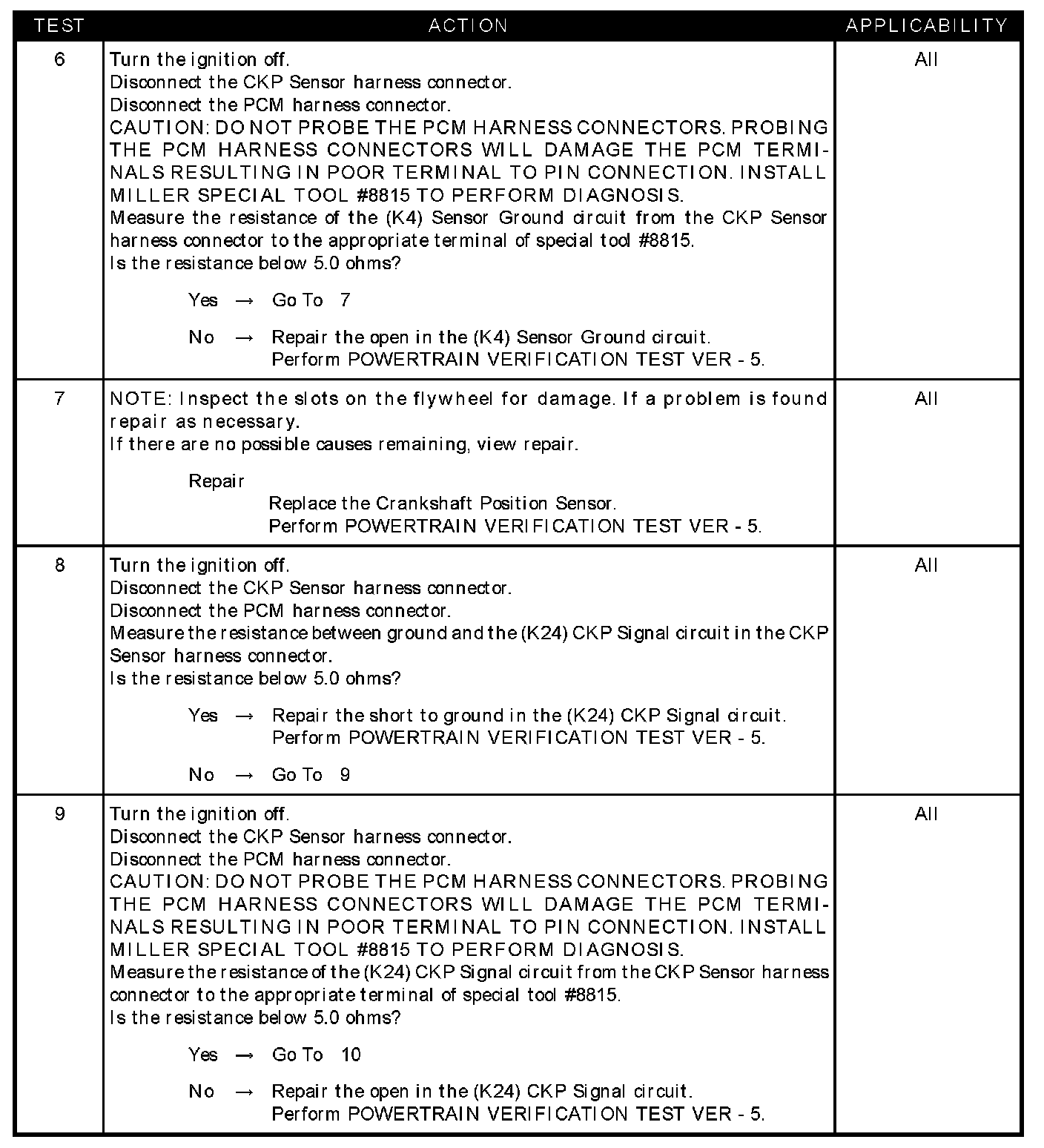

Test 6 - Test 9:

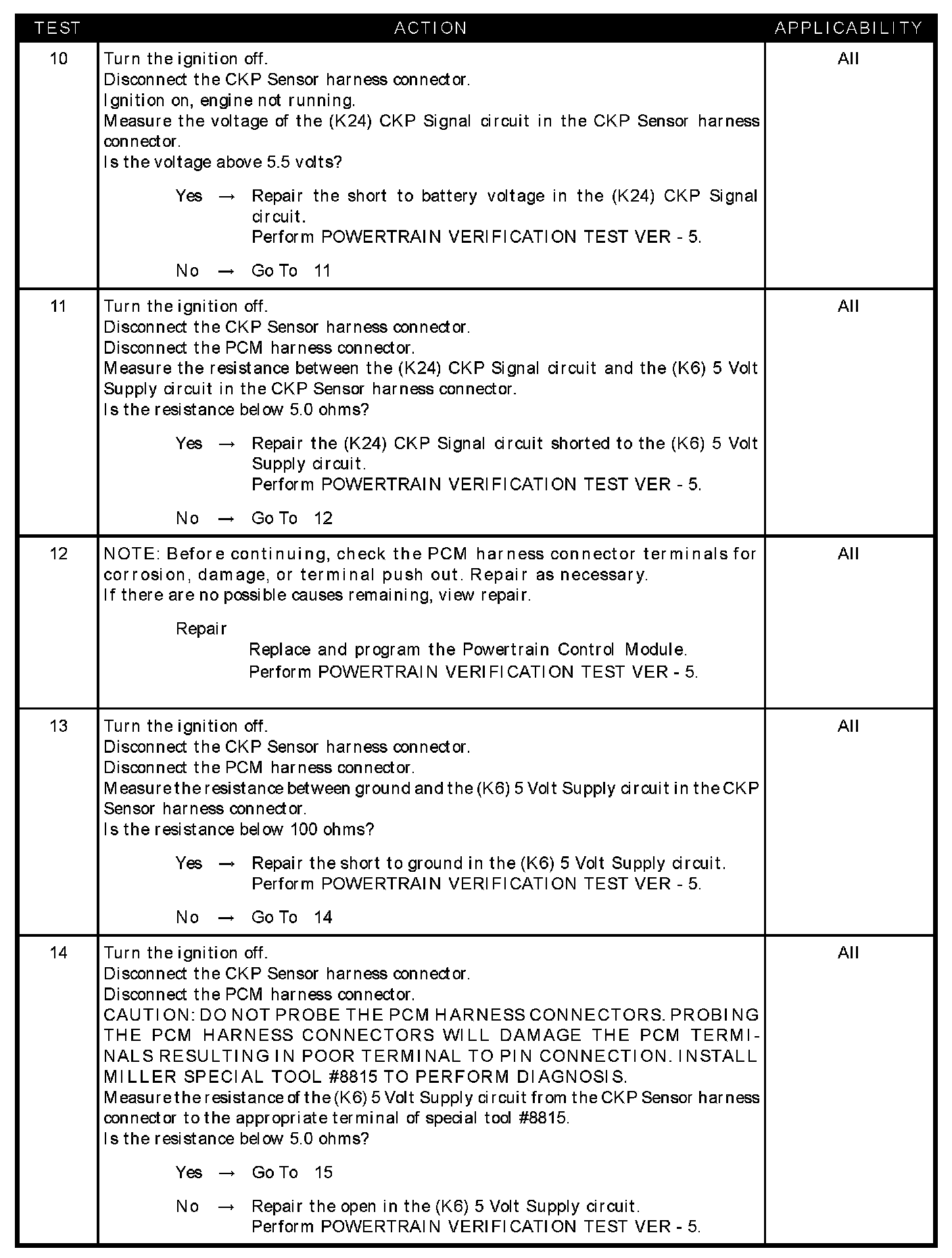

Test 10 - Test 14:

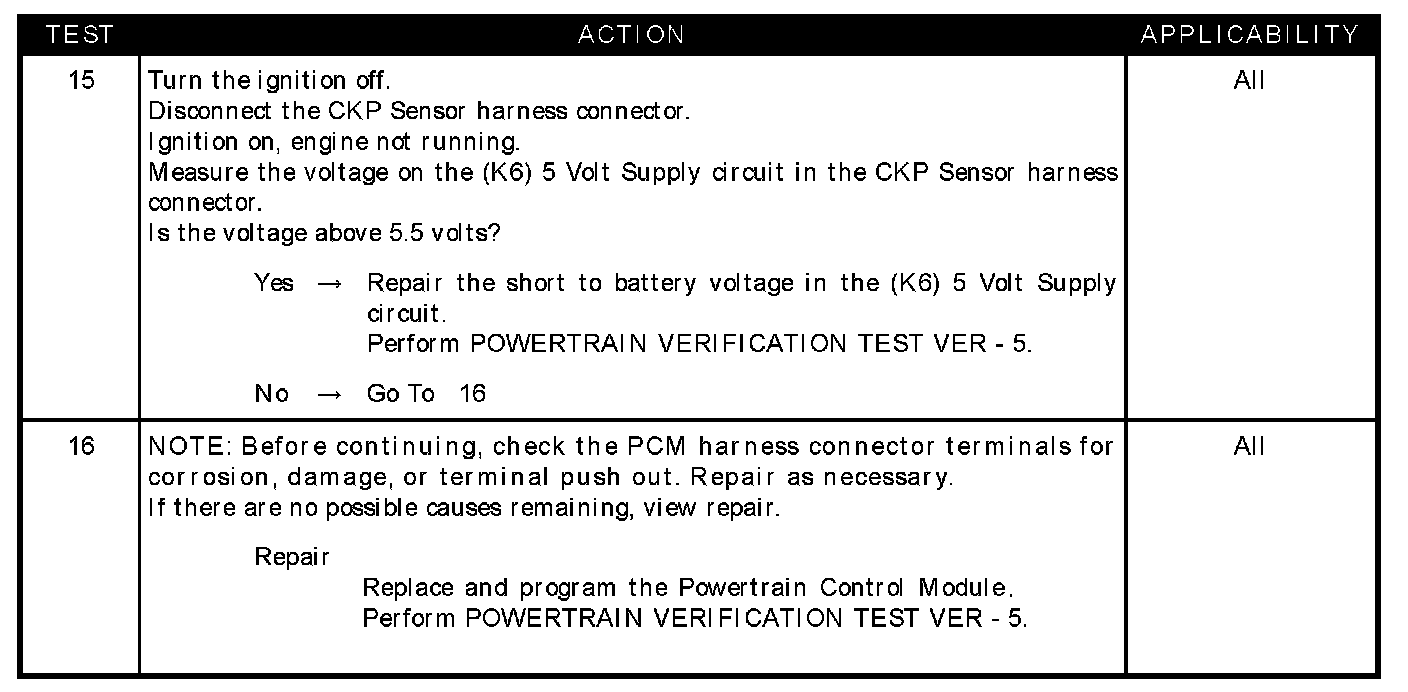

Test 15 - Test 16:

SYMPTOM
P0335-CRANKSHAFT POSITION SENSOR CIRCUIT

WHEN MONITORED
Engine cranking.

SET CONDITION
No CKP signal is present during engine cranking, and at least 8 camshaft position sensor signals have occurred. One trip fault.

POSSIBLE CAUSES
- Checking intermittent CMP signal with lab
- Intermittent CKP signal
- (K6) 5 volt supply circuit shorted to ground
- (K6) 5 volt supply circuit open
- (K6) 5 volt supply circuit shorted to voltage
- (K24) CKP signal circuit shorted ground
- (K24) CKP signal circuit open
- (K24) CKP signal circuit shorted to voltage
- (K24) CKP signal shorted to (K6) 5 volt supply circuit
- (K4) Sensor ground circuit open
- PCM - (K6) 5 volt supply
- PCM - (K24) CKP signal
- Crankshaft position sensor
