P0218

Symptom: P0218-HIGH TEMPERATURE OPERATION ACTIVATED
When Monitored and Set Condition:

When Monitored: Whenever the engine is running.

NOTE: This is an informational DTC designed to aid the technician in diagnosing shift quality complaints.

Set Condition: Immediately when a Overheat shift schedule is activated when the Transmission Oil Temperature reaches 155° C or 240° F.

POSSIBLE CAUSES
- ENGINE COOLING SYSTEM MALFUNCTION
- TRANSMISSION OIL COOLER PLUGGED
- HIGH TEMPERATURE OPERATIONS ACTIVATED

Test 1 - Test 2:

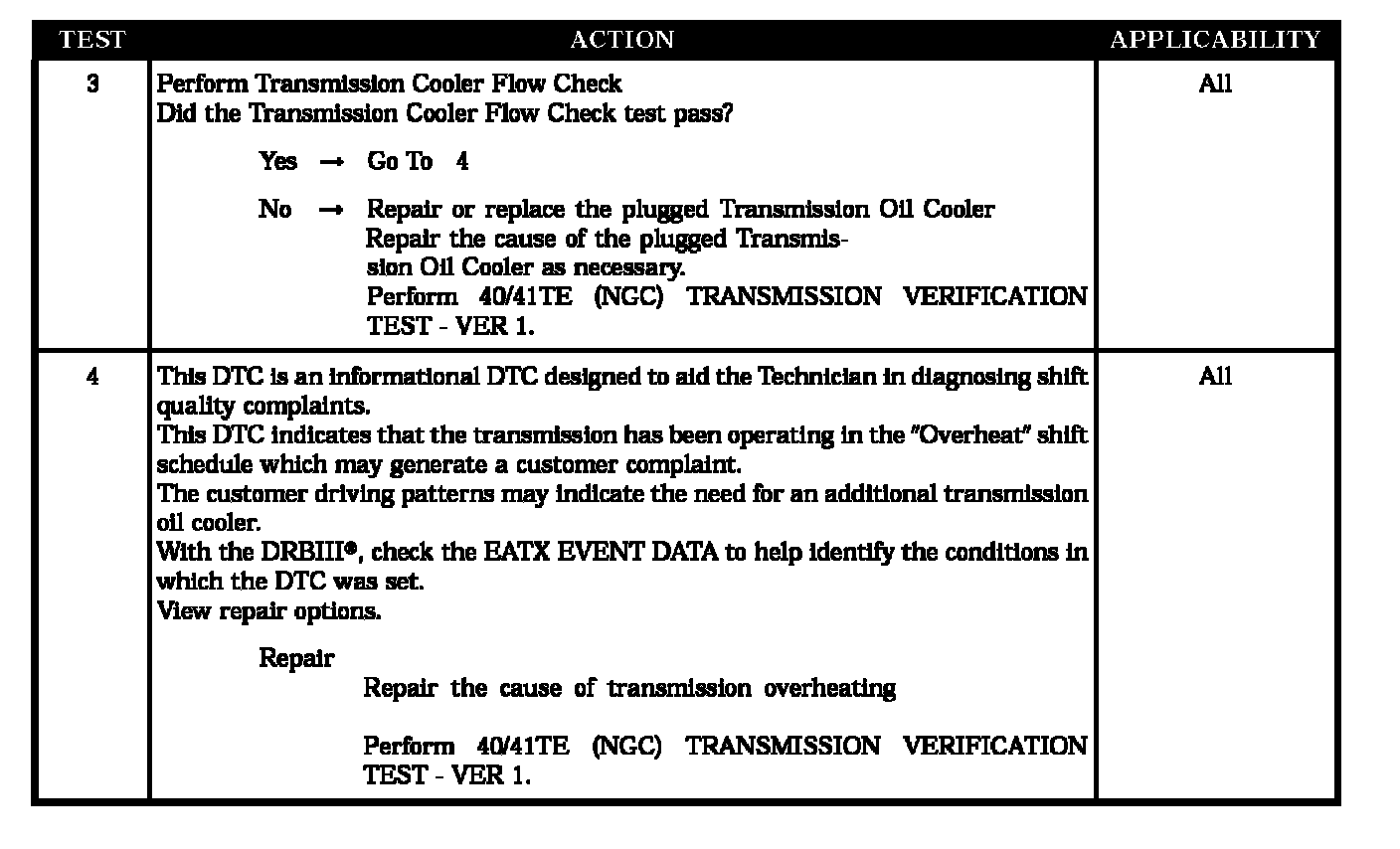

Test 3 - Test 4:
