P0153

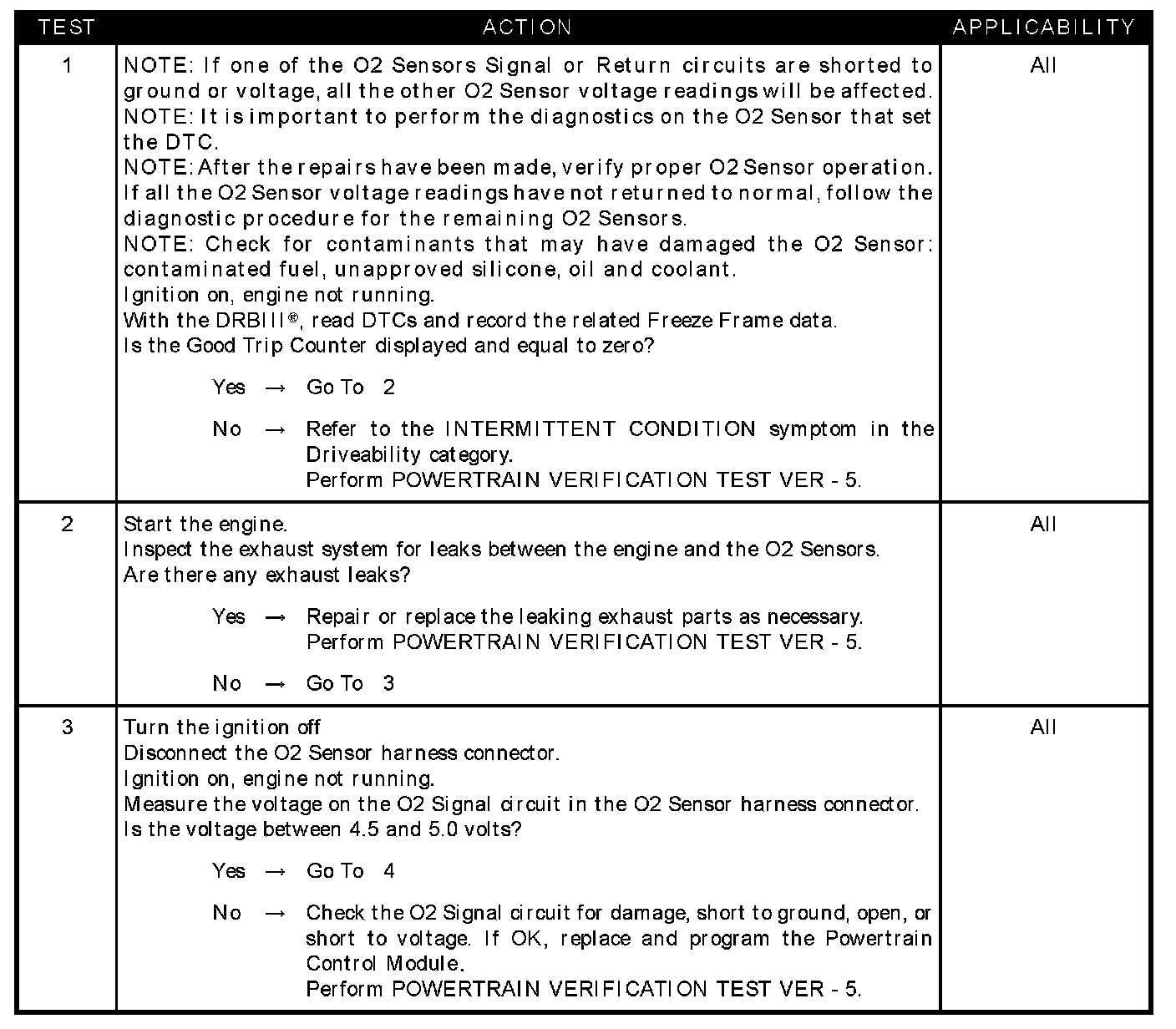

Test 1 - Test 3:

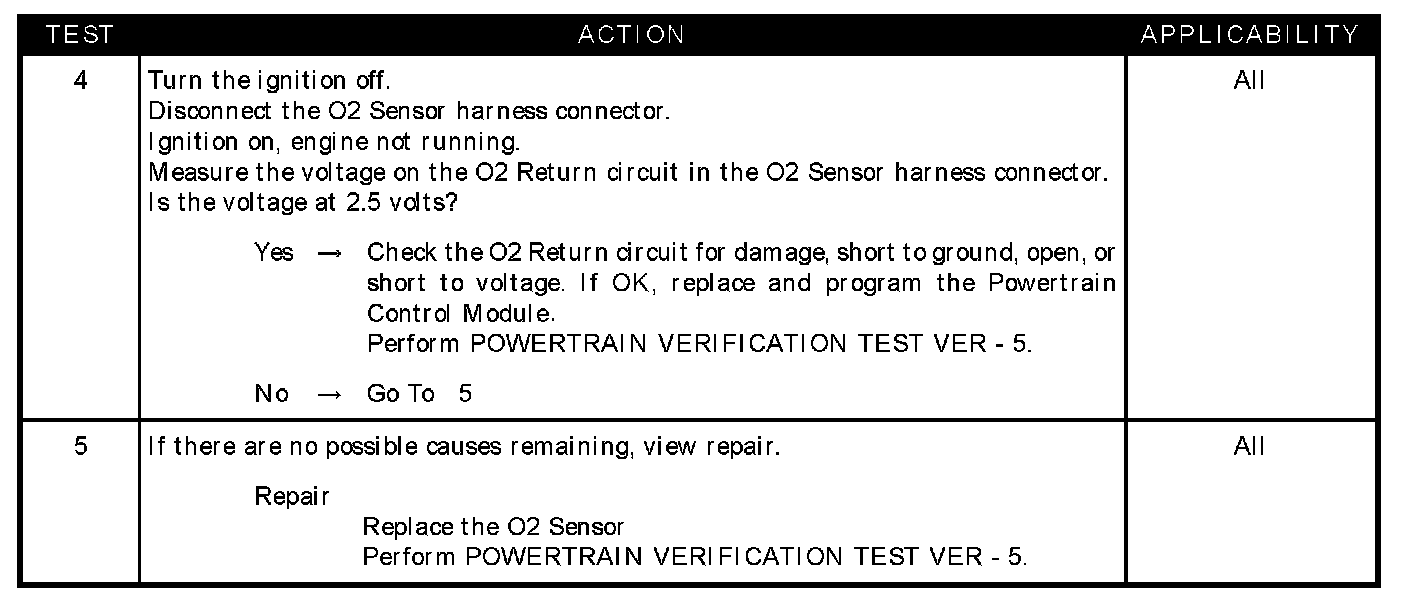

Test 4 - Test 5:

SYMPTOM
P0153-O2 SENSOR 2/1 SLOW RESPONSE

TEST NOTE
This symptom is diagnosed using the test P0133-O2 SENSOR 1/1 SLOW RESPONSE

WHEN MONITORED
Start and drive vehicle greater than 20 MPH and less than 55 MPH. Throttle open for a minimum 120 seconds. Coolant Temp greater than 70° C (158° F) Catalytic Converter Temperature greater than 600° C

SET CONDITION
The O2 sensor voltage switches only 16 times for a 3.5L or 11 times for 2.7L or less from lean to rich within 20 second during monitoring. Two Trip Fault.

POSSIBLE CAUSES
- Good trip equal to zero
- Exhaust leak
- O2 signal circuit
- O2 return circuit
- O2 sensor
