P0124

Symptom: P0124-THROTTLE POSITION SENSOR/APPS INTERMITTENT
When Monitored and Set Condition:

When Monitored: Continuously with the ignition on and engine running.
Set Condition: This DTC will set if the monitored TPS throttle angle between the angles of 6° and 120° and the degree change is greater than 5° within a period of less than 7.0 ms.

POSSIBLE CAUSES
- RELATED TPS ENGINE DTC's PRESENT
- THROTTLE POSITION SENSOR
- POWERTRAIN CONTROL MODULE
- INTERMITTENT WIRING AND CONNECTORS

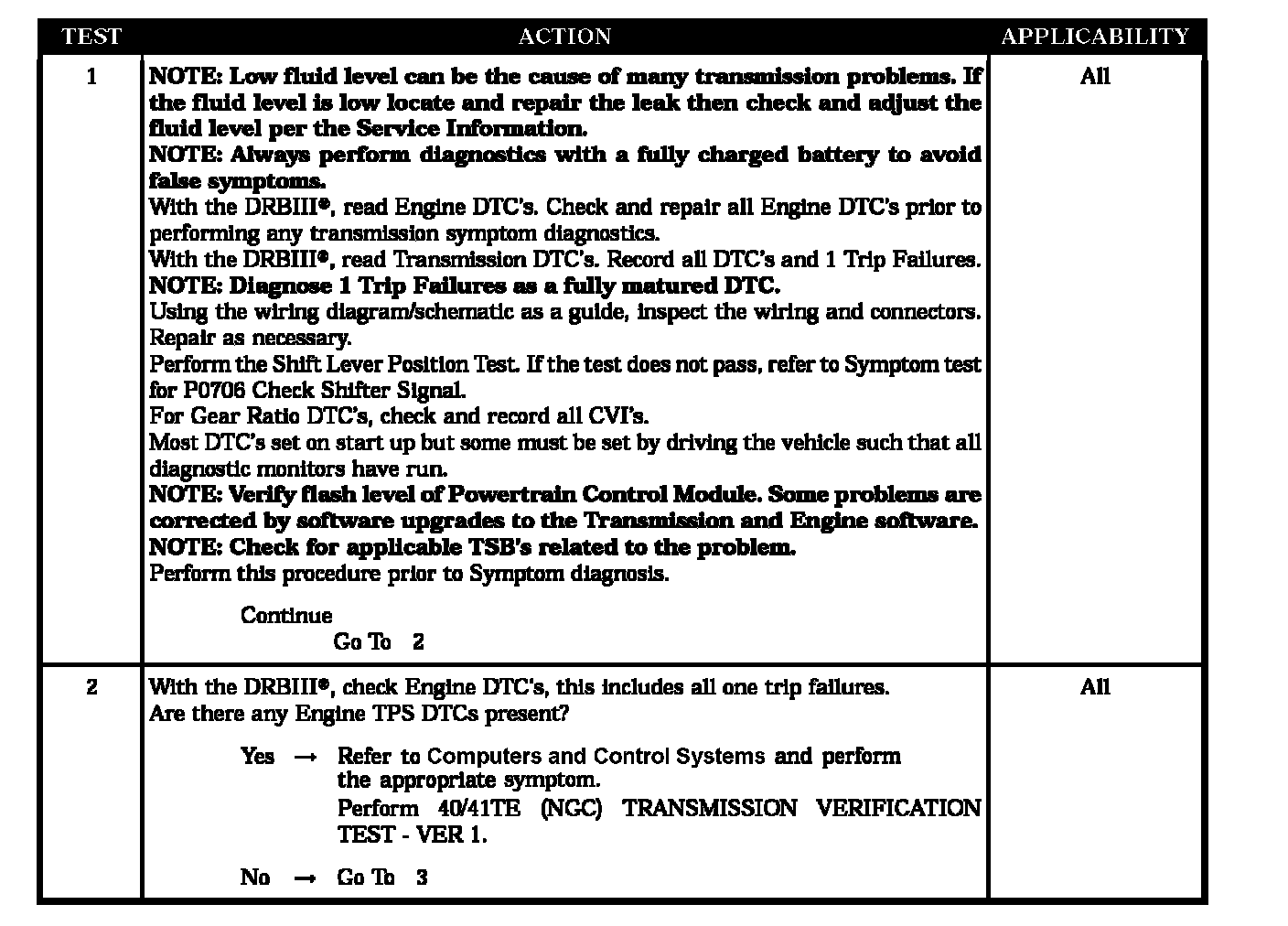

Test 1 - Test 2:

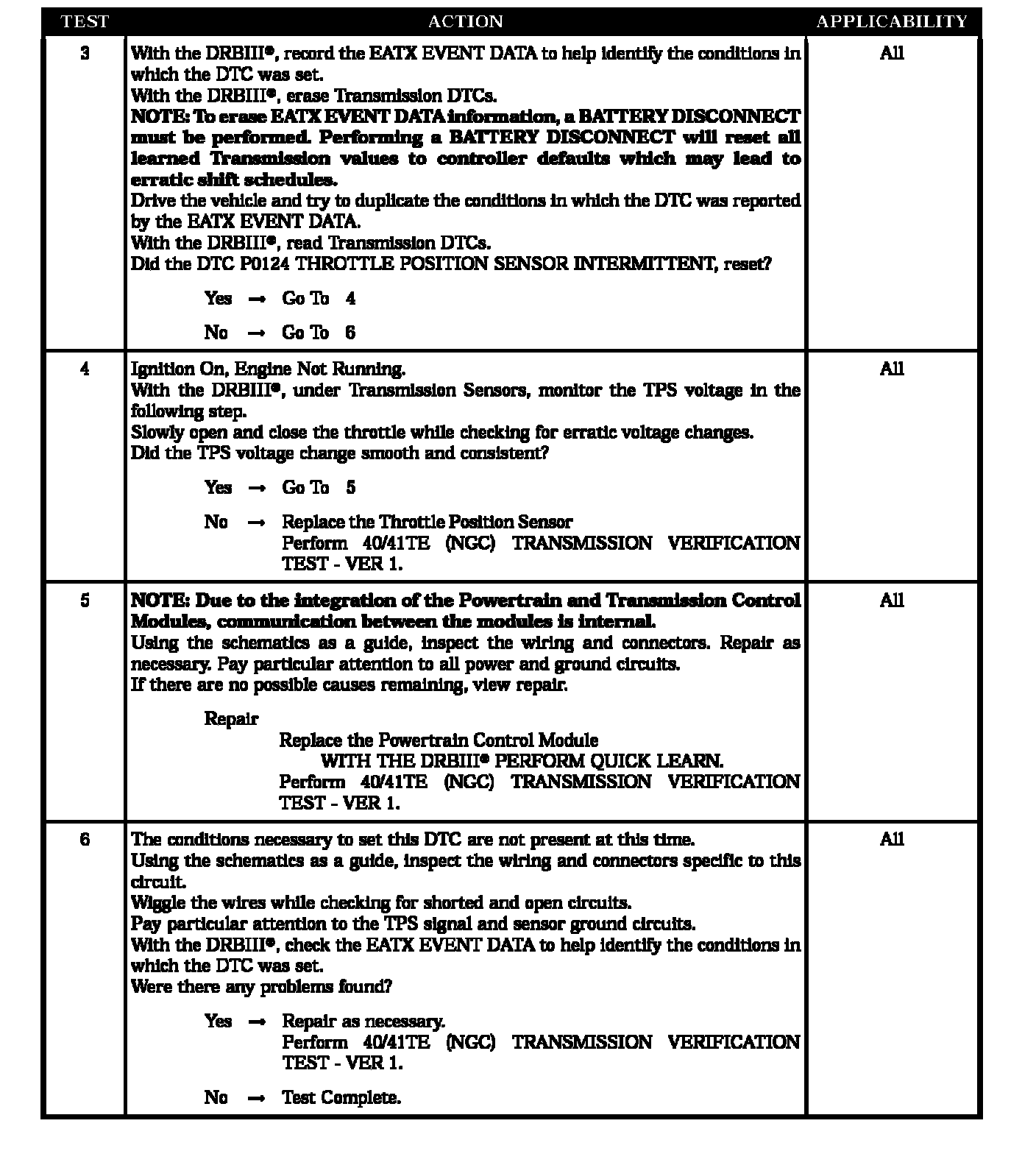

Test 3 - Test 6:
