Transmission Code

Symptom: P0123-THROTTLE POSITION SENSOR/APPS HIGH

When Monitored and Set Condition:

When Monitored: Continuously with the ignition on and engine running.
Set Condition: This DTC will set if the monitored TPS voltage rises above 4.94 volts for the period of 0.48 seconds.

POSSIBLE CAUSES
- RELATED TPS ENGINE DTC's PRESENT
- POWERTRAIN CONTROL MODULE
- INTERMITTENT WIRING AND CONNECTORS

Test 1 - Test 2:

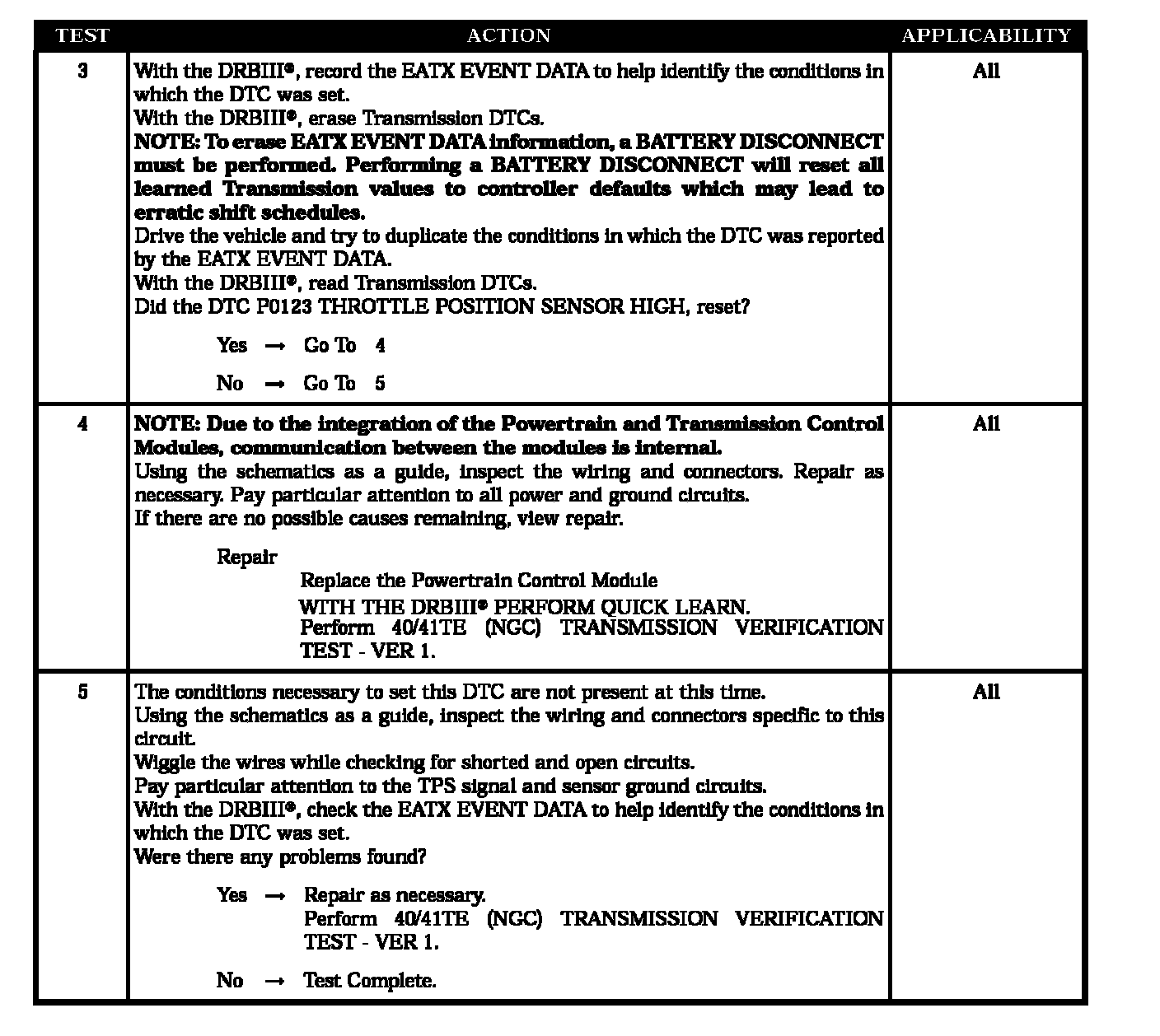

Test 3 - Test 5:
