Transmission Code

Symptom: P0122-THROTTLE POSITION SENSOR/APPS LOW

When Monitored and Set Condition:

When Monitored: Continuously with the ignition on and engine running.
Set Condition: This DTC will set if the monitored TPS voltage drops below 0.078 volts for the period of 0.48 seconds.

POSSIBLE CAUSES
- RELATED TPS ENGINE DTC's PRESENT
- POWERTRAIN CONTROL MODULE
- INTERMITTENT WIRING AND CONNECTORS

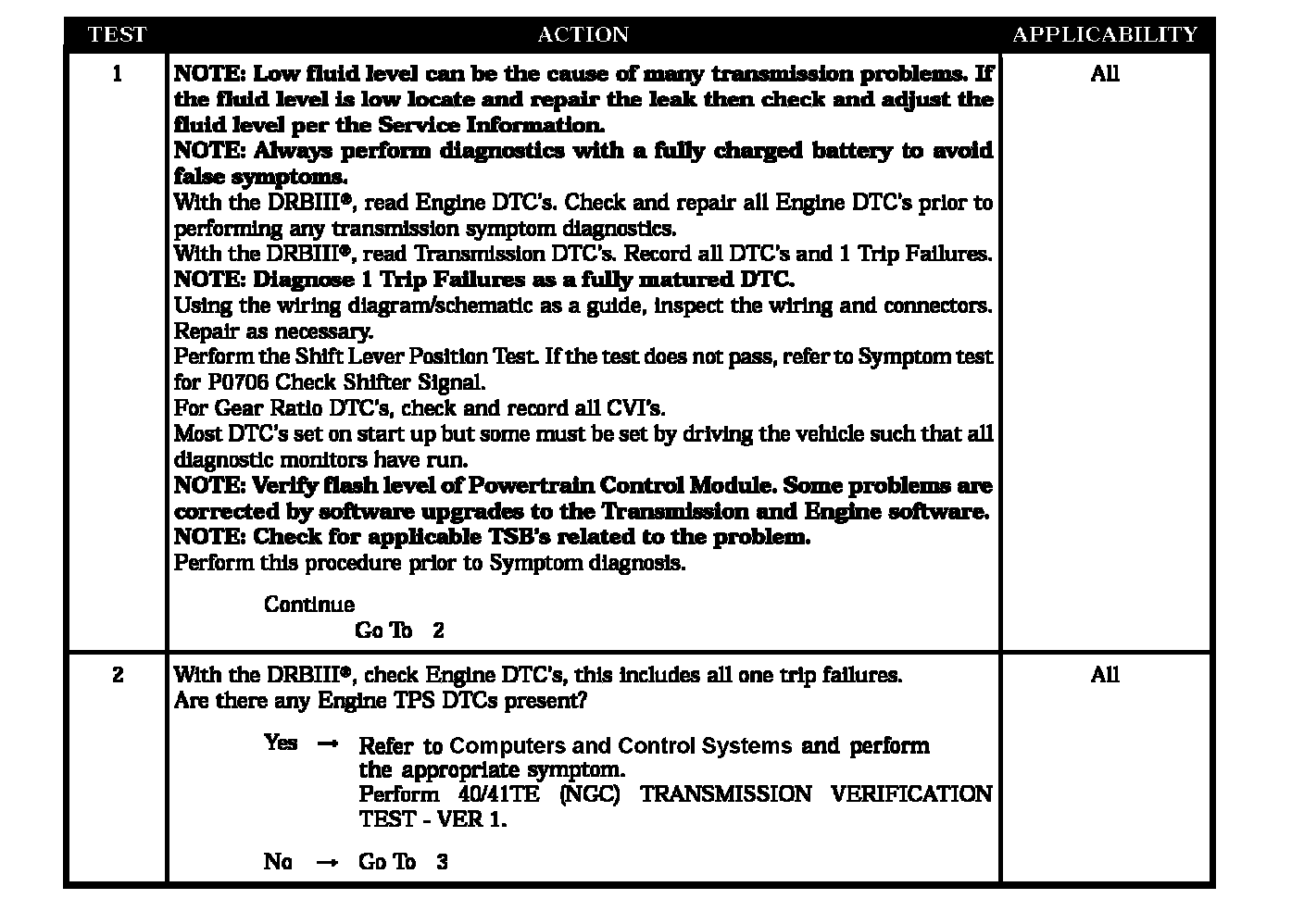

Test 1 - Test 2:

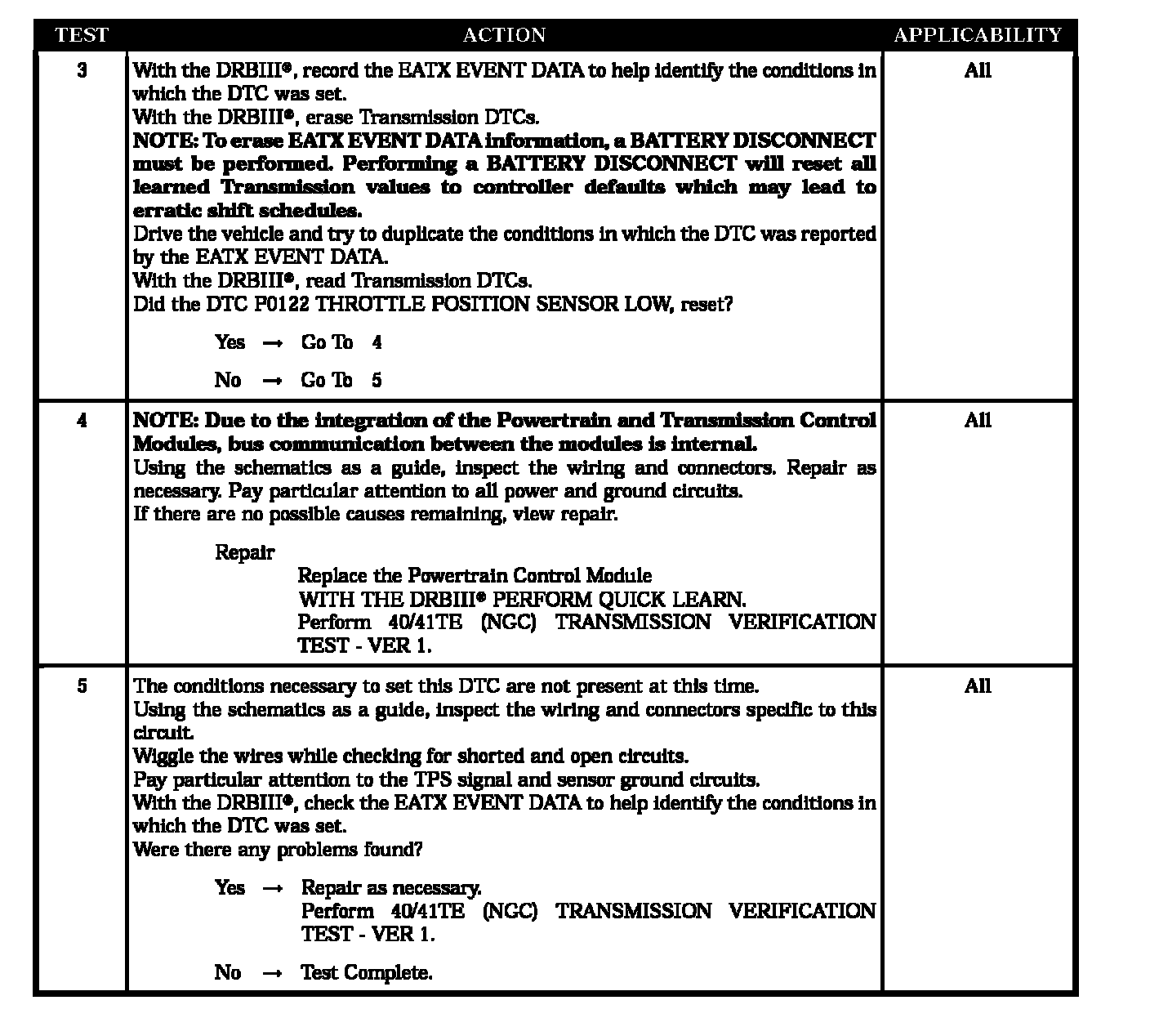

Test 3 - Test 5:
