P0113

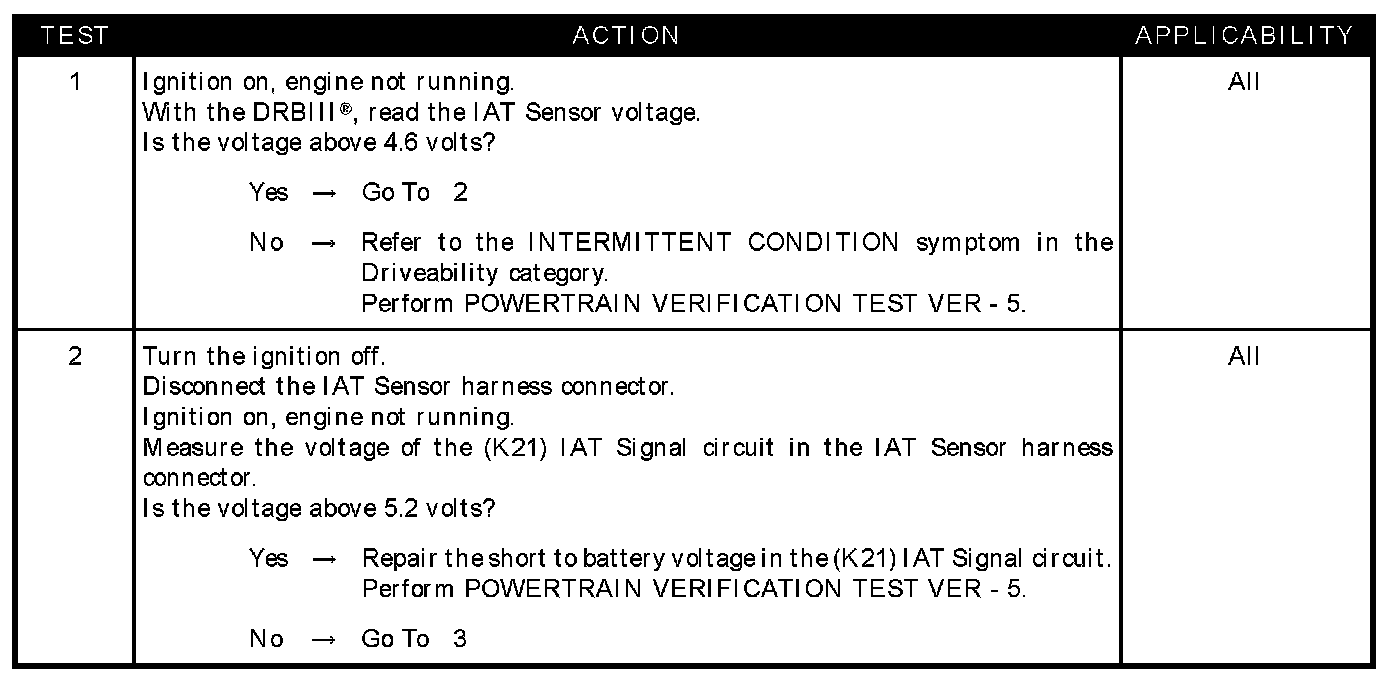

Test 1 - Test 2:

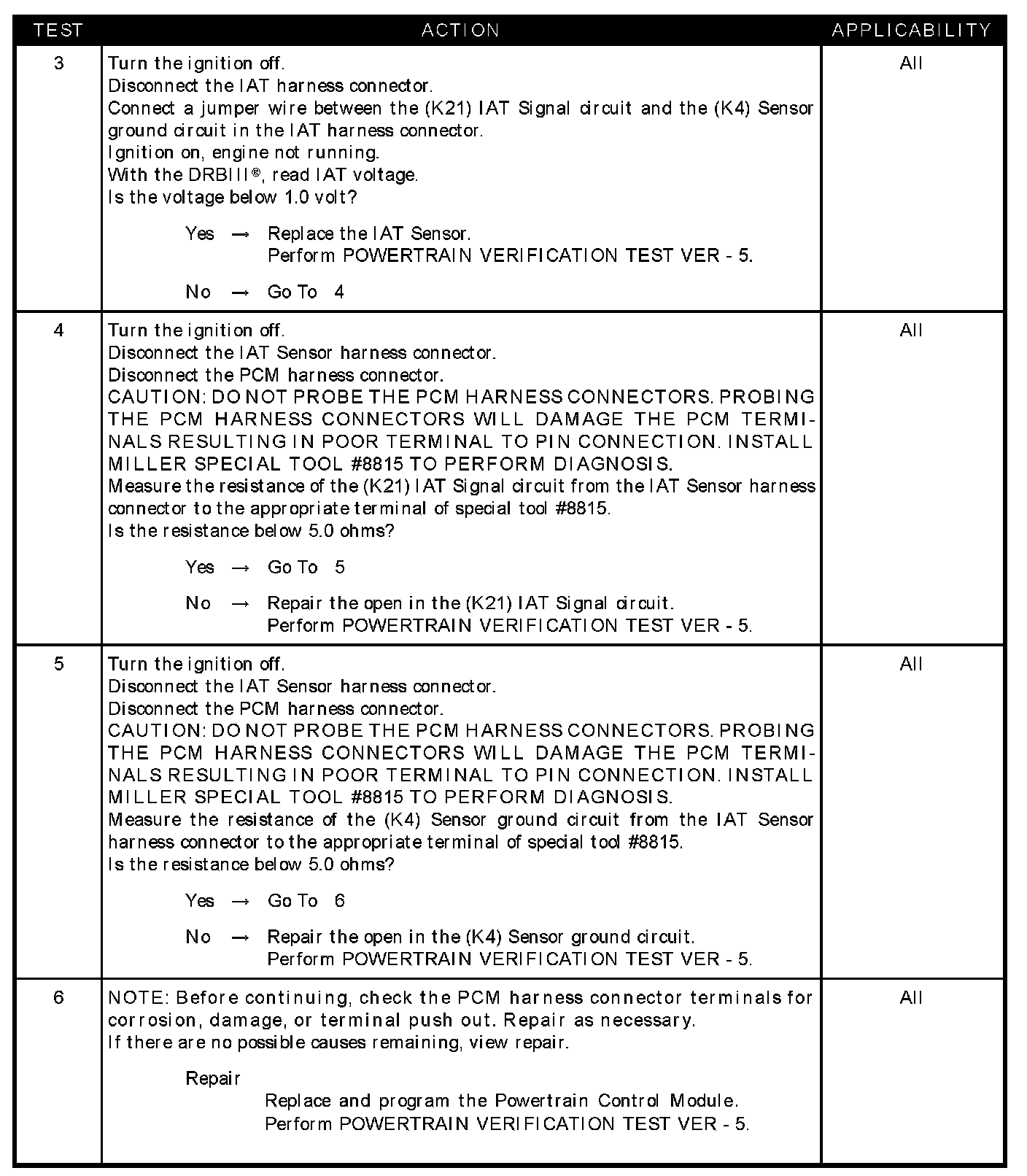

Test 3 - Test 6:

SYMPTOM
P0113-INTAKE AIR TEMPERATURE SENSOR HIGH

WHEN MONITORED
With the ignition on. Battery voltage greater than 10 volts.

SET CONDITION
The Intake Air Temperature (IAT) sensor voltage at the PCM is greater than 4.98 volts. One trip Fault.

POSSIBLE CAUSES
- IAT sensor voltage above 4.6 volts
- (K21) IAT signal circuit shorted to battery voltage
- IAT sensor internal failure
- (K21) IAT signal circuit open
- (K4) Sensor ground circuit open
- PCM
