Wiper On/Off Relay Output Shorted High

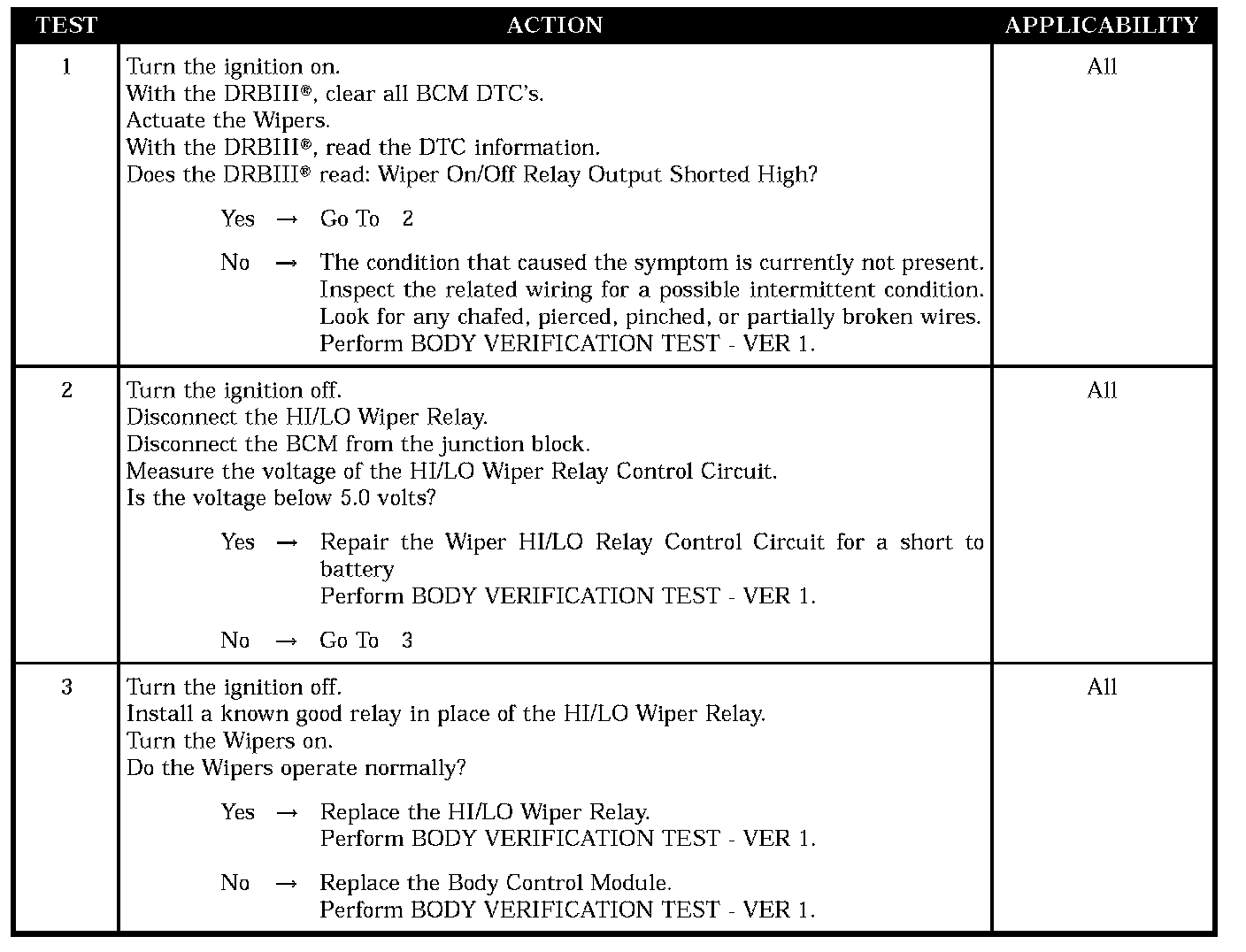

Test 1 - Test 3:

SYMPTOM
WIPER ON/OFF RELAY OUTPUT SHORTED HIGH

WHEN MONITORED
Continuously.

SET CONDITION
BCM detects a high level on the wiper on/off relay output when it is attempting to turn on the wipers.

POSSIBLE CAUSES
- Intermittent condition
- Short to battery
- HI/LO wiper relay
- Body control module
