Right Curtain Squib Shorted to Ground

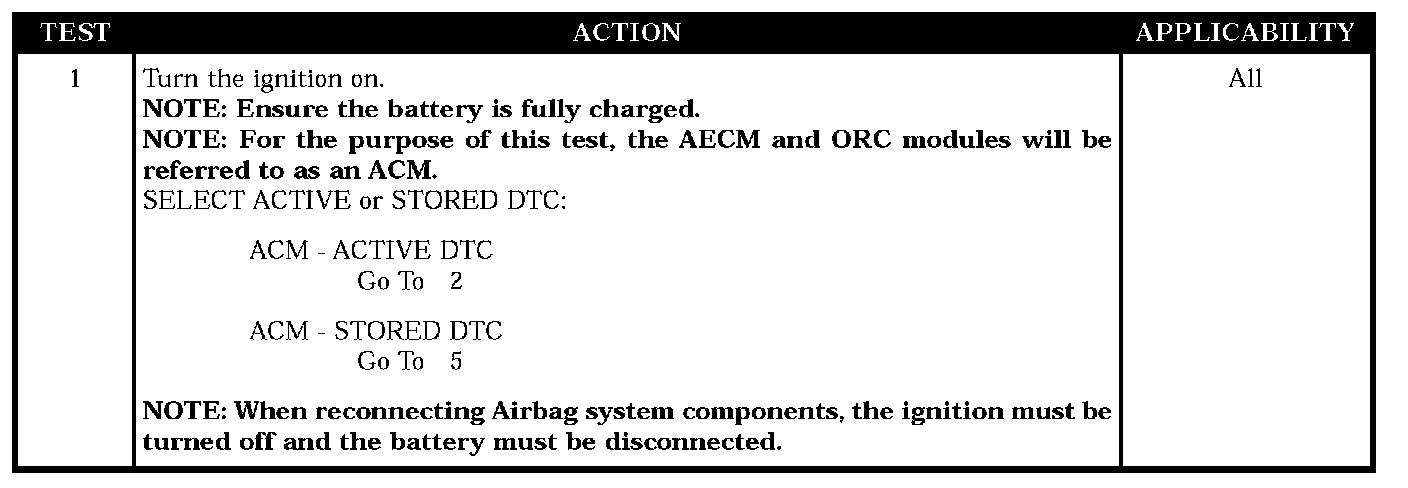

Test 1:

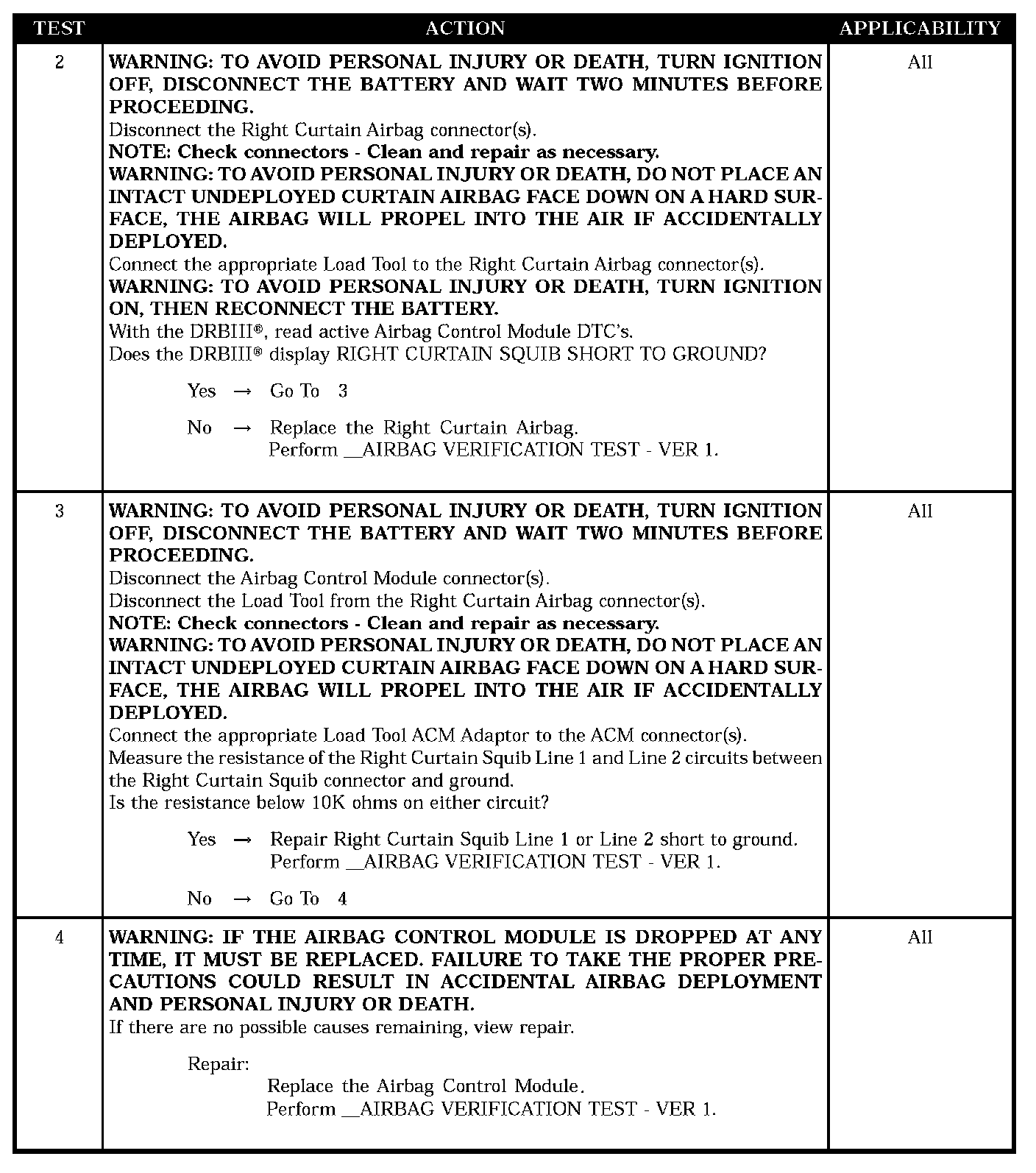

Test 2 - Test 4:

Test 5:

SYMPTOM
RIGHT CURTAIN SQUIB SHORT TO GROUND

WHEN MONITORED
With the ignition on, the ACM monitors the resistance of the Passenger Curtain Squib circuits.

SET CONDITION
When the ACM detects a short to ground in either Passenger Curtain Squib circuits.

POSSIBLE CAUSES
- Right curtain squib short to ground
- Right curtain squib line 1 or line 2 short to ground
- ACM, right curtain squib short to ground
- Stored code or intermittent condition
- Active code present
