Right Curtain Squib Circuit Shorted

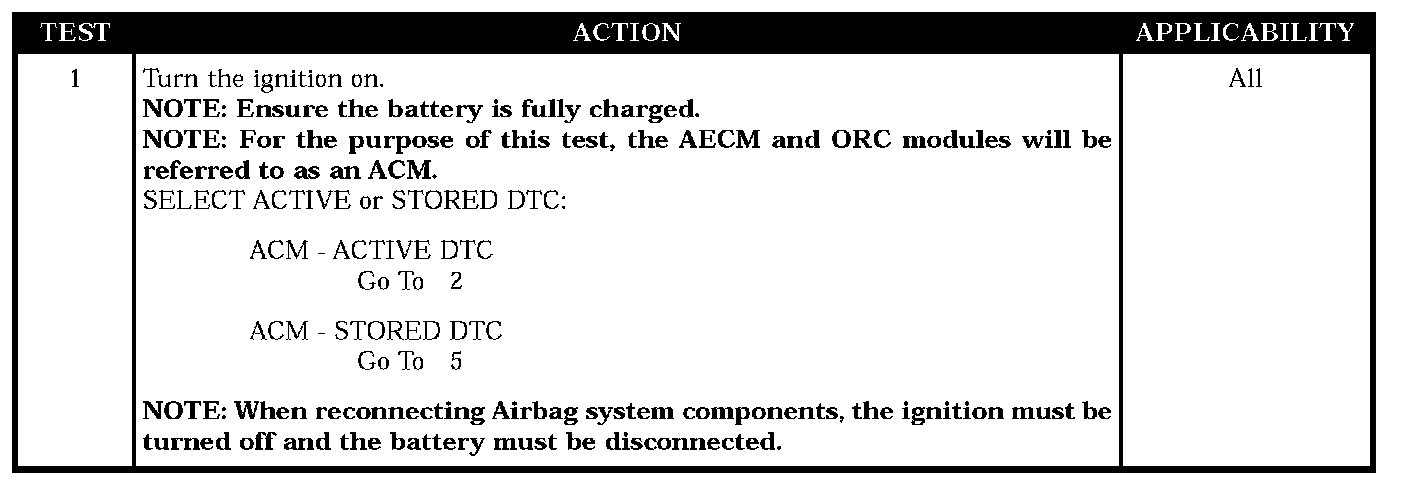

Test 1:

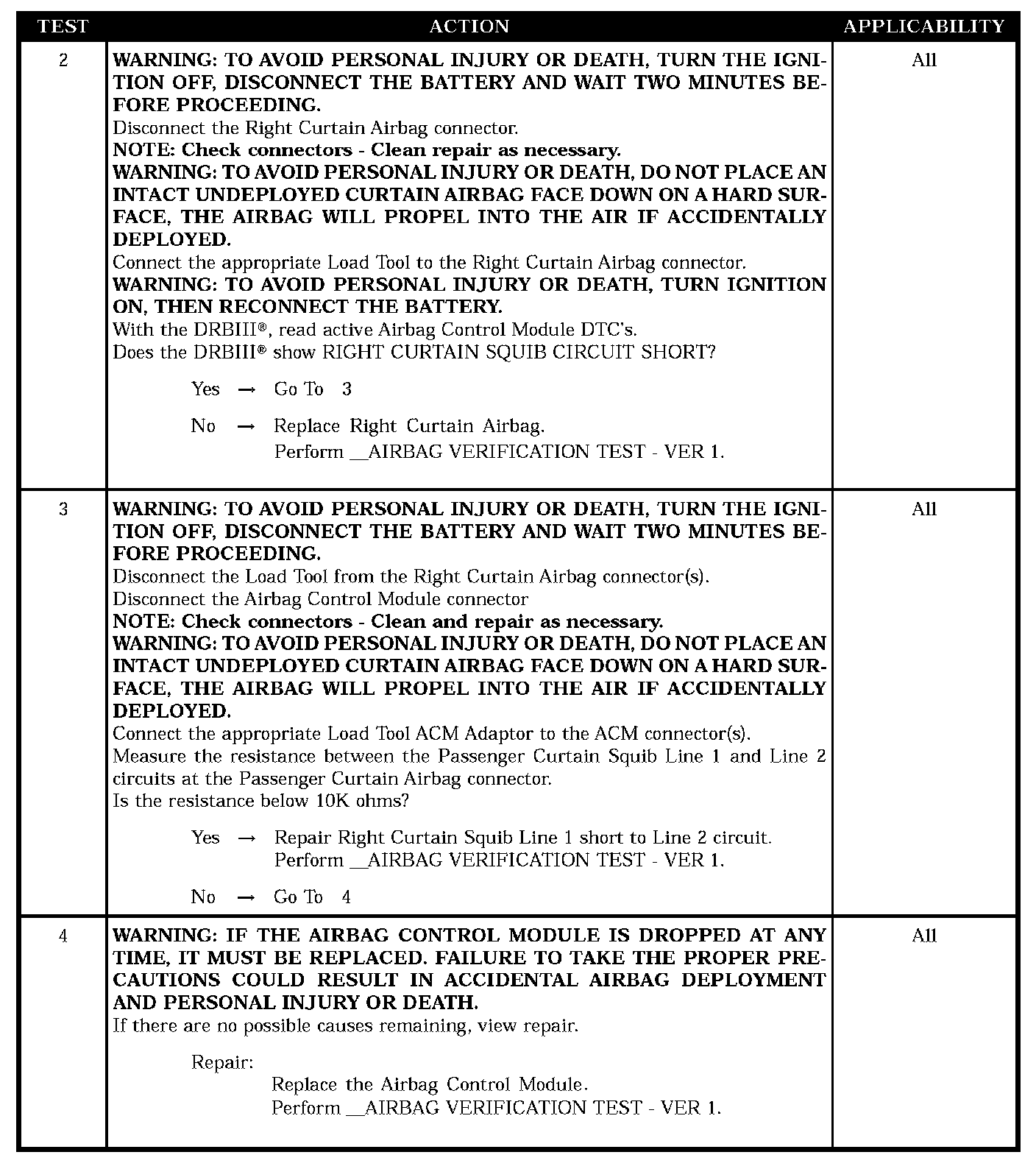

Test 2 - Test 4:

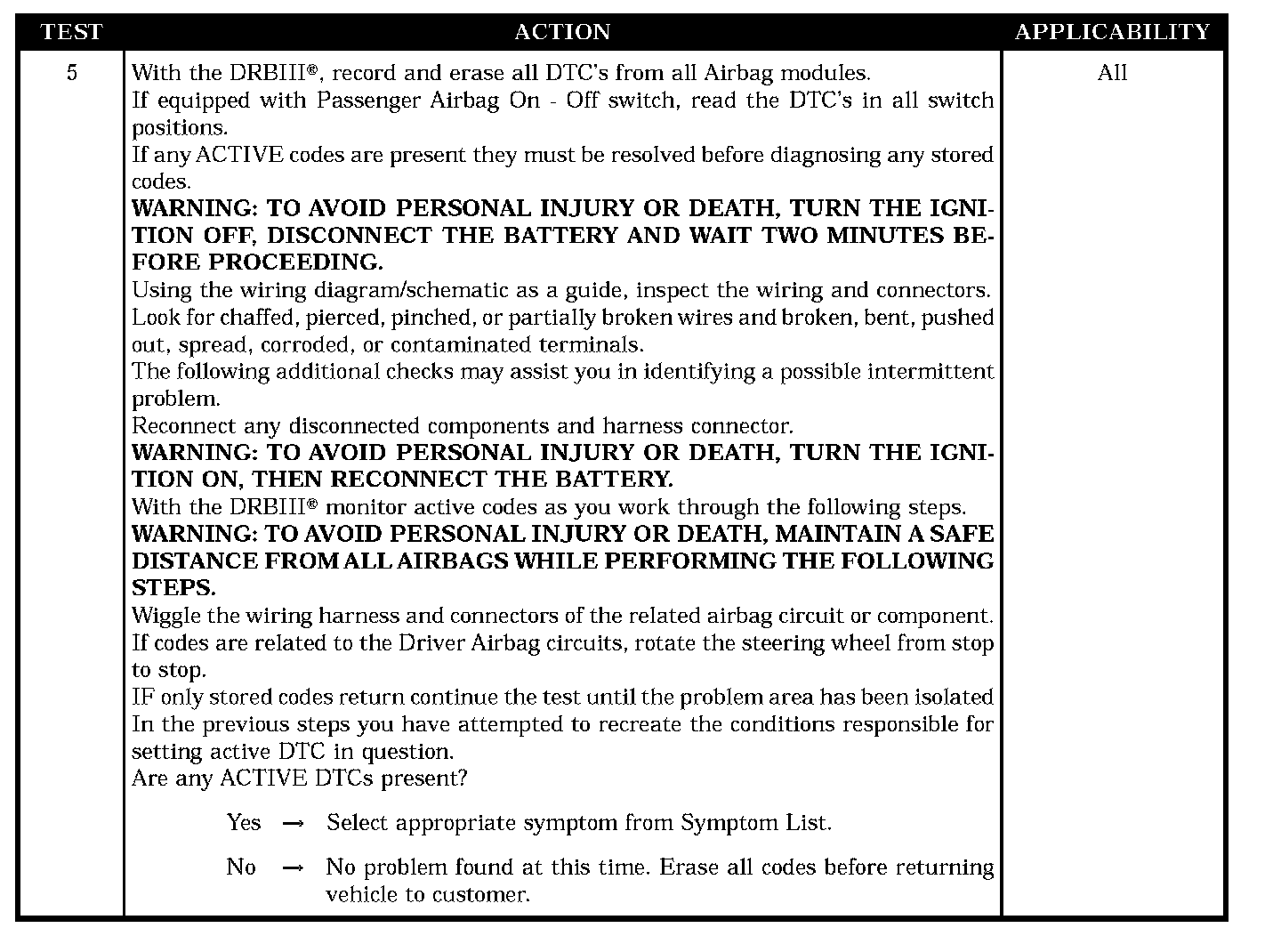

Test 5:

SYMPTOM
RIGHT CURTAIN SQUIB CIRCUIT SHORT

WHEN MONITORED
With the ignition on, the ACM monitors the resistance between the Passenger Curtain Squib circuits.

SET CONDITION
When the ACM detects a low resistance between the Passenger Curtain Squib circuits.

POSSIBLE CAUSES
- Right curtain squib circuit short
- Right curtain squib line 1 short to line 2
- ACM, right curtain squib circuit short
- Stored code or intermittent condition
- Active code present
