Passenger Squib 1 Shorted to Battery

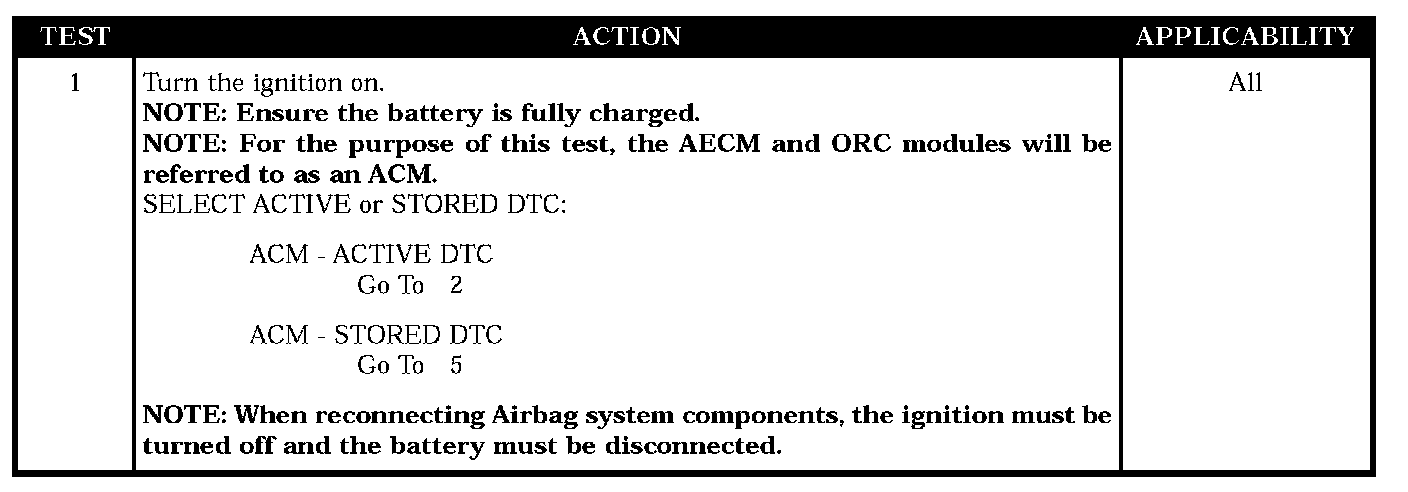

Test 1:

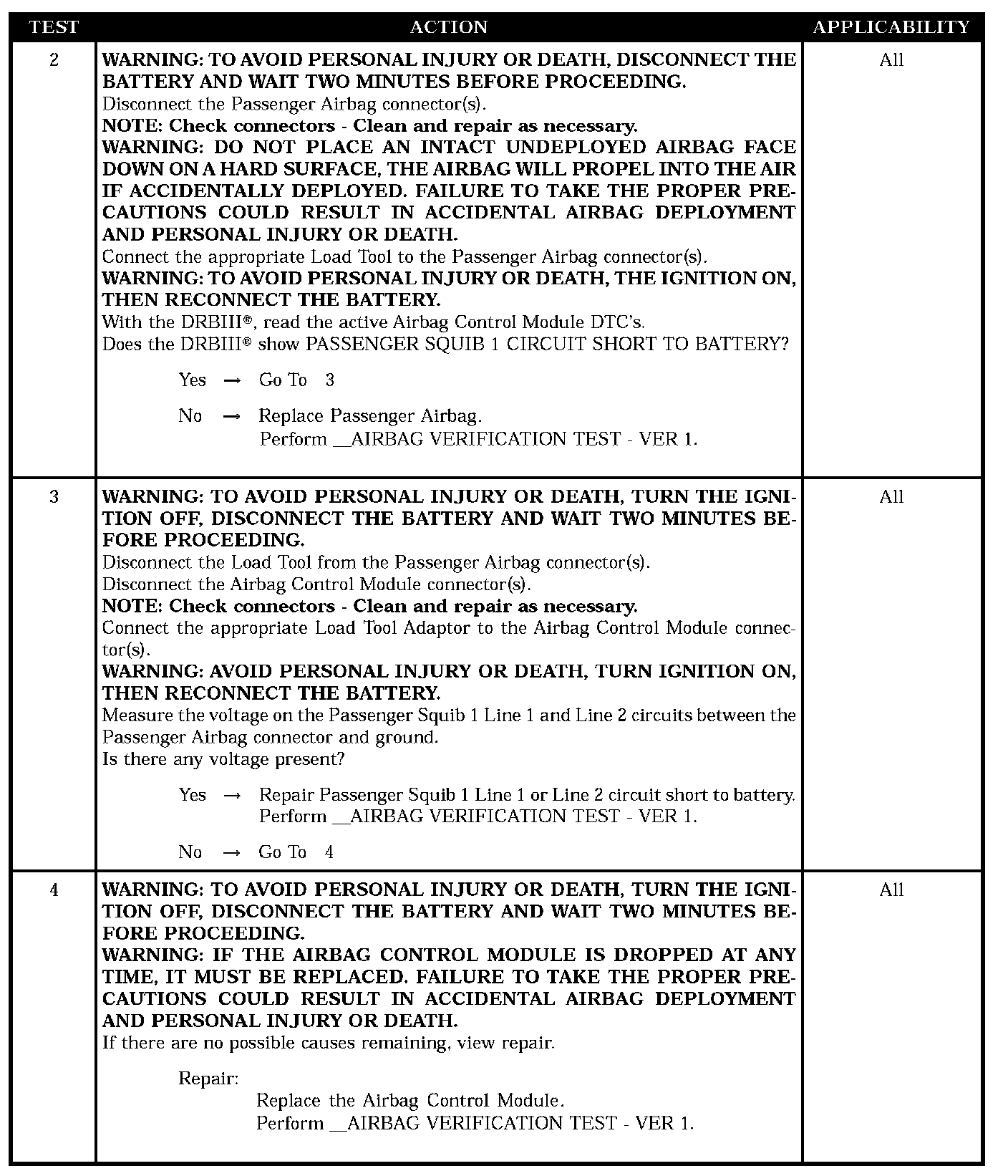

Test 2 - Test 4:

Test 5:

SYMPTOM
PASSENGER SQUIB 1 SHORT TO BATTERY

WHEN MONITORED
With the ignition on, the ACM monitors the voltage on the Passenger Squib 1 circuits.

SET CONDITION
When the ACM detects voltage on the Passenger Squib 1 circuits.

POSSIBLE CAUSES
- PAB squib 1 circuits short to battery
- PAB squib 1 line 1 or line 2 short to battery
- ACM, PAB squib 1 circuit short to battery
- Stored code or intermittent condition
- Active code present
