Passenger Squib 1 Circuit Shorted

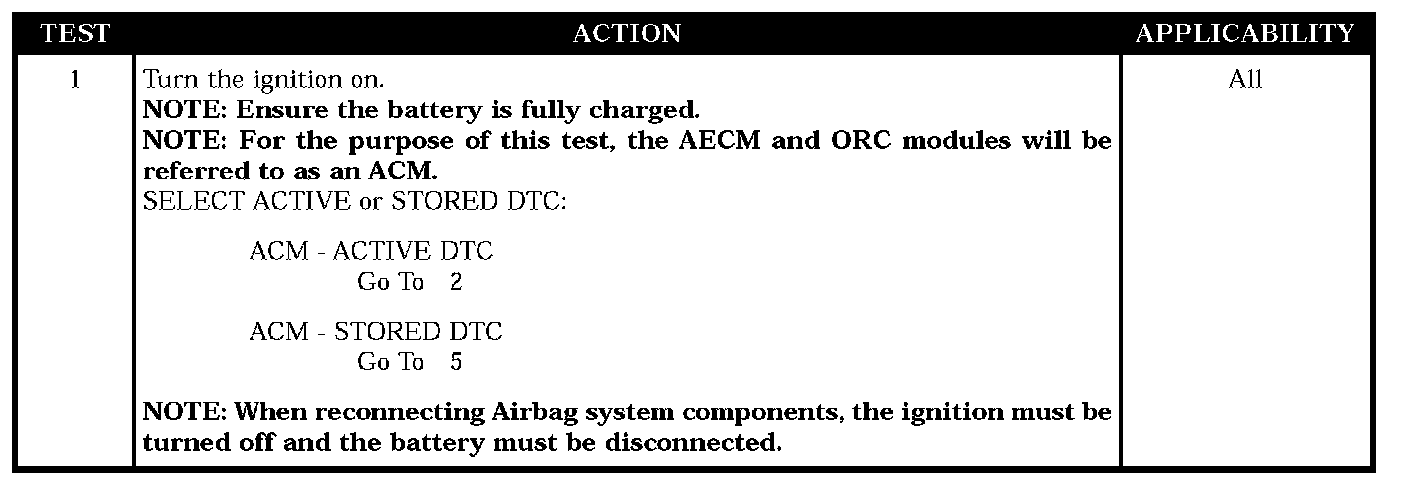

Test 1:

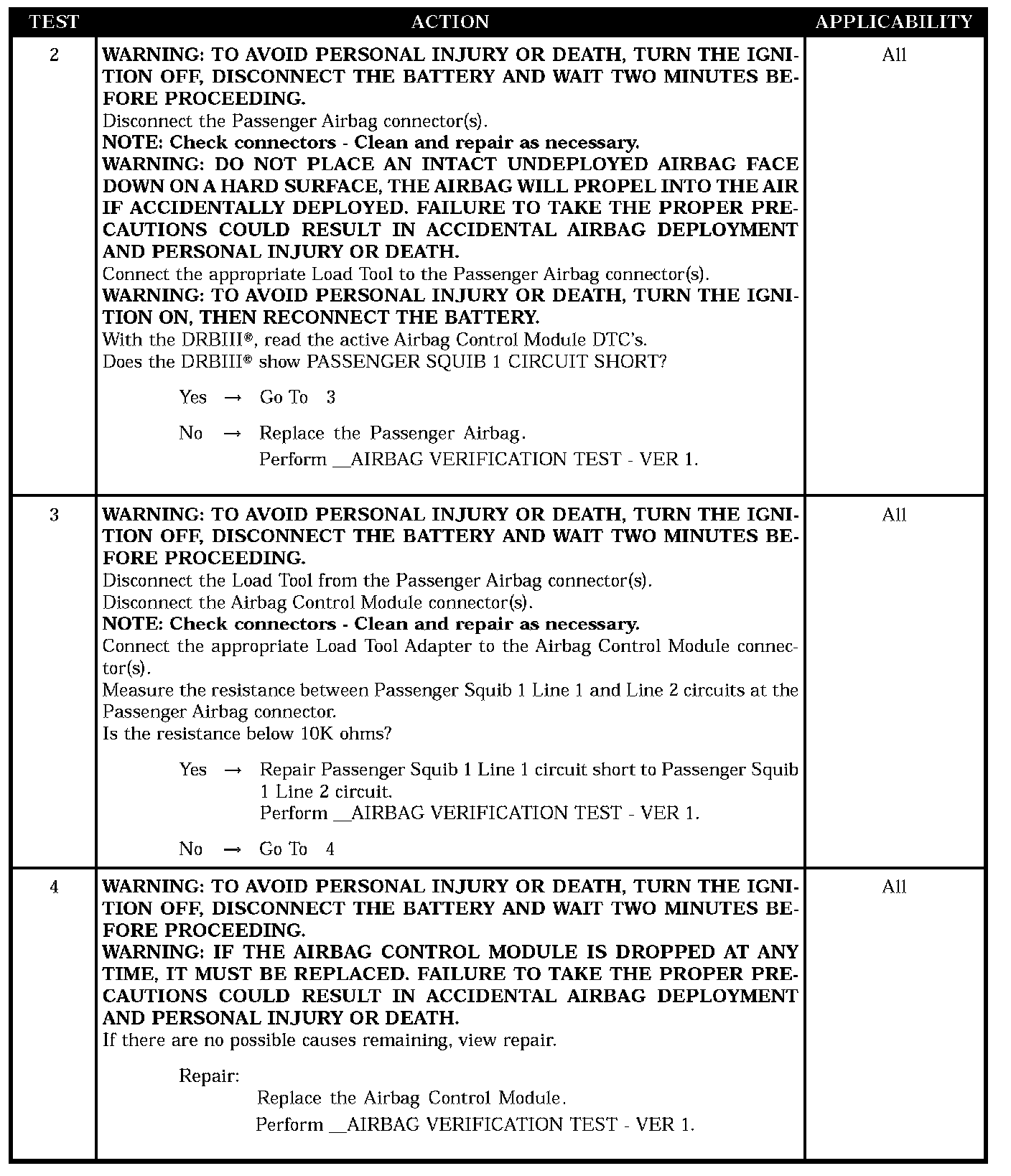

Test 2 - Test 4:

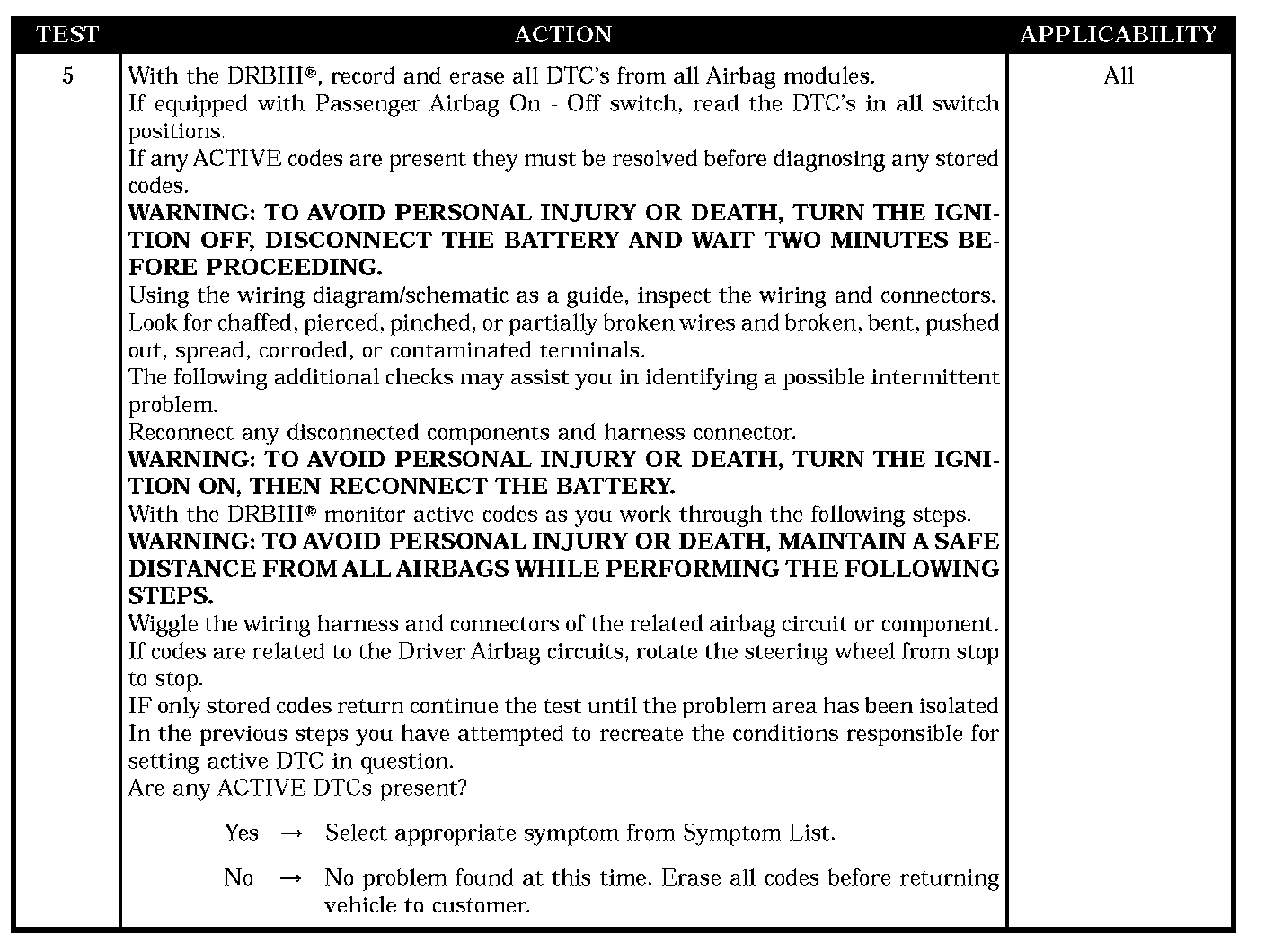

Test 5:

SYMPTOM
PASSENGER SQUIB 1 CIRCUIT SHORT

WHEN MONITORED
With the ignition on, the ACM monitors the resistance between the Passenger Squib 1 circuits.

SET CONDITION
When the ACM detects low resistance in the Passenger Squib 1 circuits.

POSSIBLE CAUSES
- PAB squib 1 circuit short
- PAB squib 1 line 1 short to line 2
- ACM, PAB squib 1 circuit short
- Stored code or intermittent condition
- Active code present
