Passenger Squib 1 Circuit Open

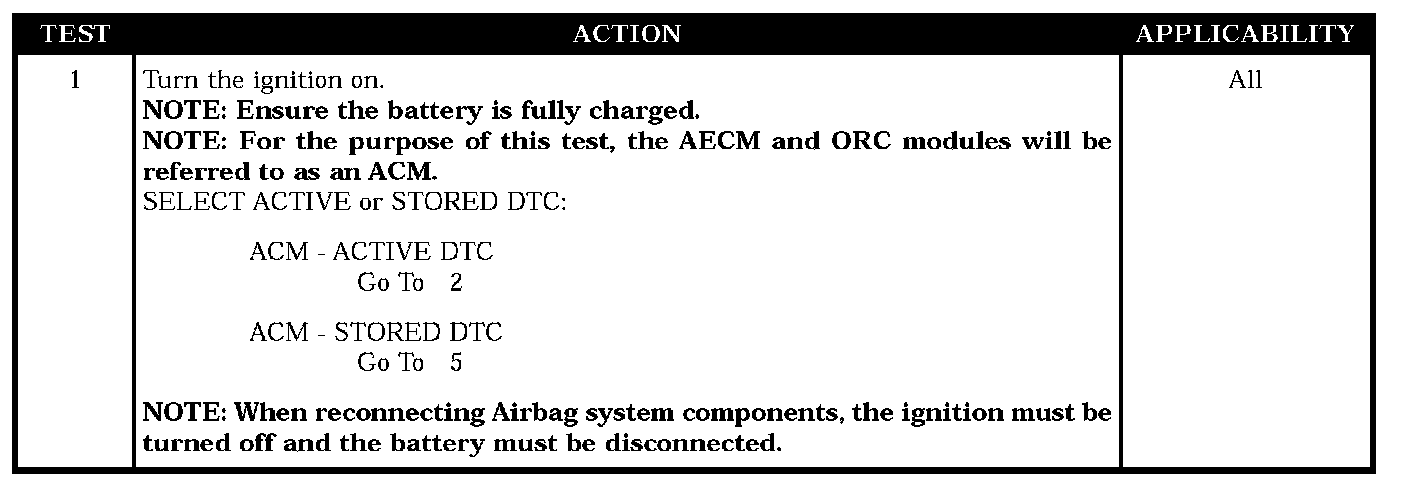

Test 1:

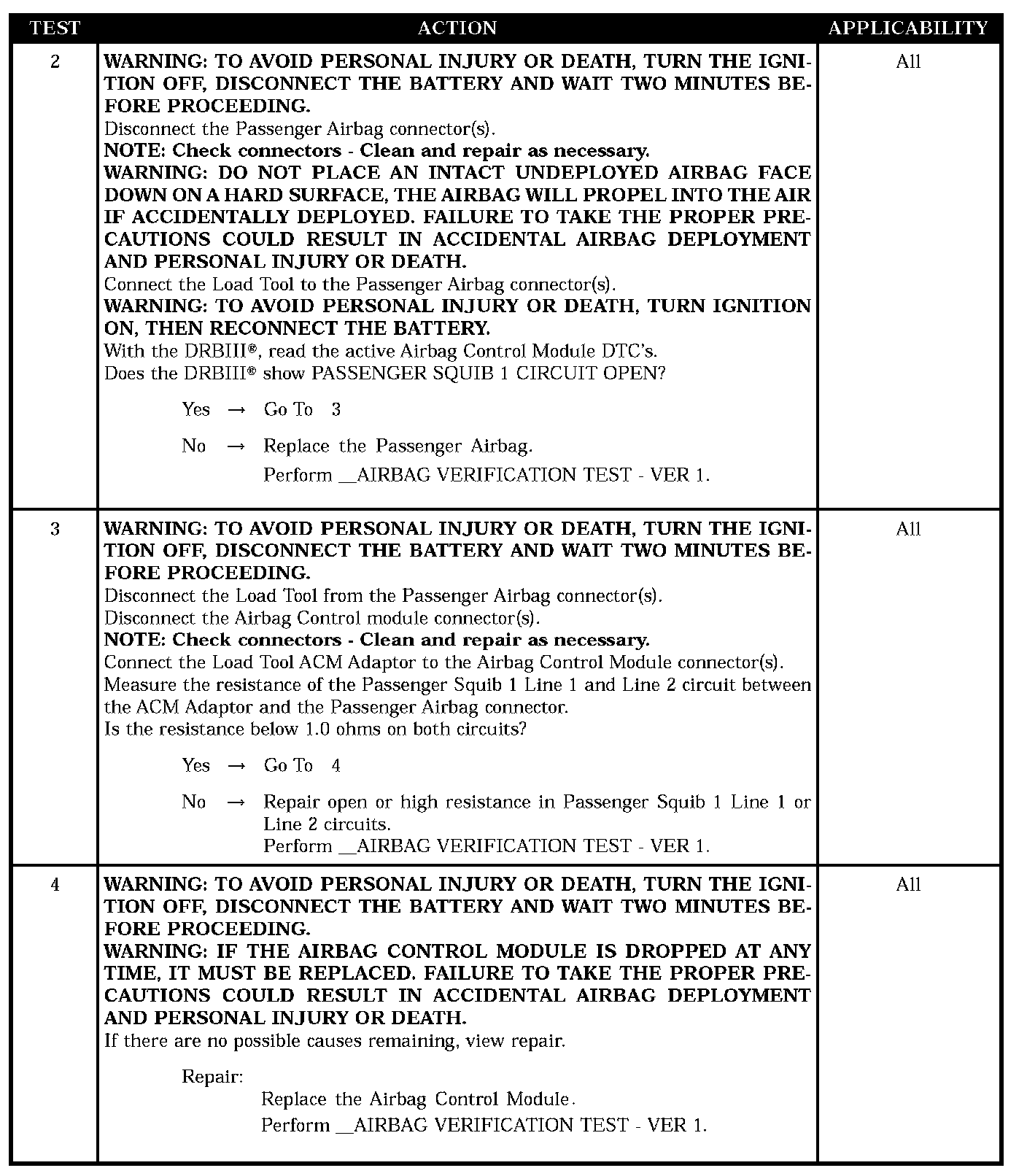

Test 2 - Test 4:

Test 5:

SYMPTOM
PASSENGER SQUIB 1 CIRCUIT OPEN

WHEN MONITORED
With the ignition on, the ACM monitors the resistance of the Passenger Squib 1 circuits.

SET CONDITION
When the ACM detects an open circuit or high resistance on the Passenger Squib 1 circuits.

POSSIBLE CAUSES
- PAB squib 1 circuit open
- PAB squib 1 line 1 or line 2 circuit open
- ACM, PAB squib 1 circuit open
- Stored code or intermittent condition
- Active code present
