Passenger Seat Belt Tensioner Circuit Shorted

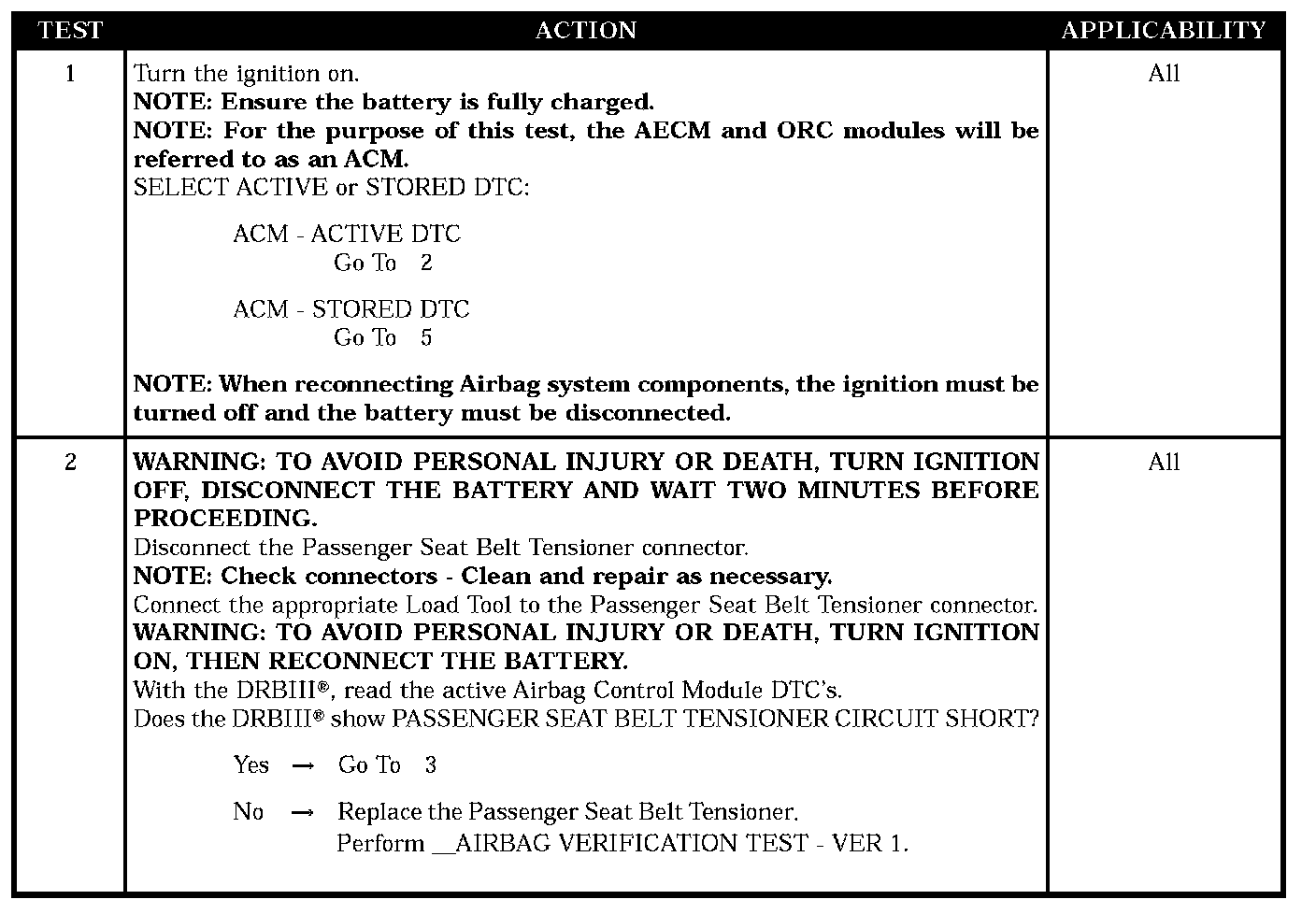

Test 1 - Test 2:

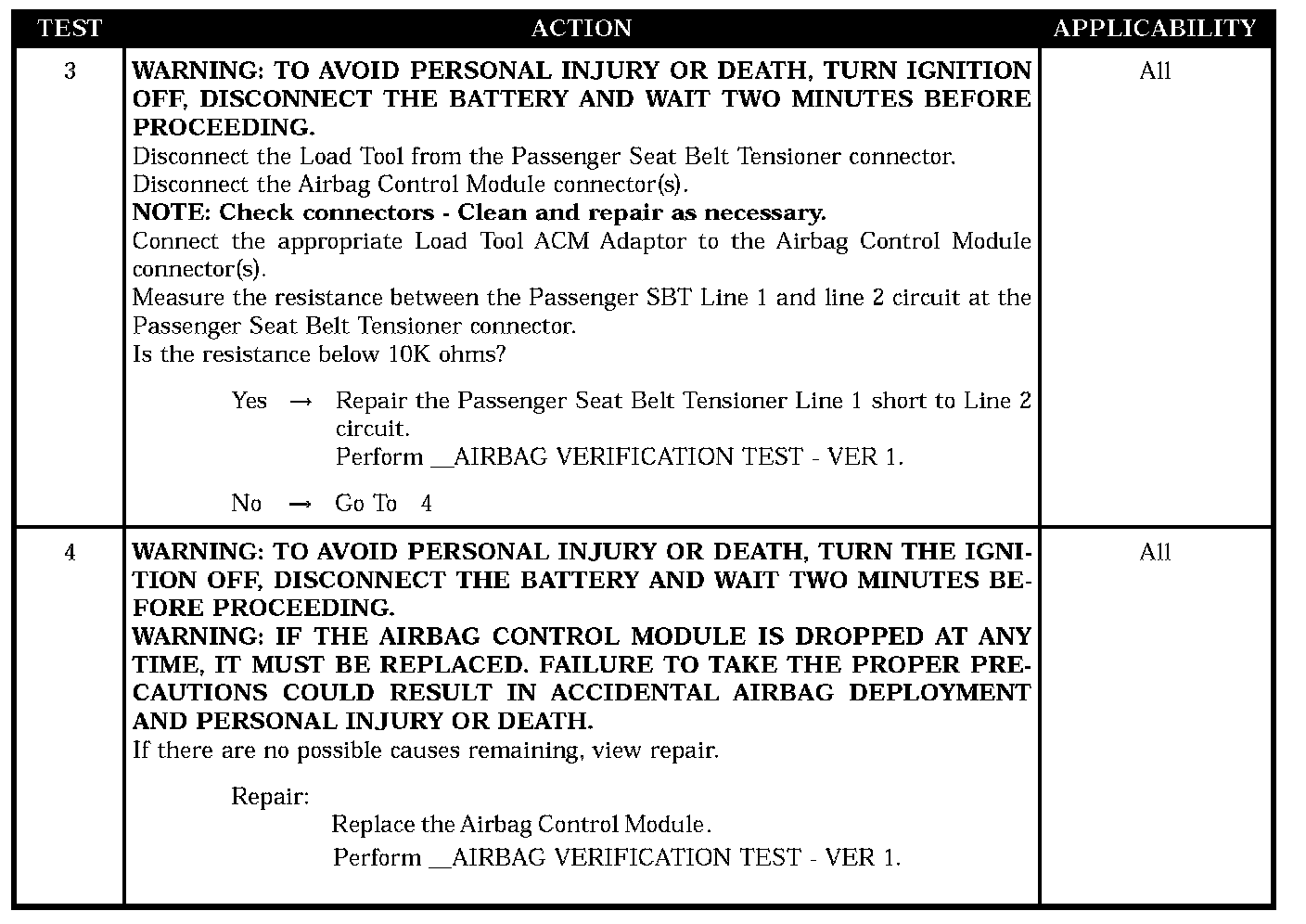

Test 3 - Test 4:

Test 5:

SYMPTOM
PASSENGER SEAT BELT TENSIONER CIRCUIT SHORT

WHEN MONITORED
With the ignition on, the ACM monitors the resistance between the Passenger Seat Belt Tensioner circuits.

SET CONDITION
When the ACM detects low resistance in the Passenger Seat Belt Tensioner circuits.

POSSIBLE CAUSES
- Passenger seat belt tensioner line 1 short to line 2
- Passenger seat belt tensioner circuit short
- ACM, passenger seat belt tensioner circuit short
- Stored code or intermittent condition
- Active code present
