Passenger Seat Belt Tensioner Circuit Open

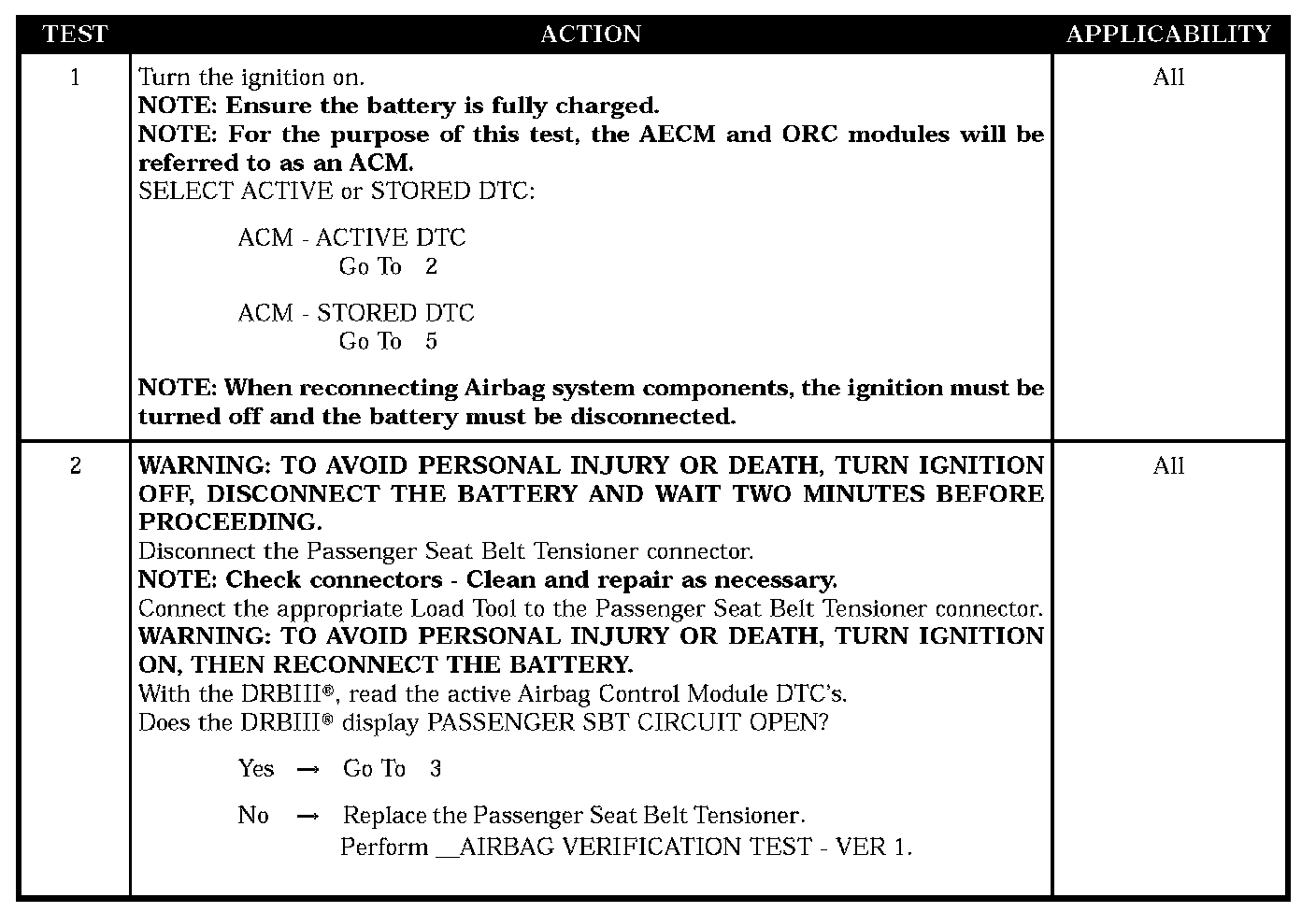

Test 1 - Test 2:

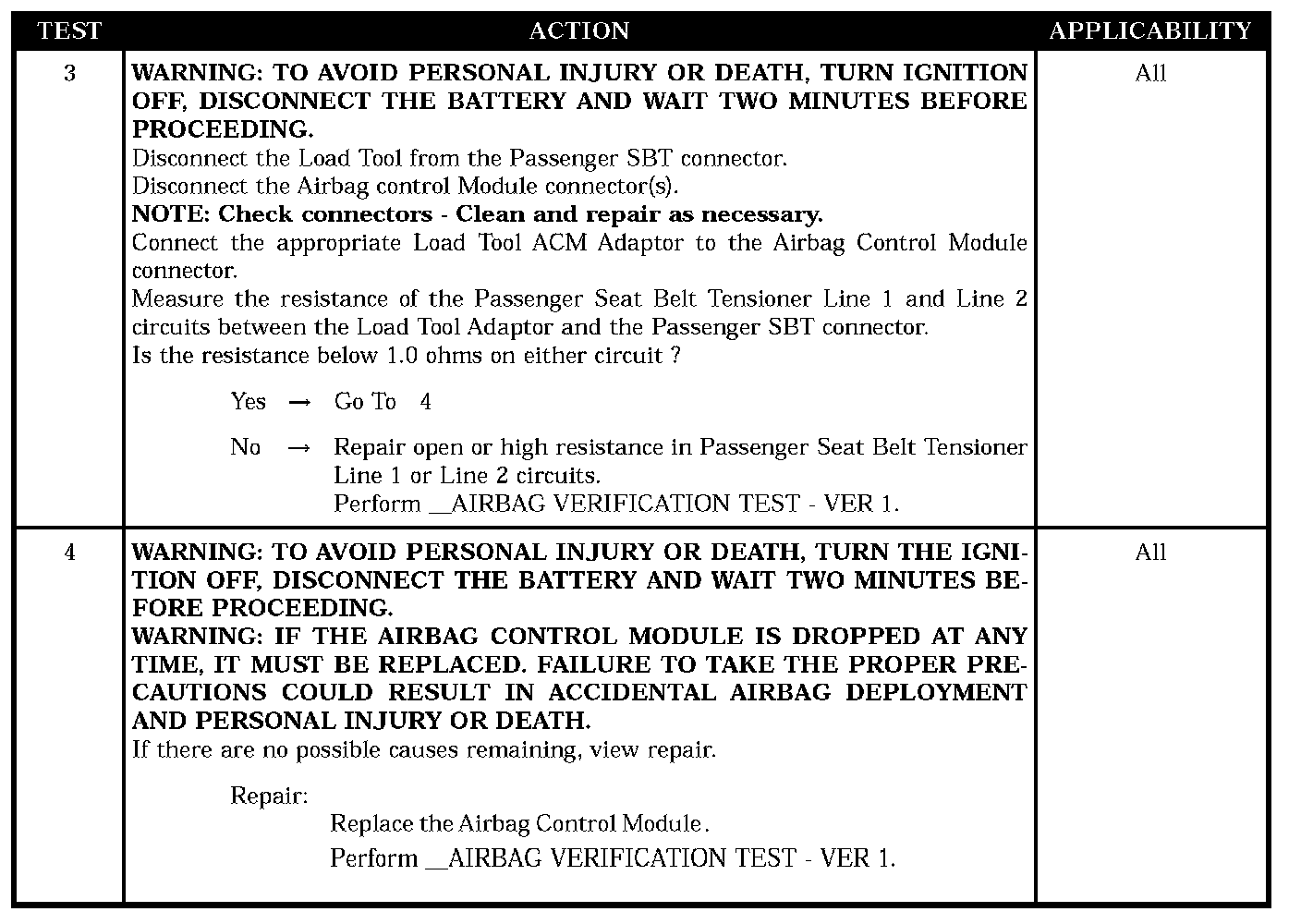

Test 3 - Test 4:

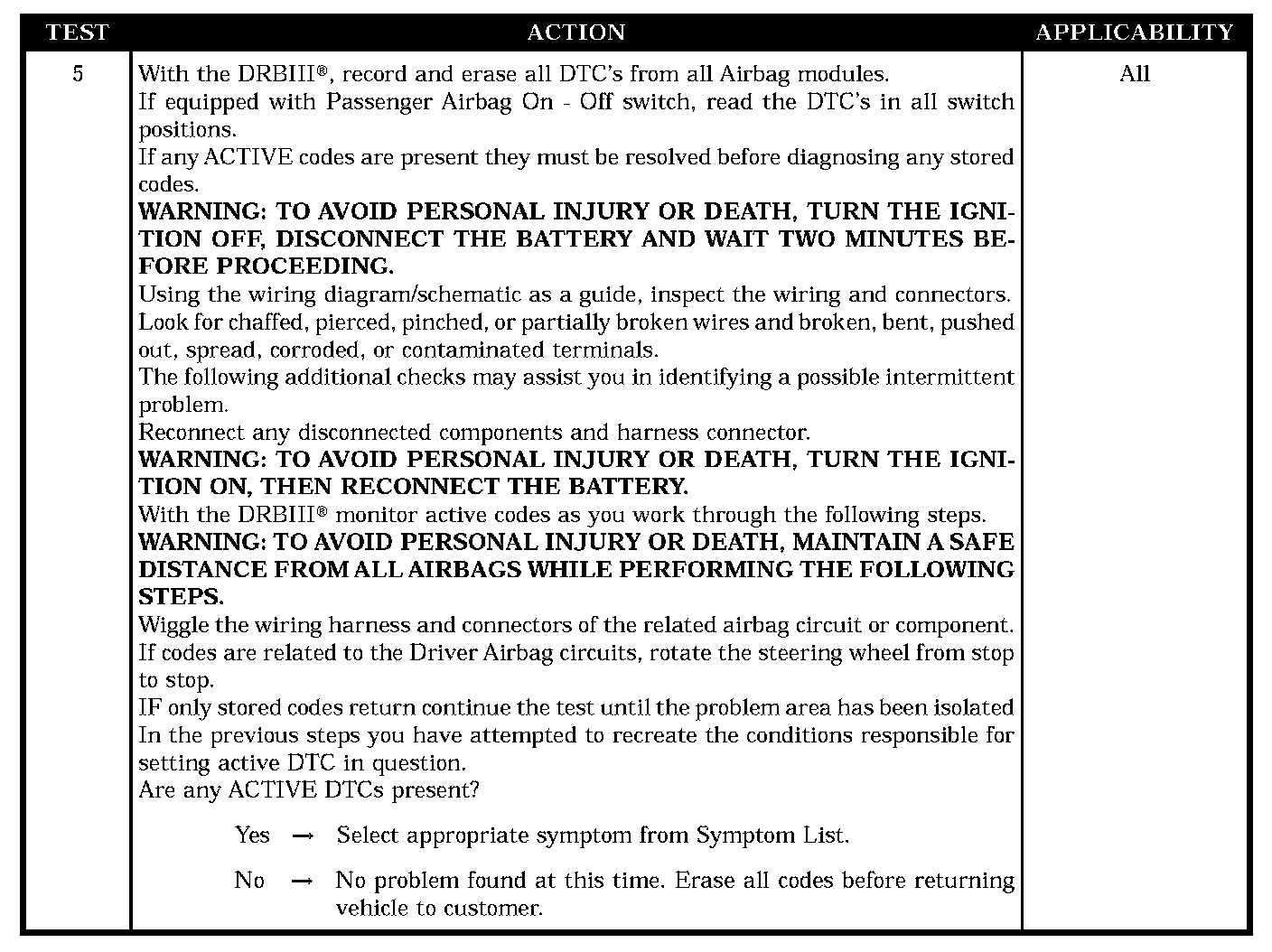

Test 5:

SYMPTOM
PASSENGER SEAT BELT TENSIONER CIRCUIT OPEN

WHEN MONITORED
With the ignition on, the ACM monitors the resistance of the Passenger Seat Belt Tensioner circuits.

SET CONDITION
When the ACM detects an open circuit or high resistance in the Passenger Seat Belt Tensioner circuits.

POSSIBLE CAUSES
- Passenger seat belt tensioner circuit open
- Passenger seat belt tensioner line 1 or line 2 circuit open
- ACM, passenger seat belt tensioner circuit open
- Stored code or intermittent condition
- Active code present
