Left Curtain Squib Shorted to Ground

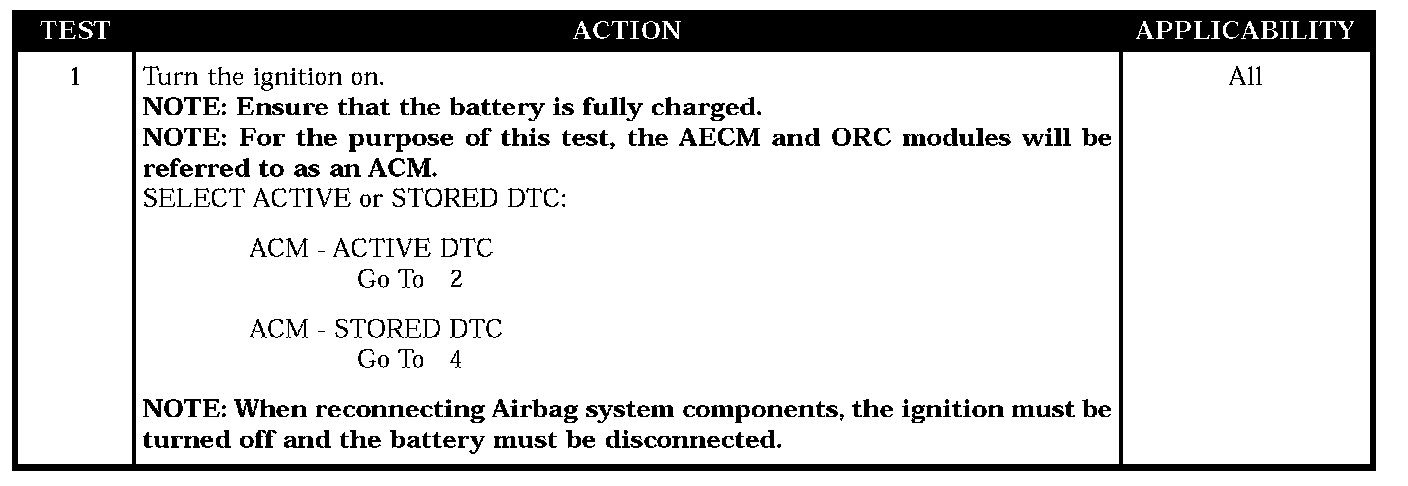

Test 1:

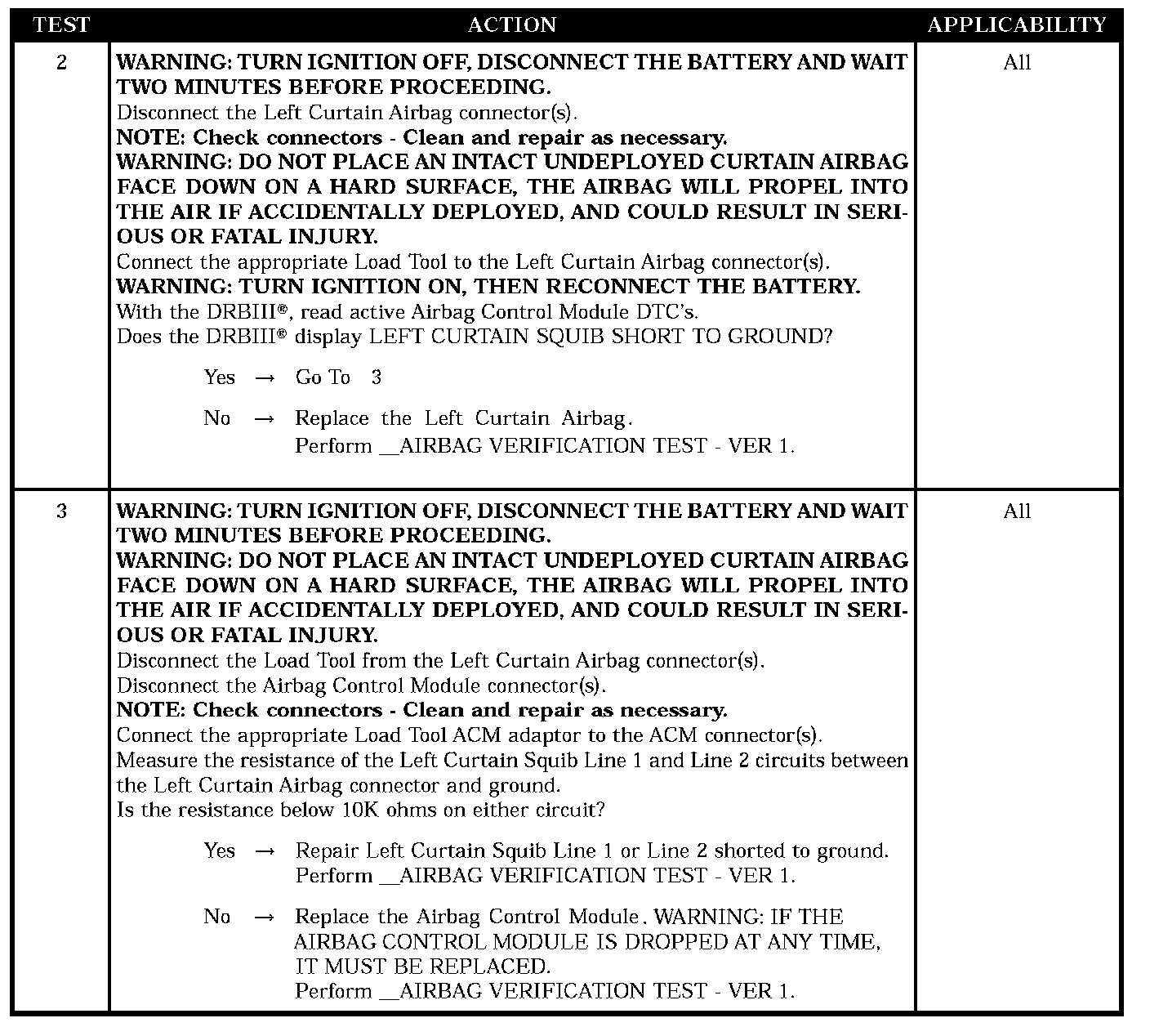

Test 2 - Test 3:

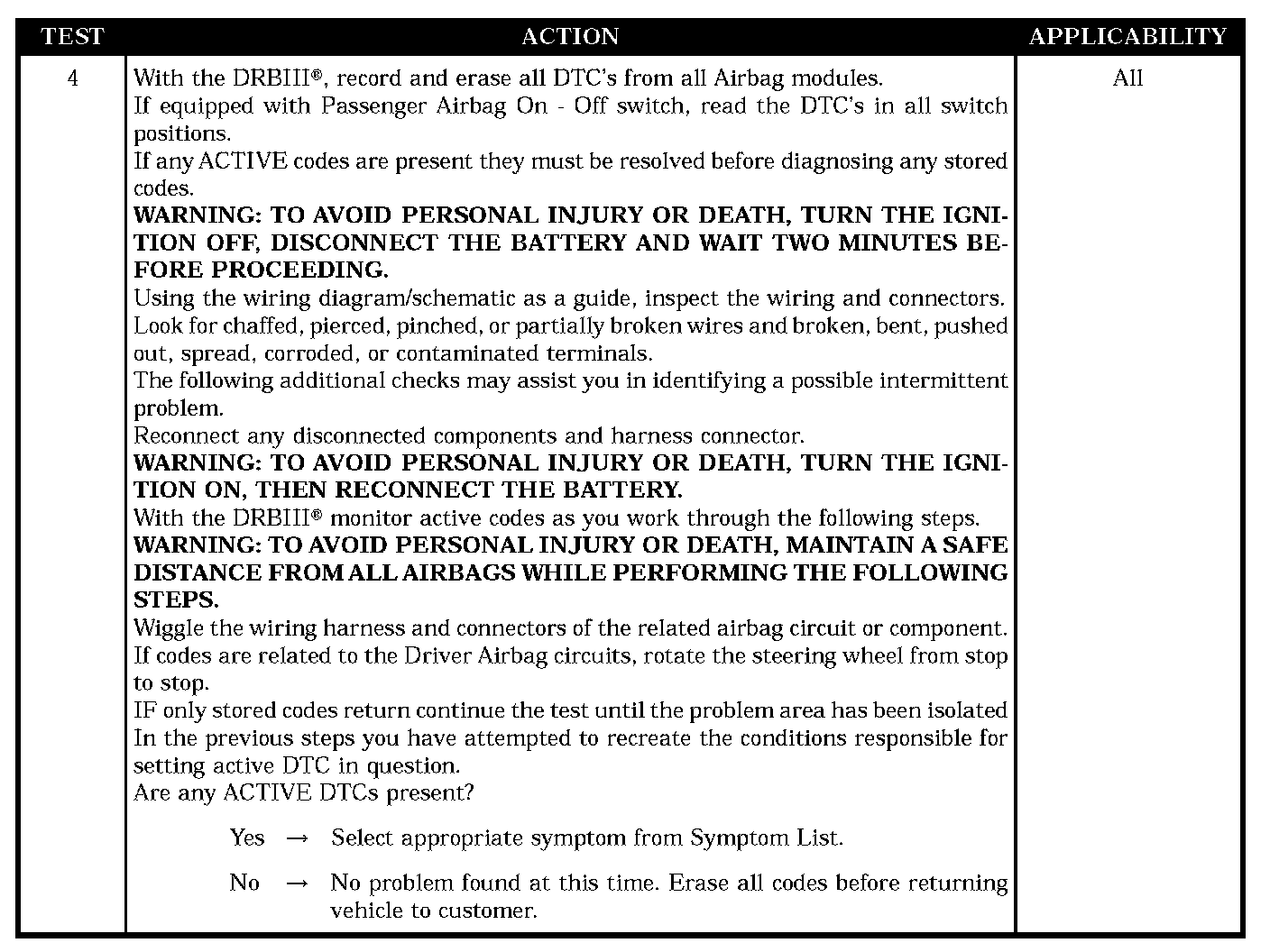

Test 4:

SYMPTOM
LEFT CURTAIN SQUIB SHORT TO GROUND

WHEN MONITORED
With the ignition on, the ACM monitors the resistance of the Driver Curtain Squib circuits.

SET CONDITION
When the ACM detects a short to ground in either Driver Curtain Squib circuits.

POSSIBLE CAUSES
- Left curtain squib short to ground
- Left curtain squib line 1 or line 2 shorted to ground
- ACM, left curtain squib short to ground
- Stored code or intermittent condition
- Active code present
