Left Curtain Squib Shorted to Battery

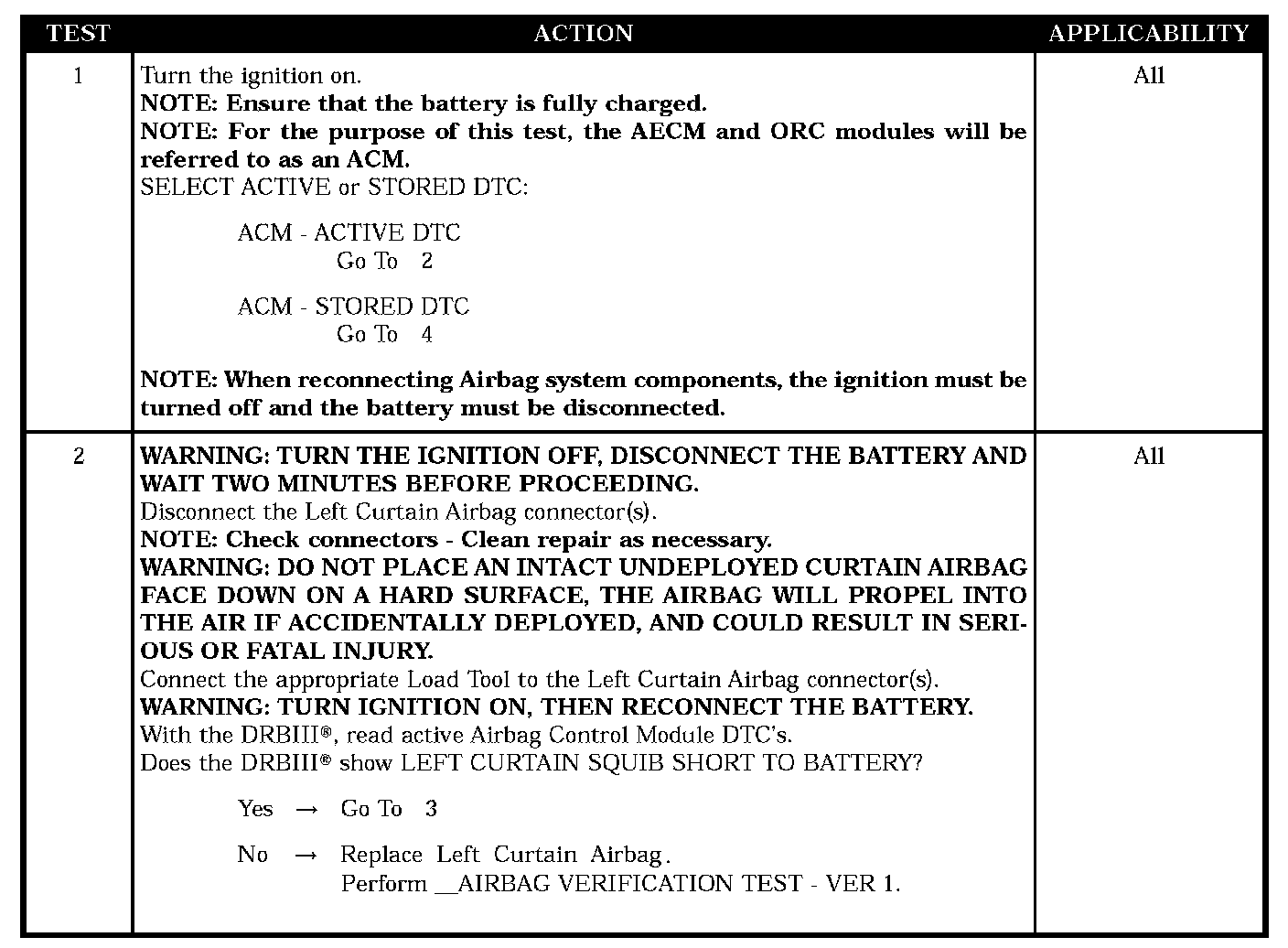

Test 1 - Test 2:

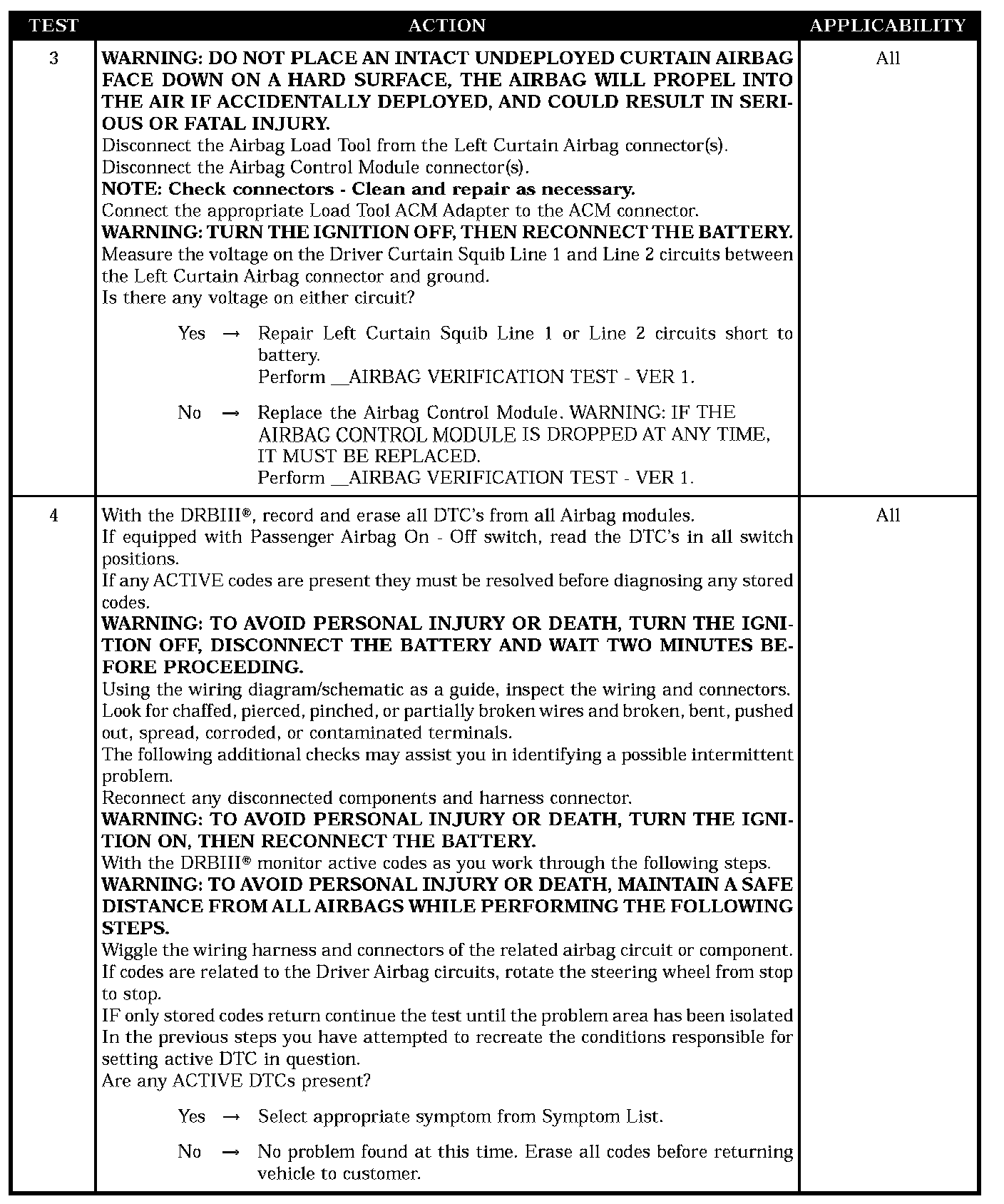

Test 3 - Test 4:

SYMPTOM
LEFT CURTAIN SQUIB SHORT TO BATTERY

WHEN MONITORED
With the ignition on, the ACM monitors the voltage of the Driver Curtain Squib circuits.

SET CONDITION
When the ACM detects voltage on the Curtain Squib circuits.

POSSIBLE CAUSES
- Left curtain squib short to battery
- Left curtain squib line 1 or line 2 short to battery
- ACM, left curtain squib short to battery
- Stored code or intermittent condition
- Active code present
