Driver Squib 2 Shorted to Ground

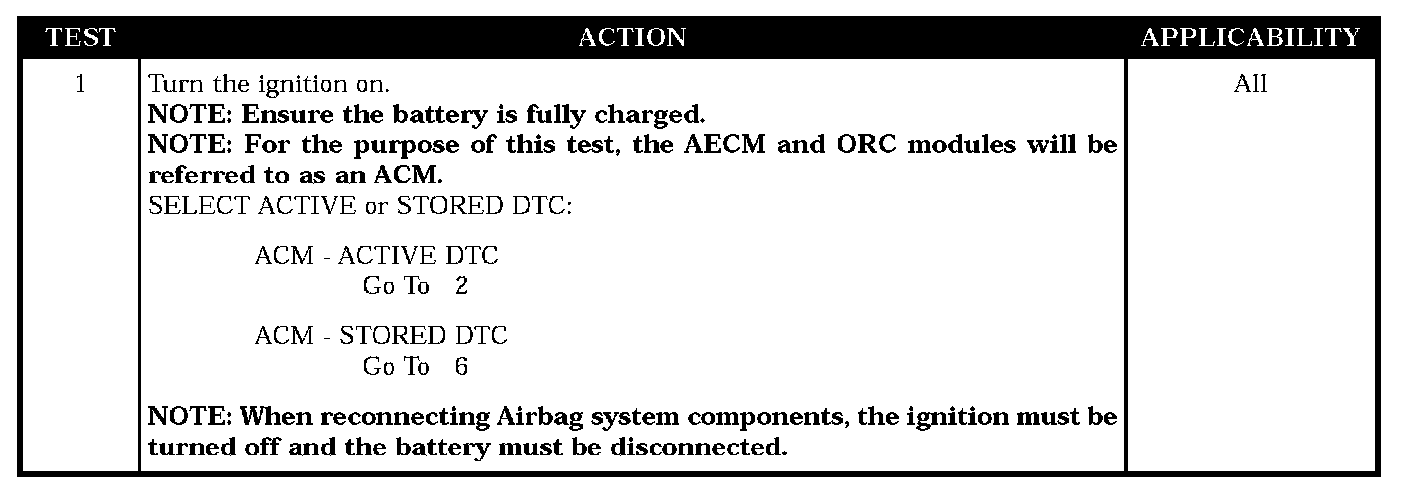

Test 1:

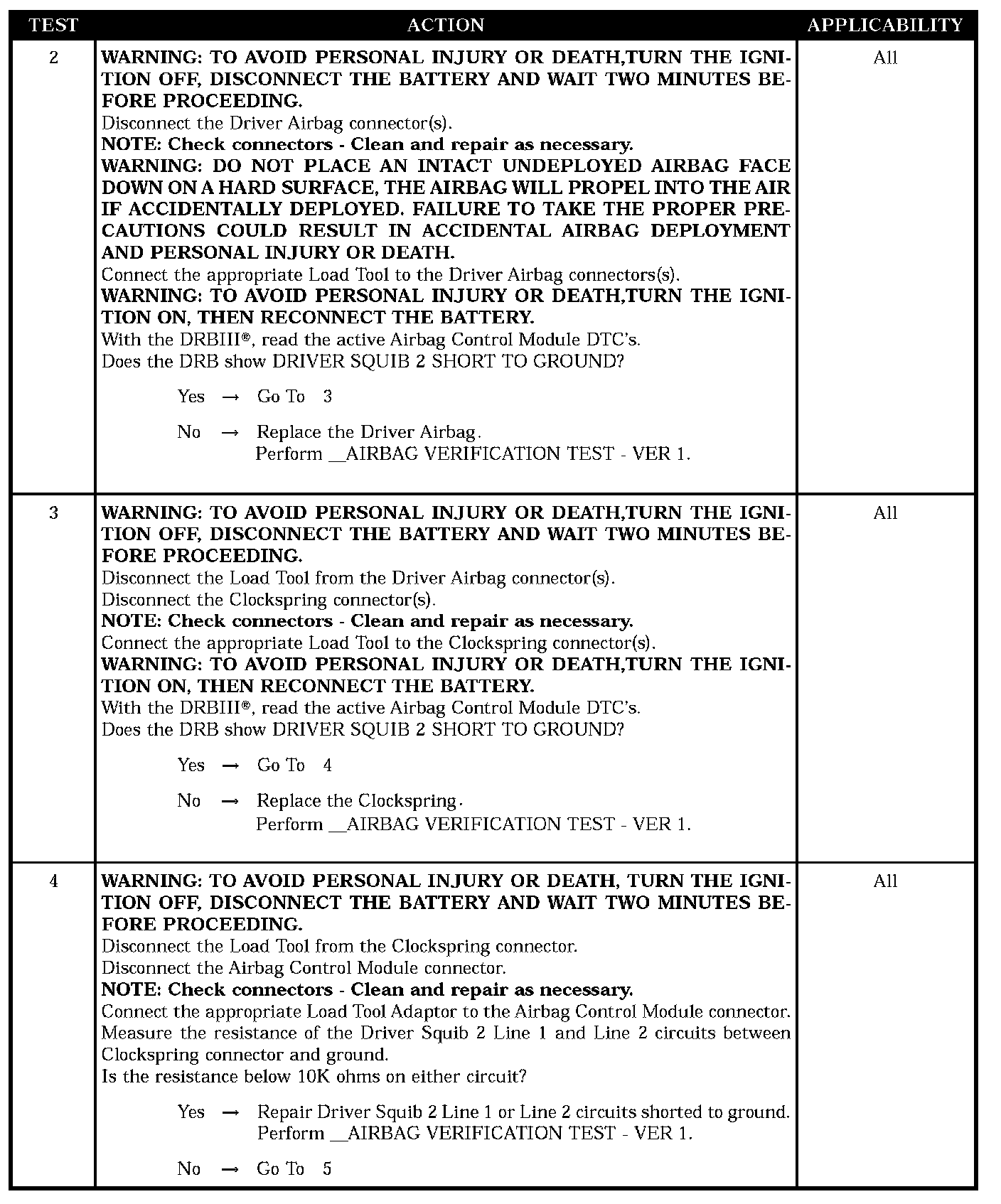

Test 2 - Test 4:

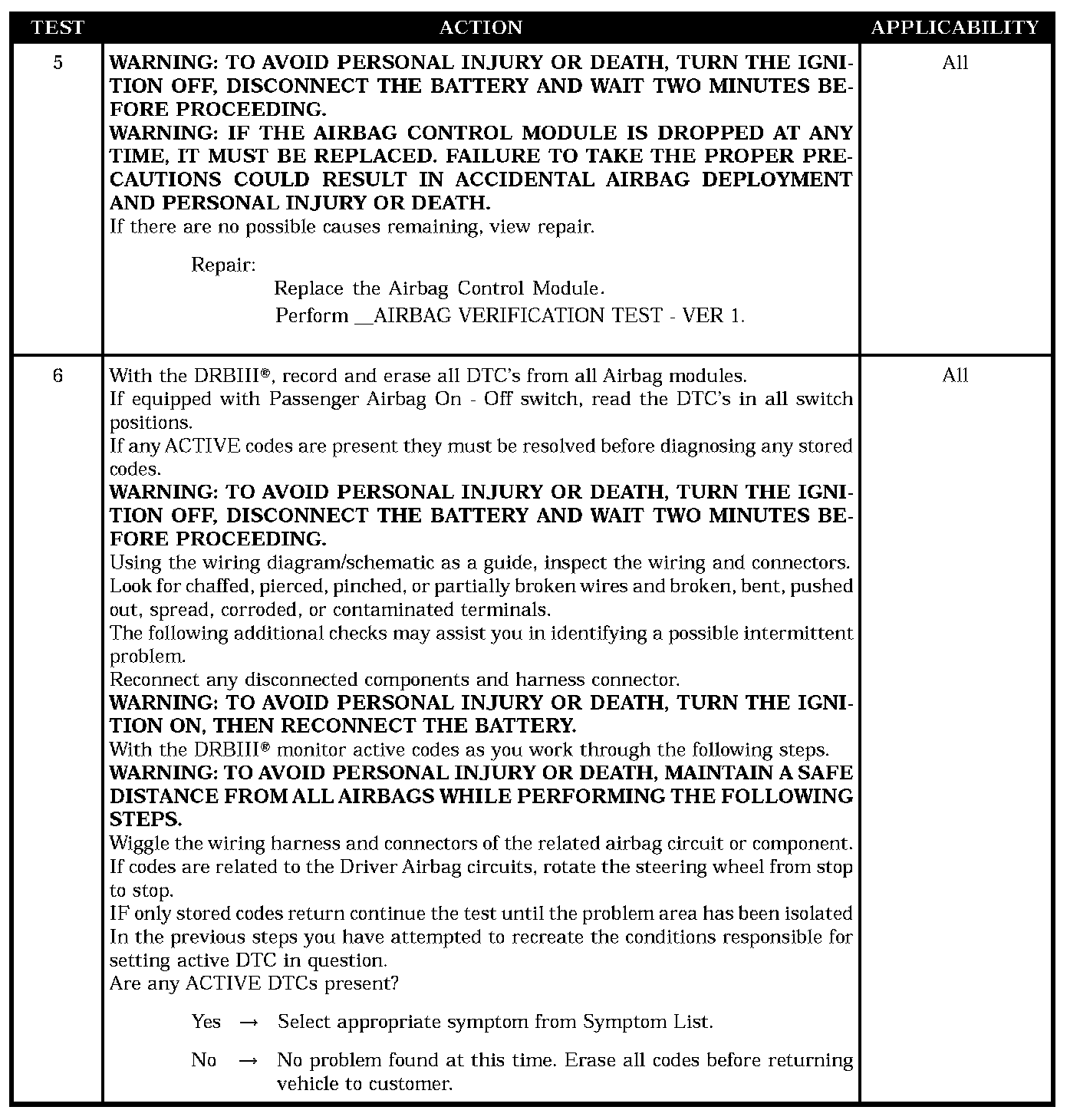

Test 5 - Test 6:

SYMPTOM
DRIVER SQUIB 2 SHORT TO GROUND

WHEN MONITORED
With the ignition on, the ACM monitors the resistance of the Driver Squib 2 circuits.

SET CONDITION
The ACM detects a short to ground in either Driver Squib 2 circuits.

POSSIBLE CAUSES
- Driver airbag squib 2 short to ground
- Clockspring, driver squib 2 short to ground
- Driver squib 2 line 1 or line 2 short to ground
- ACM, driver squib 2 short to ground
- Stored code or intermittent condition
- ACtive code present
