Driver Squib 1 Shorted to Ground

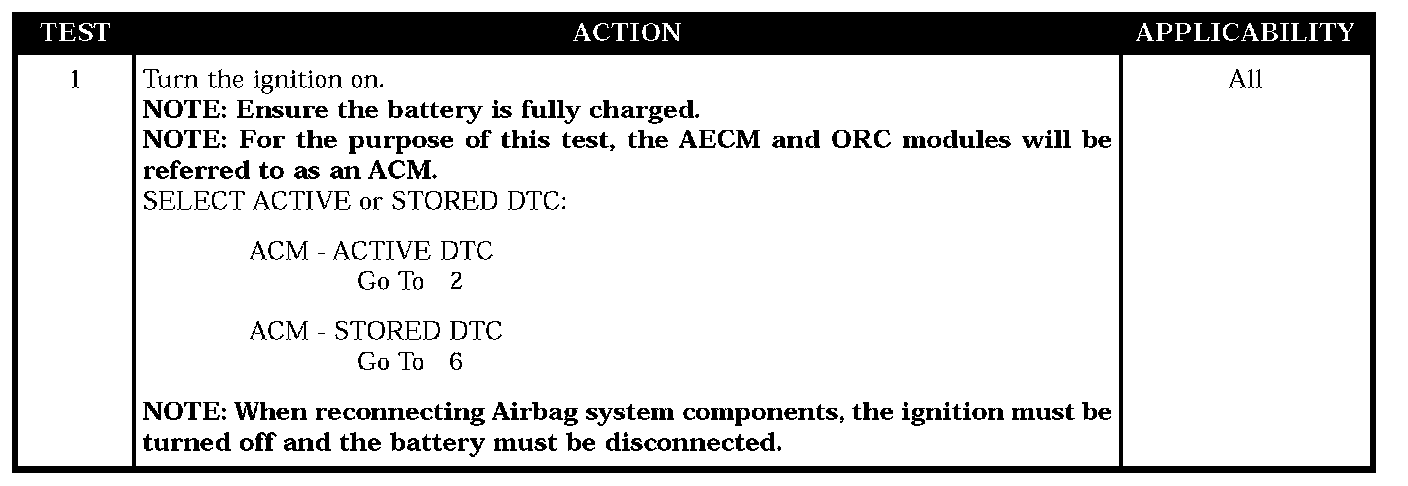

Test 1:

Test 2 - Test 4:

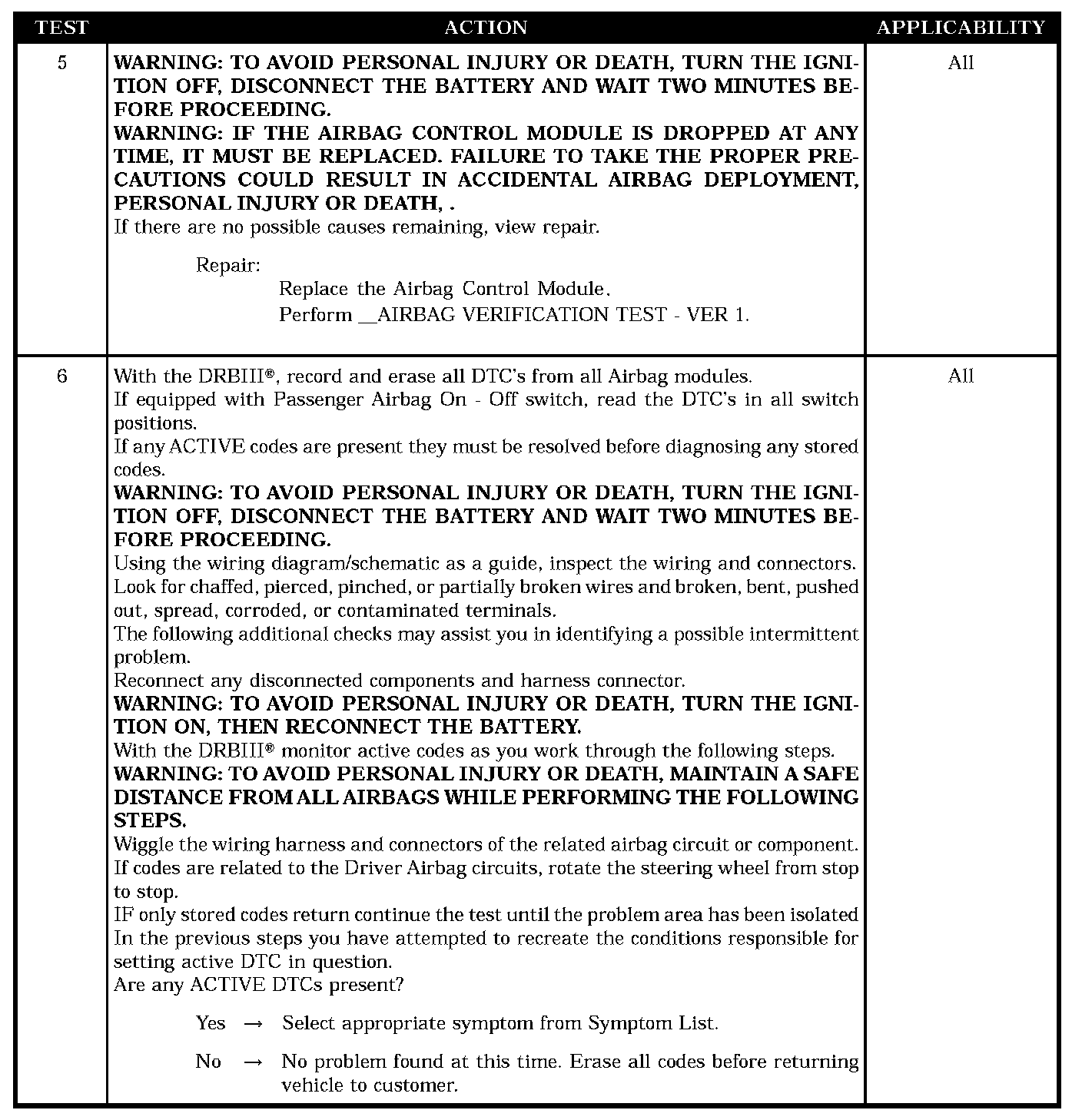

Test 5 - Test 6:

SYMPTOM
DRIVER SQUIB 1 SHORT TO GROUND

WHEN MONITORED
With the ignition on, the ACM monitors the resistance of the Driver Squib 1 circuits.

SET CONDITION
When the ACM detects a short to ground in either Driver Squib 1 circuits.

POSSIBLE CAUSES
- Driver airbag squib 1 short to ground
- Clockspring, driver squib 1 short to ground
- Driver squib 1 line 1 or line 2 shorted to ground
- ACM, driver squib 1 short to ground
- Stored code or intermittent condition
- Active code present
