RKE Unable to Enter Program Mode

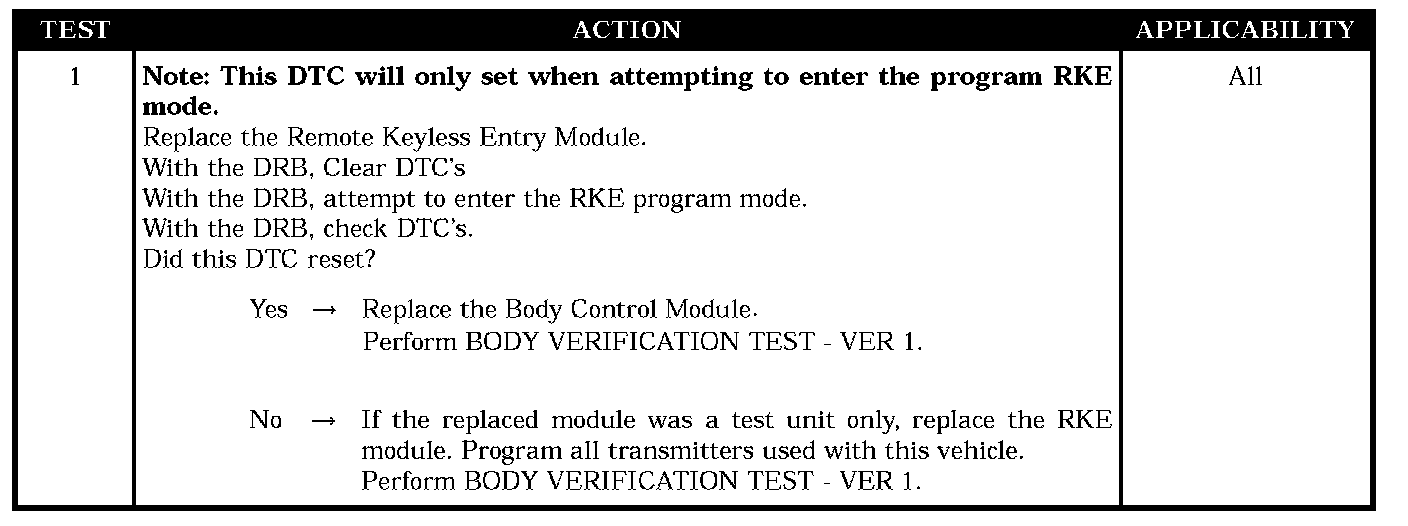

Test 1:

SYMPTOM
RKE UNABLE TO ENTER PROGRAM MODE

WHEN MONITORED
While attempting to program RKE.

SET CONDITION
Lack of response from the RKE module while attempting to put it in program mode.

POSSIBLE CAUSES
- Door unlock relay output circuit short to ground
- Body control module - unlock relay
