Left Rear Door Ajar Circuit Open

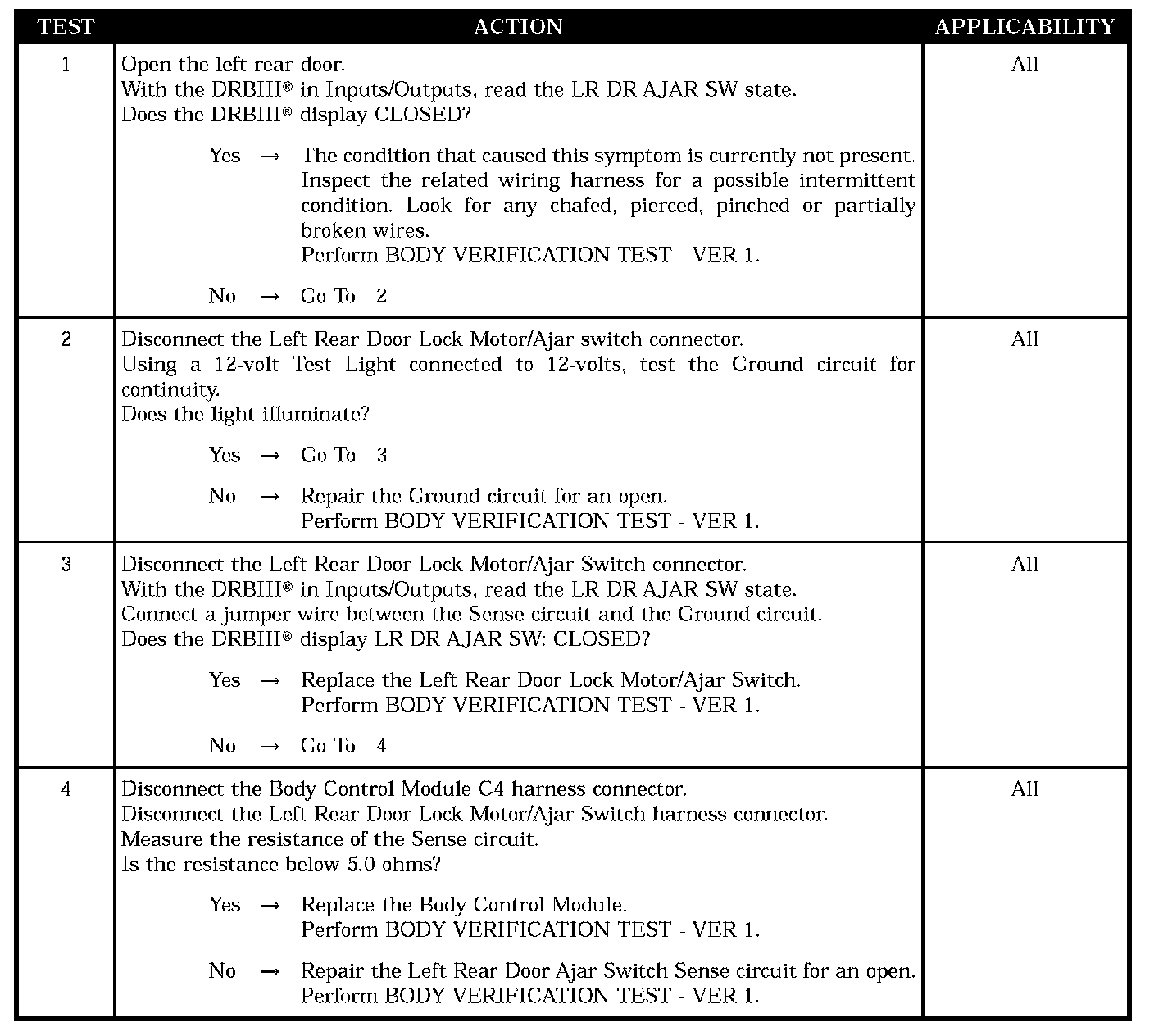

Test 1 - Test 4:
SYMPTOM
LEFT REAR DOOR AJAR CIRCUIT OPEN
POSSIBLE CAUSES
- Intermittent condition
- Left rear door ajar switch ground circuit open
- Left rear door lock motor/ajar switch
- Left rear door ajar switch sense circuit open
- Body control module internal malfunction
