Power Top Switch Stuck

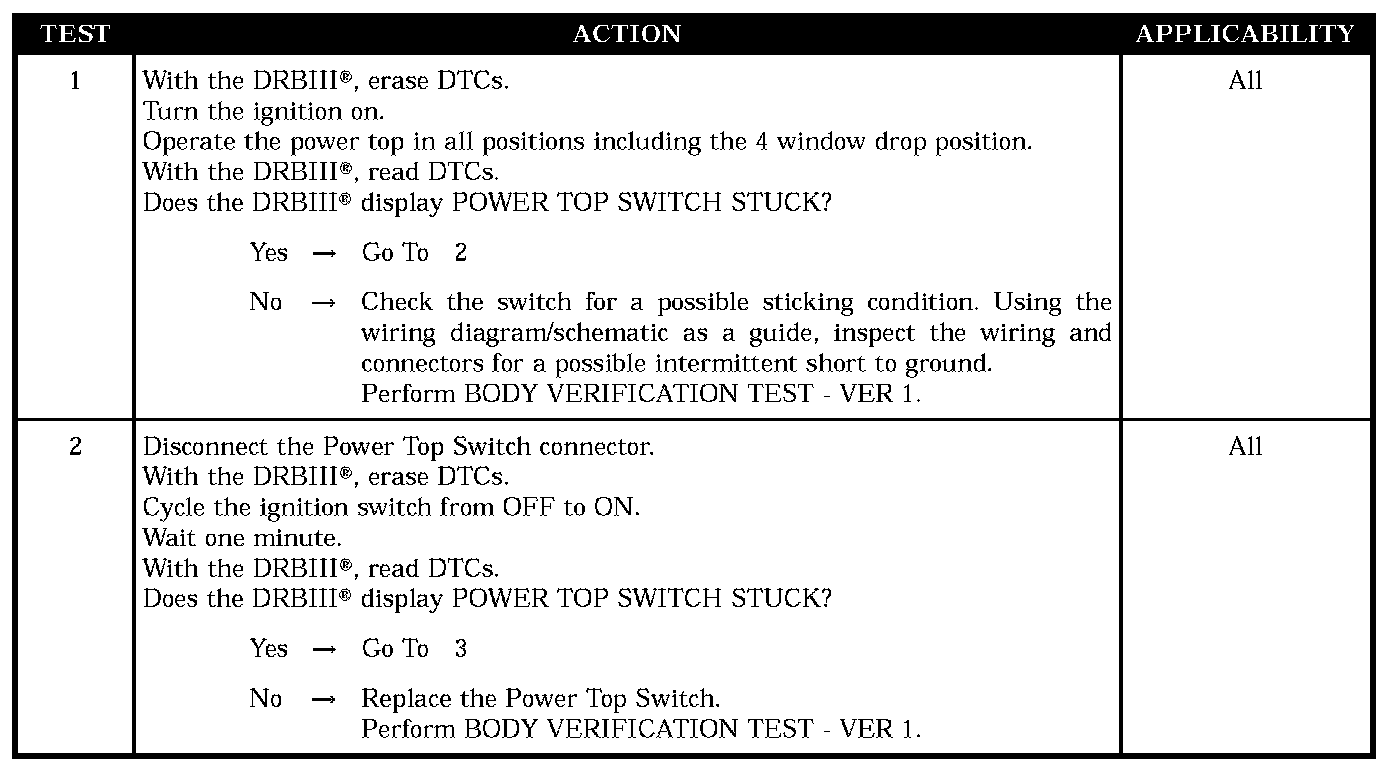

Test 1 - Test 2:

Test 3 - Test 4:

SYMPTOM
POWER TOP SWITCH STUCK

WHEN MONITORED
Whenever the ignition is on.

SET CONDITION
Normal operation of this switch consists of pressing it for only a few seconds. If the BCM detects the switch stuck in a depressed condition for more than 28 seconds, this code will set and the BCM will ignore the input until the condition is corrected.

POSSIBLE CAUSES
- DTC present
- Power top switch stuck
- Convertible top switch mux wire short to ground
- Body control module - convertible top switch MUX
