No Response From TCM (Transmission Control Module)

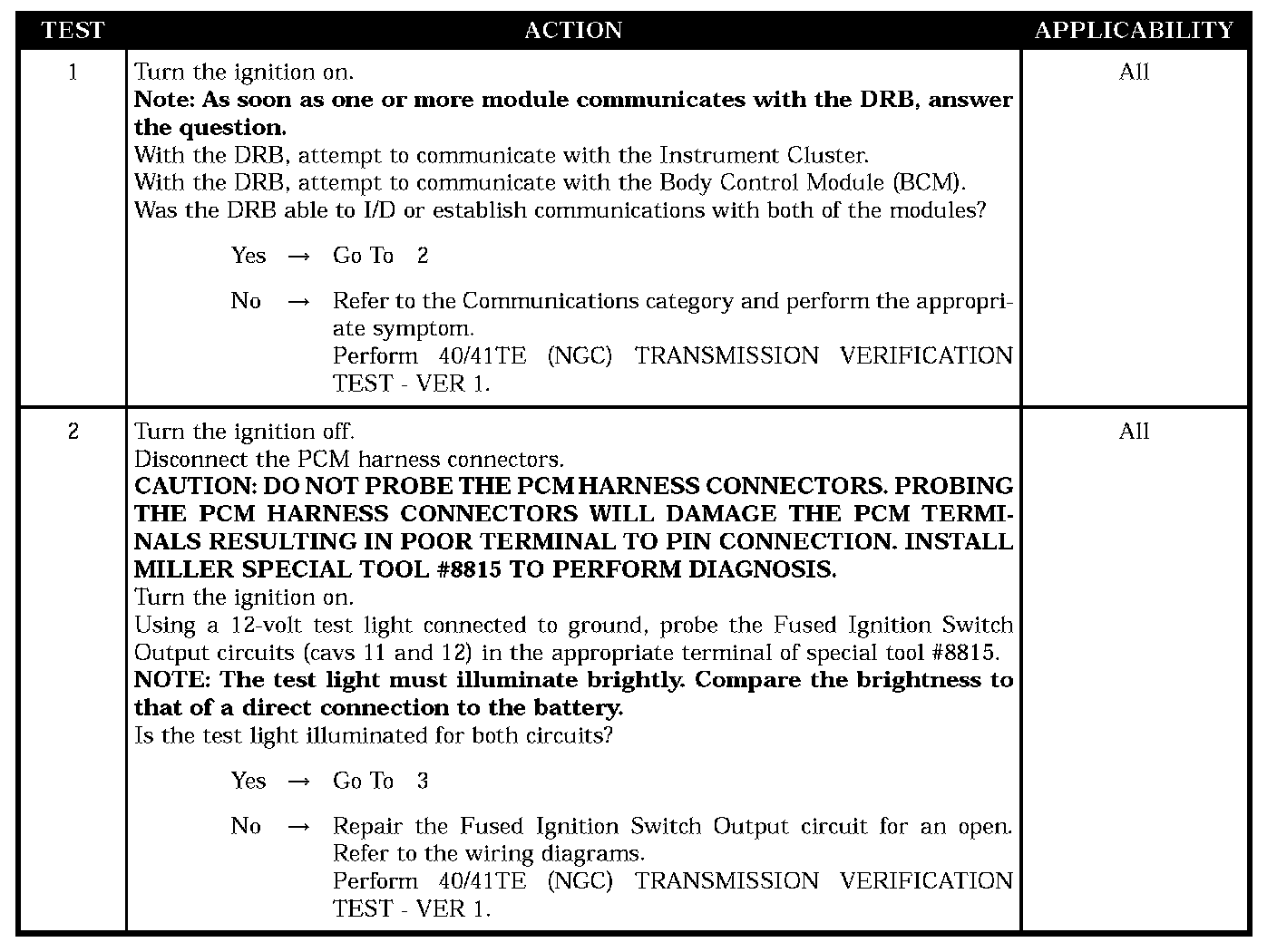

Test 1 - Test 2:

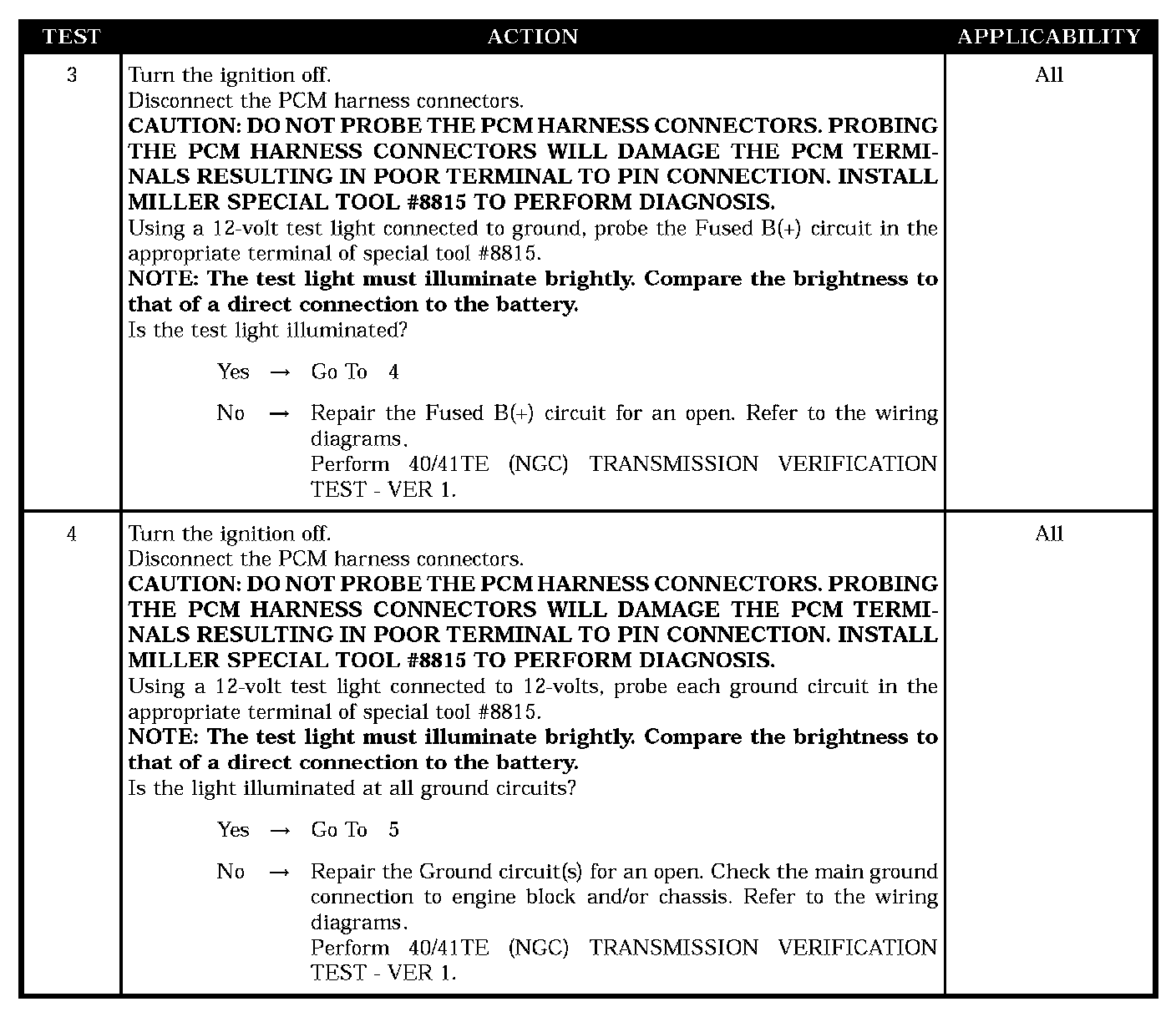

Test 3 - Test 4:

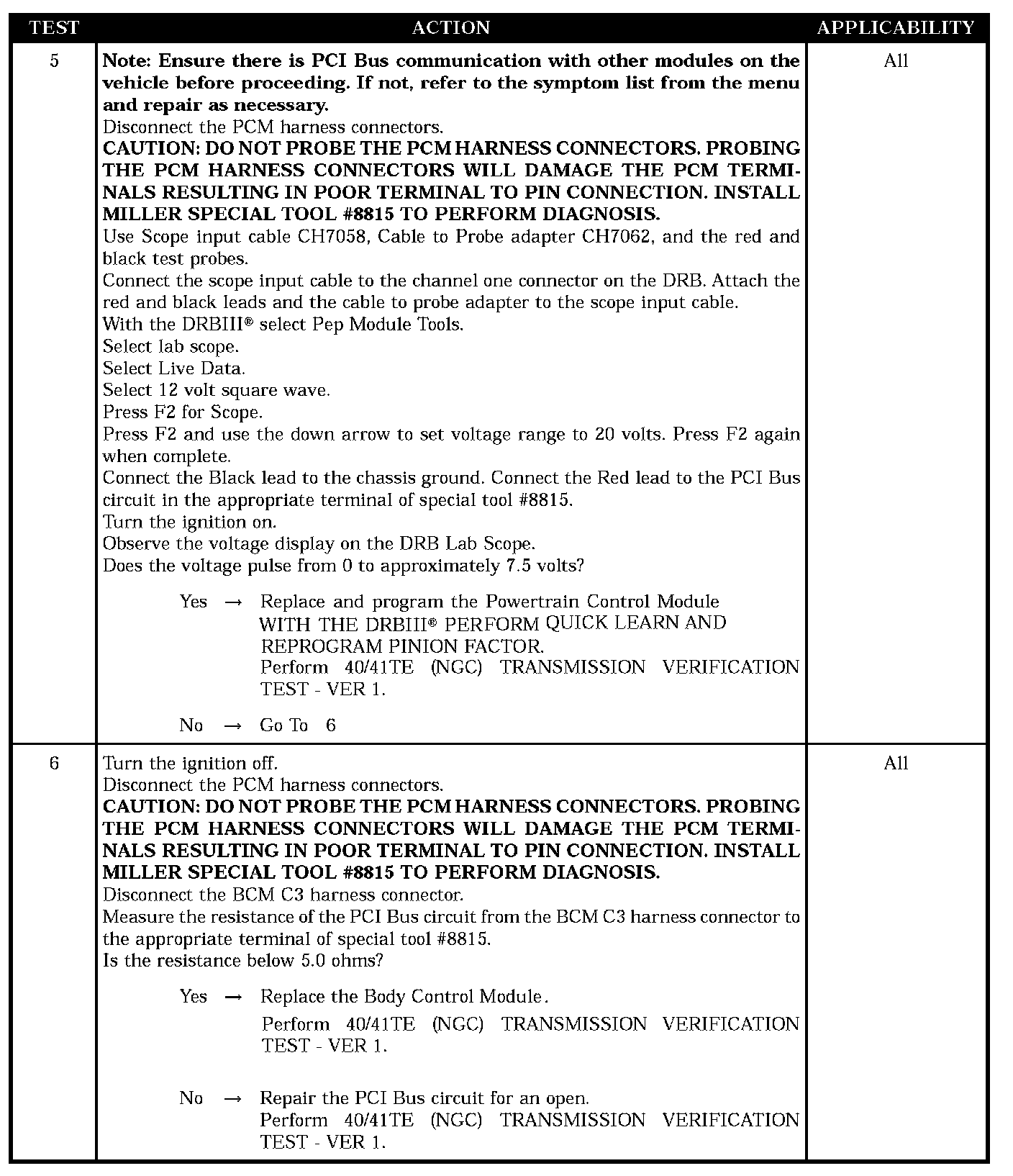

Test 5 - Test 6:

SYMPTOM
NO RESPONSE FROM TRANSMISSION CONTROL MODULE

POSSIBLE CAUSES
- No response from transmission control module
- Fused ignition switch output circuit open
- Fused B(+) circuit open
- Ground circuit(s) open
- Powertrain control module
- PCI bus circuit open
- Body control module
